ZWE211L-GEXNBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

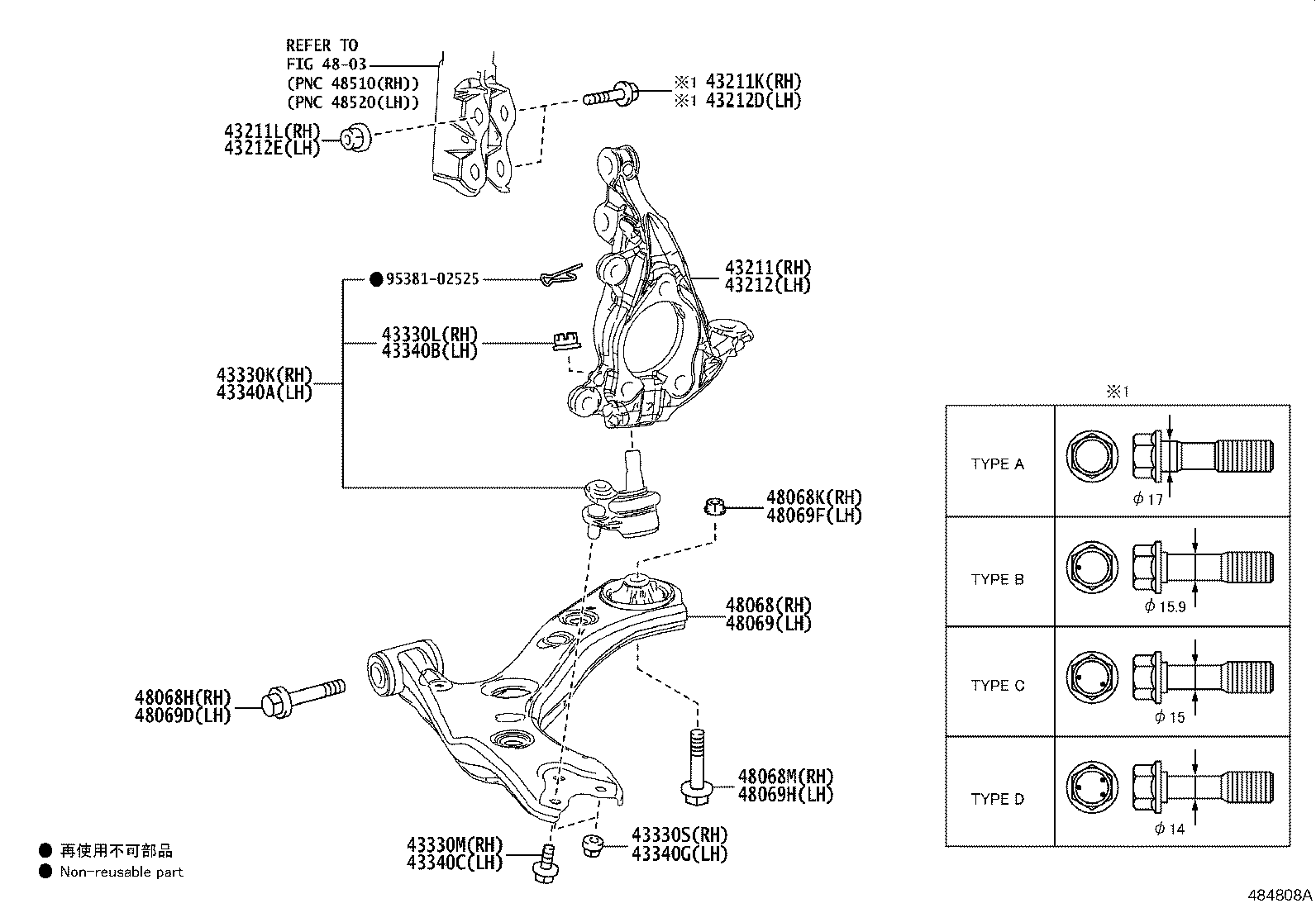

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-02480

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=14,TYPE D:REFER ILLUST.

 1
90105-17020

MZEA12,ZRE21#,ZWE211

OD=17,TYPE A:REFER ILLUST.

 2
90105-17010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=15,TYPE C:REFER ILLUST.

 1
90105-17021

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
43212 - KNUCKLE, STEERING, LH
43212-02480

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17021

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=17,TYPE A:REFER ILLUST.

 2
90105-17020

MZEA12,ZRE21#,ZWE211

OD=17,TYPE A:REFER ILLUST.

 2
90105-17011

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

OD=14,TYPE D:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09B21

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
43330-09B20

MZEA12,ZRE21#,ZWE211

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12407

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09B20

MZEA12,ZRE21#,ZWE211

 1
43330-09B21

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12407

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-02390

MZEA12,ZRE21#,ZWE211..GCC,TAIW

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16091

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90179-14068

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14180

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-02390

MZEA12,ZRE21#,ZWE211..GCC,TAIW

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16091

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90179-14068

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14180

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
Common parts
95381-02525
Linked diagrams
4803
