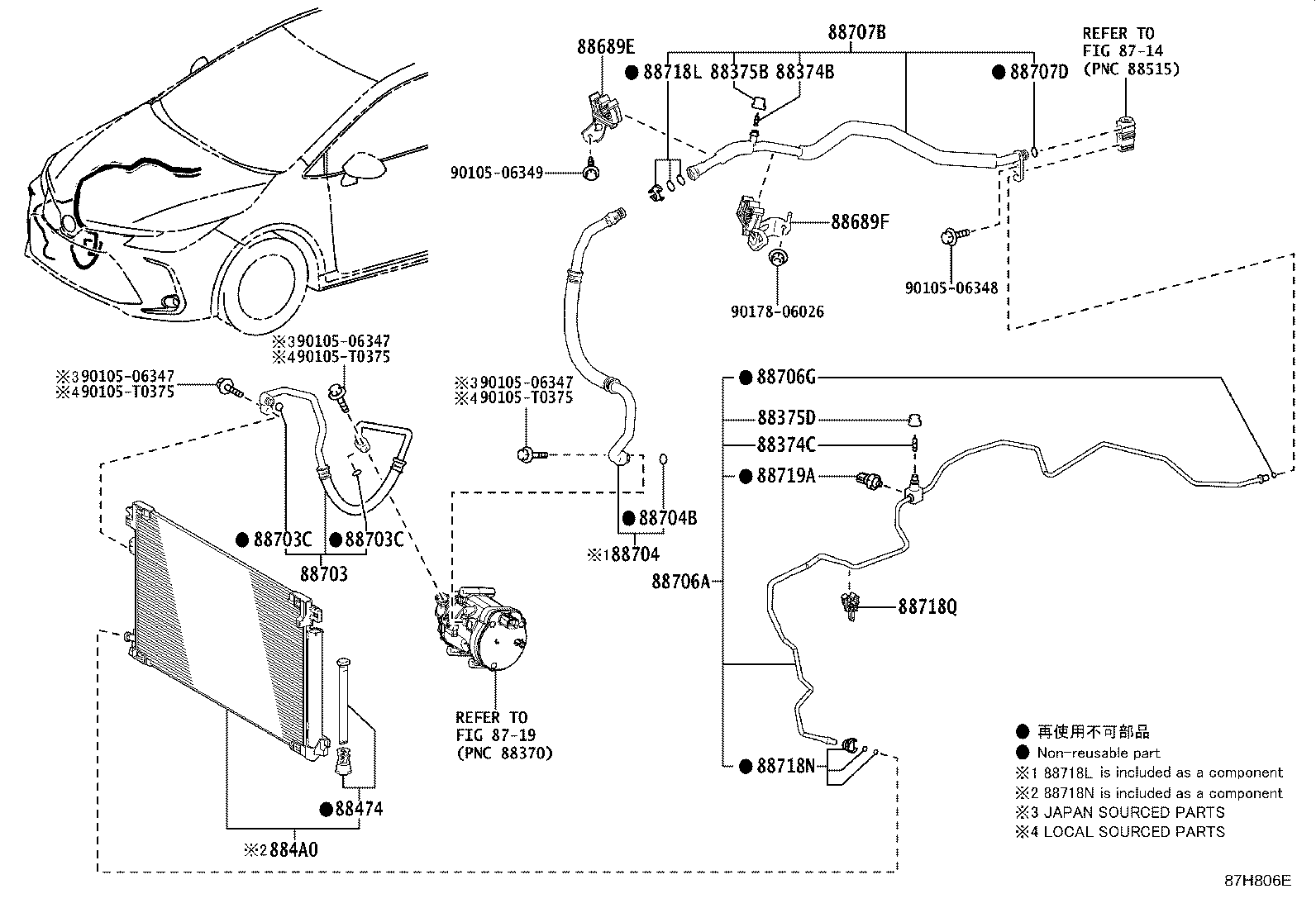

ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis
(1904- )ZWE211..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 88460-10320 |
ZWE211..E;ZWE211..MA |
1 | ||
| 884A0-02170 |
ZWE211..GCC,TAIW |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-F4080 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88688-02D40 |
ZWE211..GCC,TAIW |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-02D50 |
ZWE211..GCC,TAIW |
1 | ||
| 88688-F4090 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-F4050 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88703-02D50 |
ZWE211..GCC,TAIW |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=10.8,OD=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-02D70 |
ZWE211..GCC,TAIW |
1 | ||
| 88704-F4050 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=13.4,OD=18.2 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88710-F4110 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88710-02F30 |
ZWE211..GCC,TAIW |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW ID=6.7,OD=10.3 |
1 | ||
| 88707B - TUBE SUB-ASSY, SUCTION, B | ||||
| 88707-02640 |
ZWE211..GCC,TAIW |
1 | ||
| 88707-F4050 |
ZWE211..E;ZWE211..MA |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14121 |
ZRE211,ZWE211..GCC,TAIW ID=13.4,OD=18.2 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-02B00 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90105-T0375 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
