Toyota Corolla/altis ZWE211 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02670	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
55084-02680	ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW)	04/2019 - 12/2999	1
55084-02410	MZEA1#,ZRE210,ZWE211..D..GCC	04/2019 - 12/2999	1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02250	ZWE211..E	08/2019 - 12/2021	1
55085-02290	MZEA1#,ZRE210,ZWE211..D..GCC	04/2019 - 12/2999	1
55085-02250	ZWE211..G;ZWE211..GEN;ZRE210..GEN,TH;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
55085-02240	ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW)	04/2019 - 12/2999	1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-02640	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
55086-02650	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
55950G - NOZZLE ASSY, DEFROSTER
55950-02510	MZEA1#,ZRE210,ZWE211..D..GCC	04/2019 - 12/2999	1
55950-02440	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
55950-02450	ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW)	04/2019 - 12/2999	1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02340	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
55990-02350	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
58861B - DUCT, CONSOLE BOX, NO.1
58861-02050	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
58861-02070	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
58862B - DUCT, CONSOLE BOX, NO.2
58862-02070	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
58862-02090	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-02670	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87211-02650	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
87211A - DUCT, AIR, NO.2
87211-02660	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
87211-02680	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87220 - DUCT ASSY, AIR
87220-02401	ZWE211..E;ZWE211..MA	02/2020 - 12/2021	1
87220-02410	MZEA12,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2019	1
87220-02411	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	01/2020 - 12/2999	1
Common parts
90119-06951
90119-T0404
90159-60431
90159-T0014
90167-T0012
90178-T0007
90179-06274
90467-05161C9
90467-T0002C0
93568-55014

Part #	Description	Period	Qty

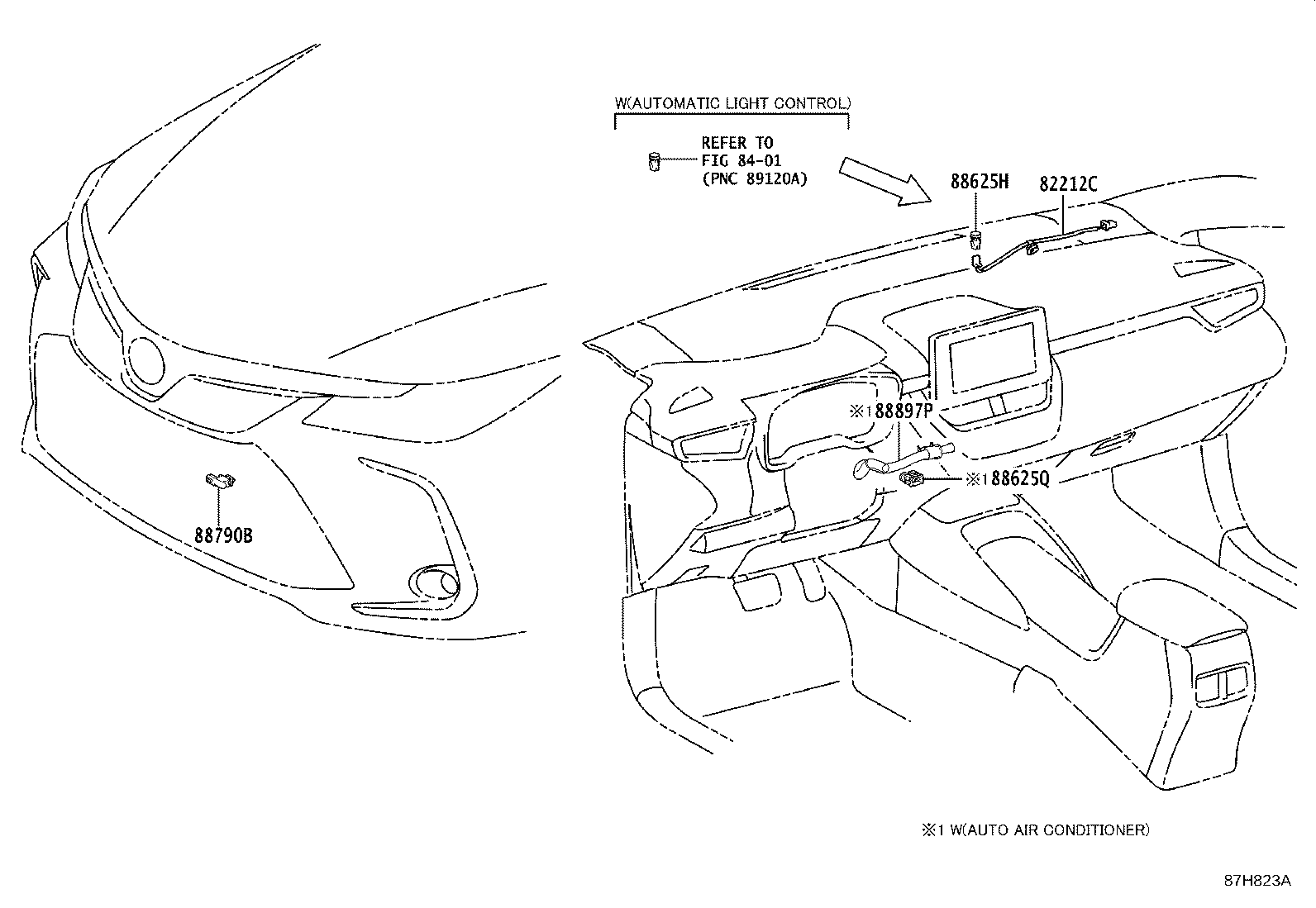

82212C - HARNESS, AIR CONDITIONER NO.1
82212-02660	ZWE211..E	08/2019 - 12/2021	1
82212-02660	ZWE211..G LOW GRADE PACKAGE	08/2019 - 12/2021	1
82212-12150	ZWE211..GCC	04/2019 - 12/2999	1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130	ZWE211..GCC;ZRE210..G..(PHL,TH)	04/2019 - 12/2999	1
88625-52130	ZWE211..G LOW GRADE PACKAGE	08/2019 - 12/2021	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88790B - THERMISTOR ASSY
88790-28100	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
88897P - ASPIRATOR
88505-02250	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
88505-02260	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
Linked diagrams
8401

ZWE211L-GEXDBV (2019)

ILLUST NO. 2 OF 3(1904- )LHD

ILLUST NO. 3 OF 3(1904- )LHD
