ZWE211L-GEXDBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )GCC,TAIW

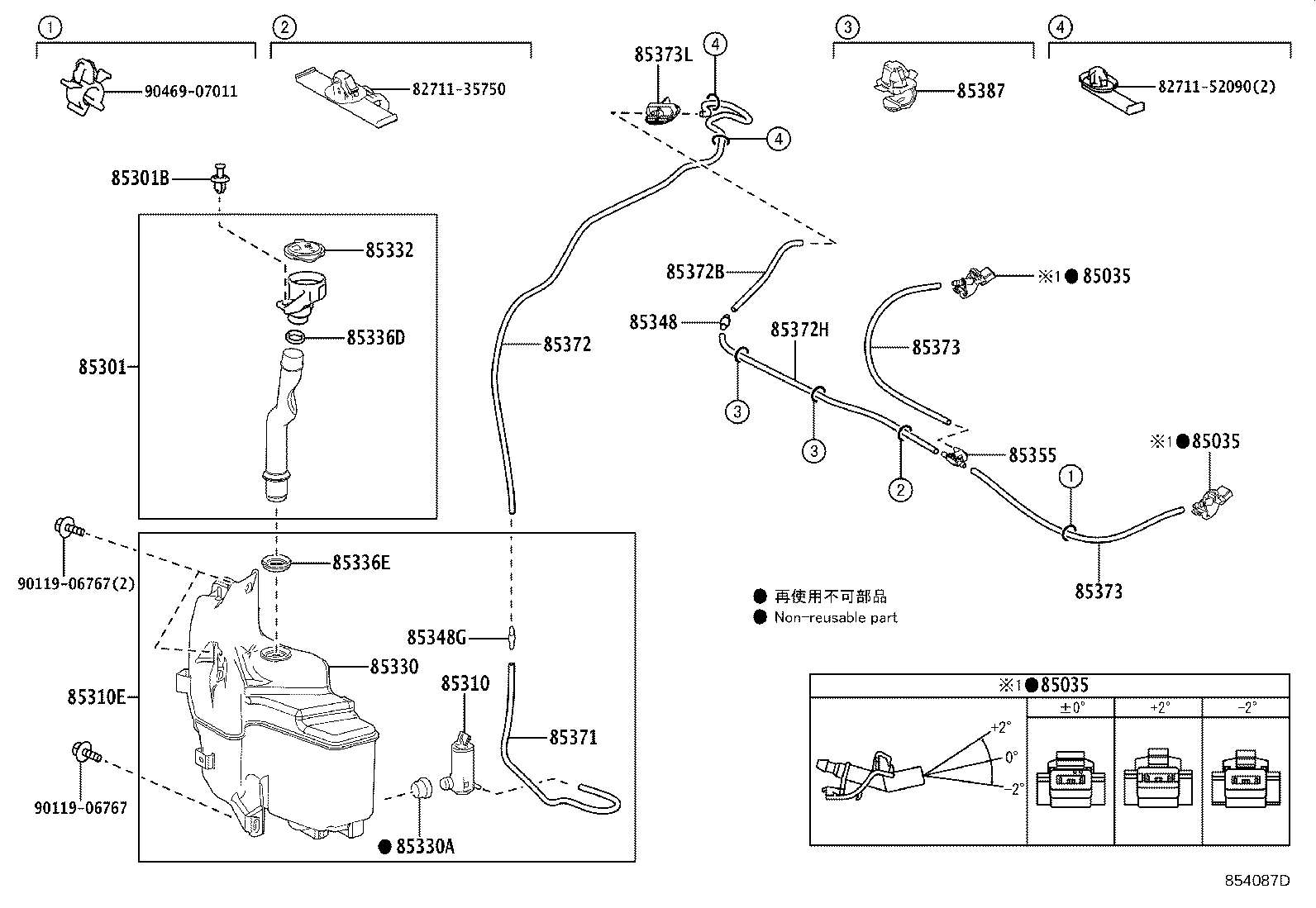

Click highlighted areas on diagram

diagram 8271135750 8271152090 85035 85035 85035 85301 85301B 85310 85310E 85330 85330A 85332 85336D 85336E 85348 85348G 85355 85371 85372 85372B 85372H 85373 85373 85373L 85387 9011906767 9011906767 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE 0

 2
85381-33080

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE -2

 2
85381-12440

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE 0

 2
85381-33080

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE -2

 2
85381-12440

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE 0

 2
85381-33080

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE -2

 2
85381-12440

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

ANGLE +2

 2
85301 - INLET SUB-ASSY, WASHER
85301-02240

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85301B - CLIP, WASHER
90467-07214

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33070

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85310E - JAR & PUMP ASSY, WASHER
85310-02750

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-02750

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-42320

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

*H,L=500

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62176

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

L=1090

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

*H,L=280

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

*H,L=510

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

*H,L=425

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

*H,L=425

 2
85373L - GROMMET, WASHER
85373-12050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85371-0K020

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

(L)

 2
85371-12040

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

(J)

 2
Common parts
82711-35750
82711-52090
90119-06767
90469-07011
