ZWE211L-GEXDBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )GCC,TAIW

Click highlighted areas on diagram

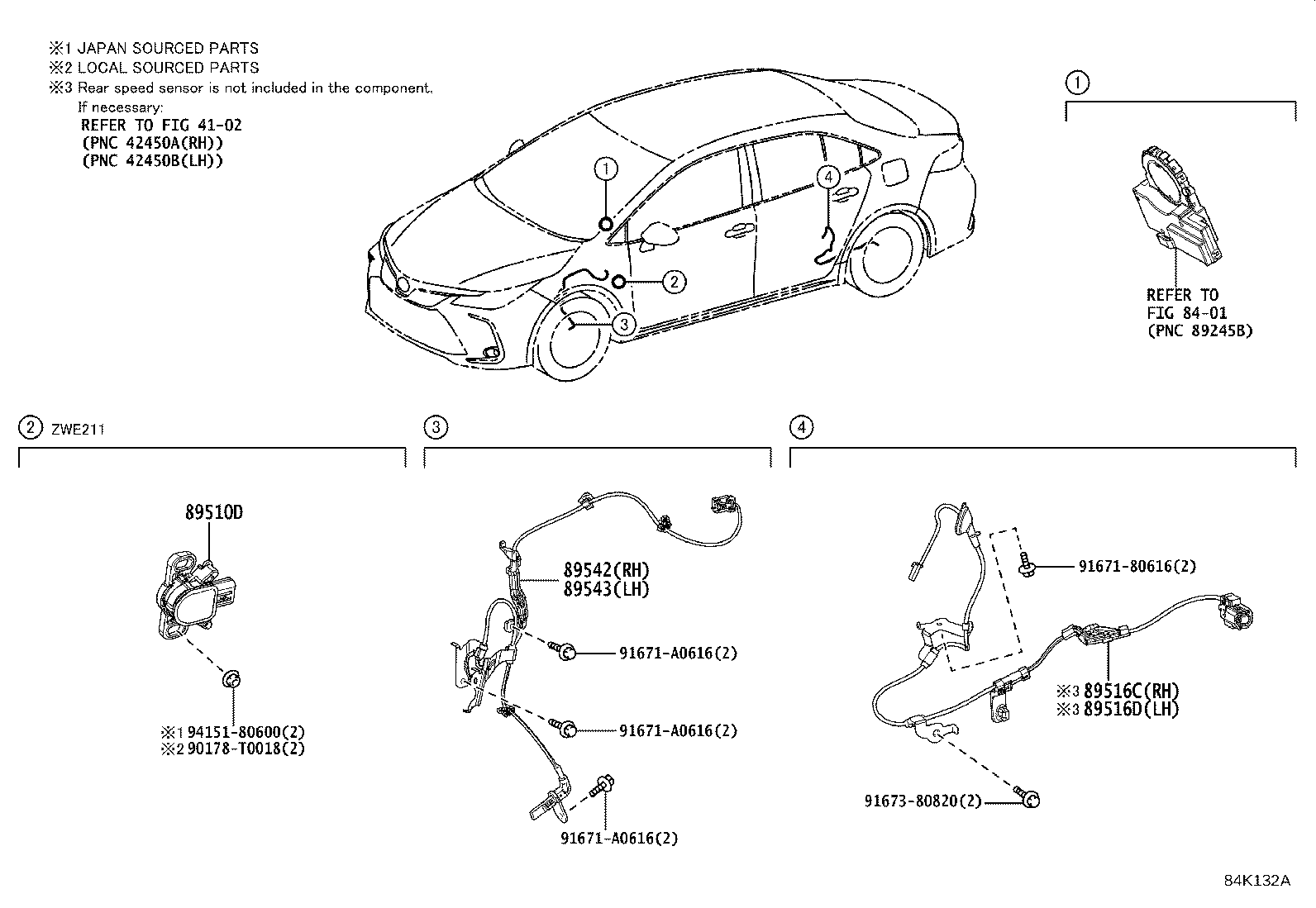

diagram 4102 8401 89510D 89516C 89516D 89542 89543 90178T0018 9167180616 91671A0616 91671A0616 91671A0616 9167380820 9415180600
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47030

ZWE211..E;ZWE211..MA

 1
89510-47040

ZWE211..LHD

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-47110

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-47120

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02190

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02190

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
Common parts
90178-T0018
91671-80616
91671-A0616
91673-80820
94151-80600
Linked diagrams
4102
8401
