ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis

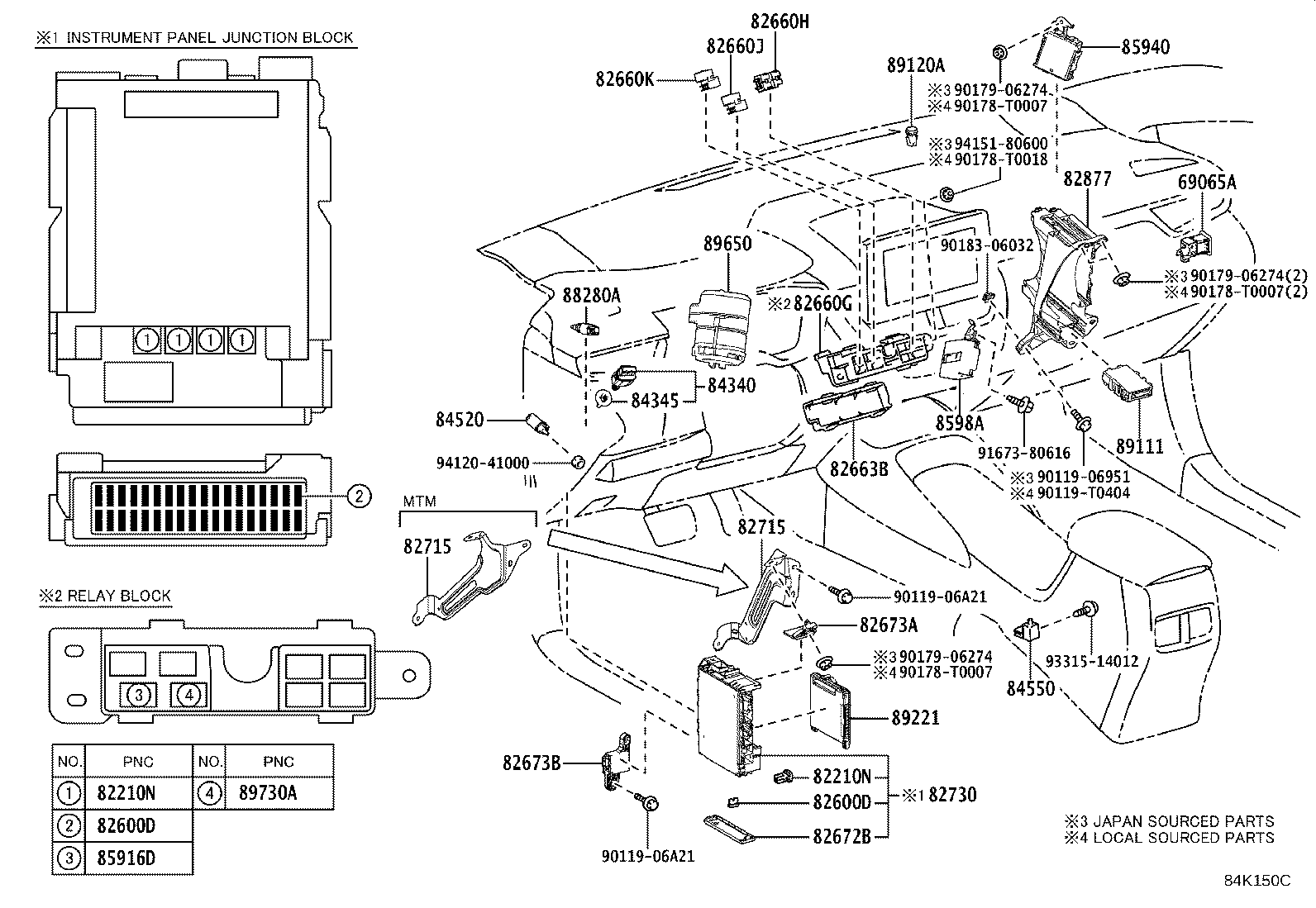

ILLUST NO. 4 OF 9(1904- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-12150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-02150 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4090 |
ZWE211..E;ZWE211..MA |
1 | ||
| 82673-02280 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4100 |
ZWE211..E;ZWE211..MA |
1 | ||
| 82673-02290 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X60 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-12X60 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0Z160 |
ZWE211..(G,V)..TH;ZRE211..(D,E)..TAIW;ZWE211..GCC,GEN,IDN,PHL,SGP;MZEA1#,ZRE21#..CVT..(GCC,GEN,IDN,PHL,SGP,TH) |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-02070 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09380 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
ZRE211..E,G;ZWE211..V..TH;MZEA1#,ZRE210..N;ZRE210..CVT..(D,E,V)..(GEN,PHL);ZWE211..(N,V)..(GCC,GEN,IDN,PHL,TAIW) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12040 |
ZWE211..GCC,TAIW |
1 | ||
| 89111-02070 |
ZWE211..E;ZWE211..MA |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0Z680 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 89220-0Z680 |
ZWE211..E |
1 | ||
| 89220-0Z590 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12M30 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW JTEKT/DENSO |
1 | ||
| 89650-12K80 |
MZEA12,ZRE21#,ZWE211 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||

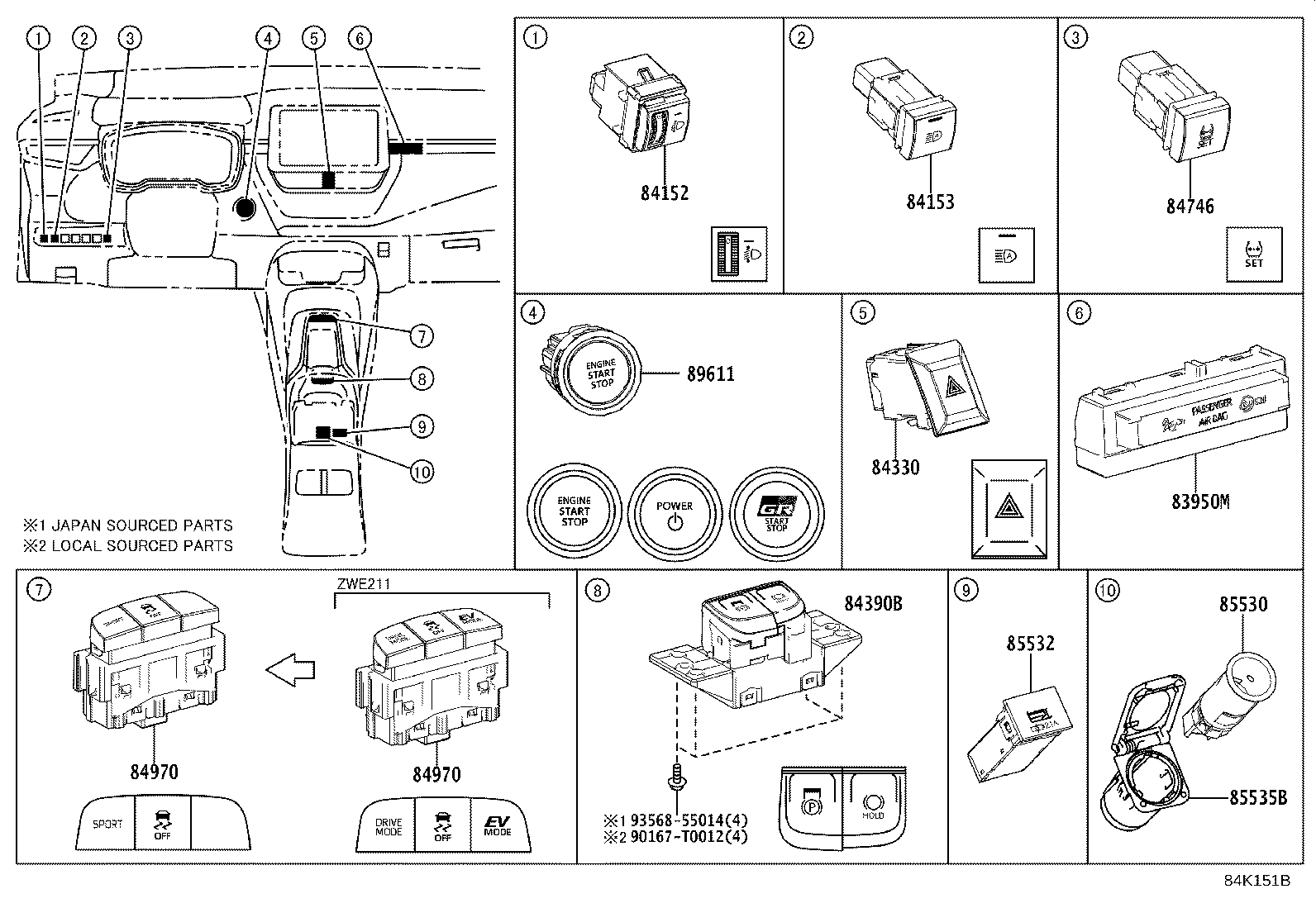

ILLUST NO. 5 OF 9(1904- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02150 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-02110 |
ZWE211..E |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-02050 |
ZWE211..N..GCC;MZEA1#,ZRE210..GCC;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..(D,V)..(GCC,IDN,TAIW,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02520 |
ZWE211..E;ZWE211..MA |
1 | ||
| 84970-02570 |
ZWE211..GCC,TAIW |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02520 |
ZWE211..E;ZWE211..MA |
1 | ||
| 84970-02570 |
ZWE211..GCC,TAIW |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA1#,ZRE210,ZWE211..D..GCC UP GRADE PACKAGE |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85535-12090C0 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 89611-02270 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||
