Toyota Corolla/altis ZWE211 WIRING & CLAMP

ZWE211L-GEXDBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF12(1904- )ZWE211..LHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-F2V50	ZWE211..E	08/2019 - 06/2020	1
82111-F2V50	ZWE211..G LOW GRADE PACKAGE	08/2019 - 06/2020	1
82111-F2X00	ZWE211..GCC	04/2019 - 11/2020	1
82111-F2V51	ZWE211..E	07/2020 - 12/2021	1
82111-F2V51	ZWE211..G LOW GRADE PACKAGE	07/2020 - 01/2022	1
82111-F2X01	ZWE211..GCC	12/2020 - 12/2999	1
821H2 - WIRE, HV AIR CONDITIONER
821H2-47010	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
821H2-47010	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
82286A - WIRE, EARTH, NO.2
82286-02120	ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-47C20	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
82815-47C20	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82816C - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-47C80	ZWE211..LHD	04/2019 - 12/2999	1
82815-47C90	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82816D - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-12L50	ZWE211..LHD	04/2019 - 12/2999	1
82815-47D00	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82816F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-47D30	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82815-47D20	ZWE211..LHD	04/2019 - 12/2999	1
82816G - COVER, WIRING HARNESS PROTECTOR, NO.5
82815-12L60	ZWE211..LHD	04/2019 - 12/2999	1
82815-47D40	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82816H - COVER, WIRING HARNESS PROTECTOR, NO.6
82815-47880	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
82815-47880	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-47N40	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
82817-47N40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-47N50	ZWE211..LHD	04/2019 - 12/2999	1
82817-47N60	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-47N70	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82817-12Z30	ZWE211..LHD	04/2019 - 12/2999	1
82818H - PROTECTOR, WIRING HARNESS, NO.9
82817-47N90	ZWE211..LHD	04/2019 - 12/2999	1
82817-47P00	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82818J - PROTECTOR, WIRING HARNESS, NO.10
82817-12Z40	ZWE211..LHD	04/2019 - 12/2999	1
82817-47P10	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
82818M - PROTECTOR, WIRING HARNESS, NO.13
82817-47N30	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82817-47N30	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
82821H - COVER, CONNECTOR
82821-30650	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA12,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-02080	ZWE211..G LOW GRADE PACKAGE	08/2019 - 12/2020	2
82824-02080	ZWE211..G;ZWE211..GEN	08/2019 - 12/2999	2
Common parts
90119-06951
90119-06A06
90119-06A24
90119-T0313
90119-T0342
90119-T0404
90178-T0007
90179-06274
91671-80820
91673-80620
Linked diagrams
8401
8417

ILLUST NO. 3 OF12(1904- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-F2Q60	ZWE211..D	04/2019 - 08/2021	1
82141-F2Q50	ZWE211..D AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
82145-F2G50	ZWE211..E	08/2019 - 12/2021	1
82141-F2P71	ZWE211..G;ZWE211..GEN	01/2021 - 01/2022	1
82141-F2P50	ZWE211..G LOW GRADE PACKAGE	08/2019 - 01/2022	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82140-02610	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-02K30	ZRE211..TAIW;ZRE210,ZWE211..LHD..V	04/2019 - 12/2999	1
82142-02K20	ZWE211..G LOW GRADE PACKAGE	08/2019 - 12/2020	1
82666B - HOLDER, CONNECTOR NO.3
82666-12670	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12680	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-26180	MZEA1#,ZRE21#,ZWE211..LHD..CVT	04/2019 - 12/2999	1
Common parts
90119-06951
90119-T0404
90159-60613
90159-70004
90159-T0037
91673-80616
Linked diagrams
8401

ILLUST NO. 7 OF12(1904- )LHD

Click highlighted areas on diagram

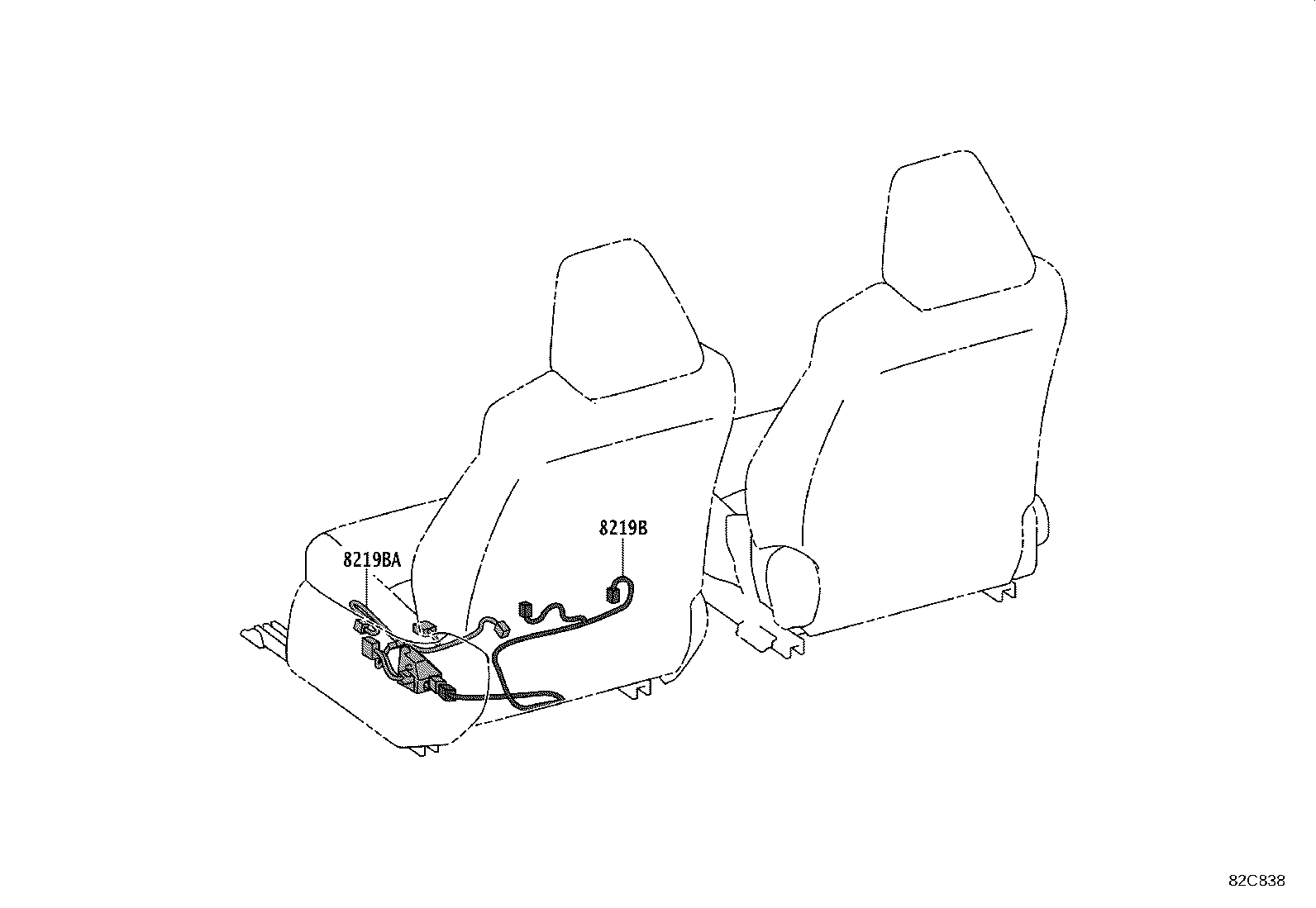

SEAT

Part #	Description	Period	Qty	Price
