ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis

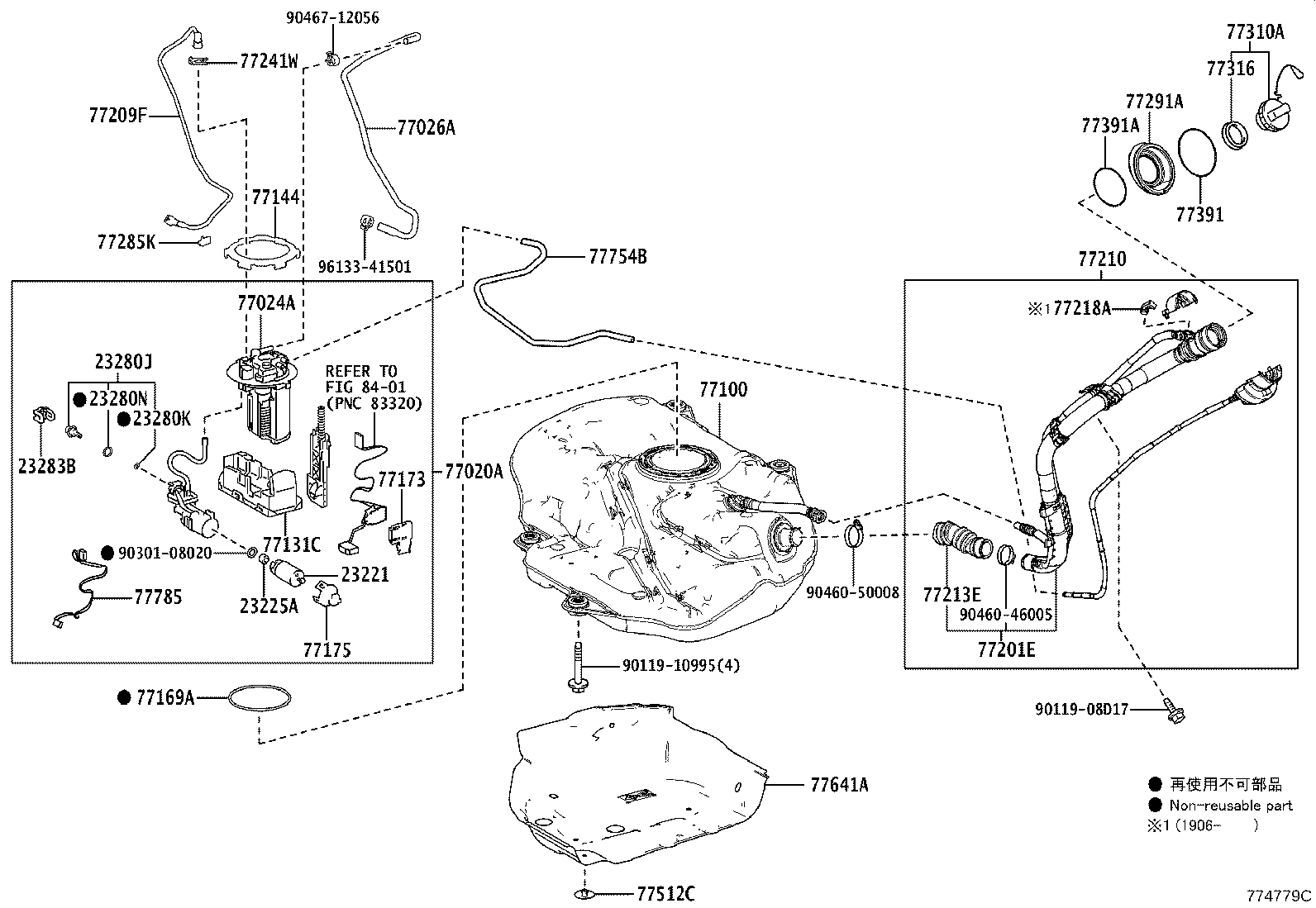

ILLUST NO. 1 OF 3(1904- )ZWE211..GCC,TAIW
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-47031 |
2ZRFXE..ZWE211..GCC,TAIW |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..GCC,TAIW;1ZRFAE,1ZRFE..ZRE210..CVT |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-10100 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77020-02A80 |
ZWE211..GCC,TAIW |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12390 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77024-10020 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4060 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77026-47040 |
ZWE211..GCC,TAIW |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02A60 |
ZWE211..GCC |
1 | ||
| 77001-F4060 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77103-12150 |
ZWE211..GCC,TAIW |
1 | ||
| 77103-10030 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02160 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12020 |
ZWE211..GCC,TAIW |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-78010 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77175-12040 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02660 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47100 |
ZWE211..GCC |
1 | ||
| 77209-F4070 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02742 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77210-02740 |
MZEA12,ZRE21#,ZWE211 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02160 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02140 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-06570 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77285-30350 |
ZWE211..GCC,TAIW |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02301 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02320 |
ZWE211..GCC,TAIW |
1 | ||
| 77641-F4050 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-02230 |
ZWE211..GCC,TAIW |
1 | ||
| 77754-F4050 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77785-12050 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||

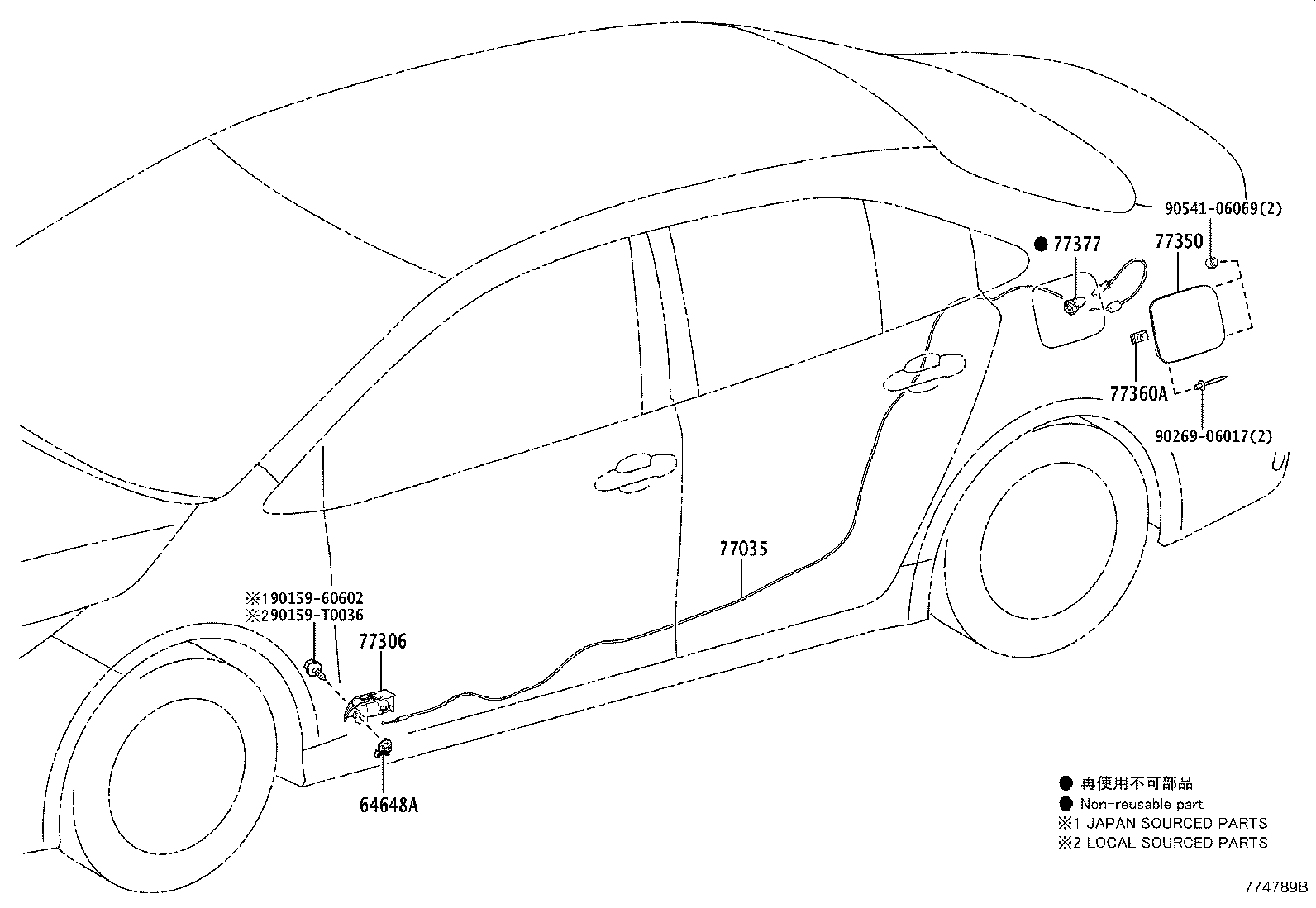

ILLUST NO. 3 OF 3(1904- )LHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02580 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77035-02590 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-02260 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 64606-02250 |
ZWE211..E;ZWE211..MA |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02260 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||
