ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis

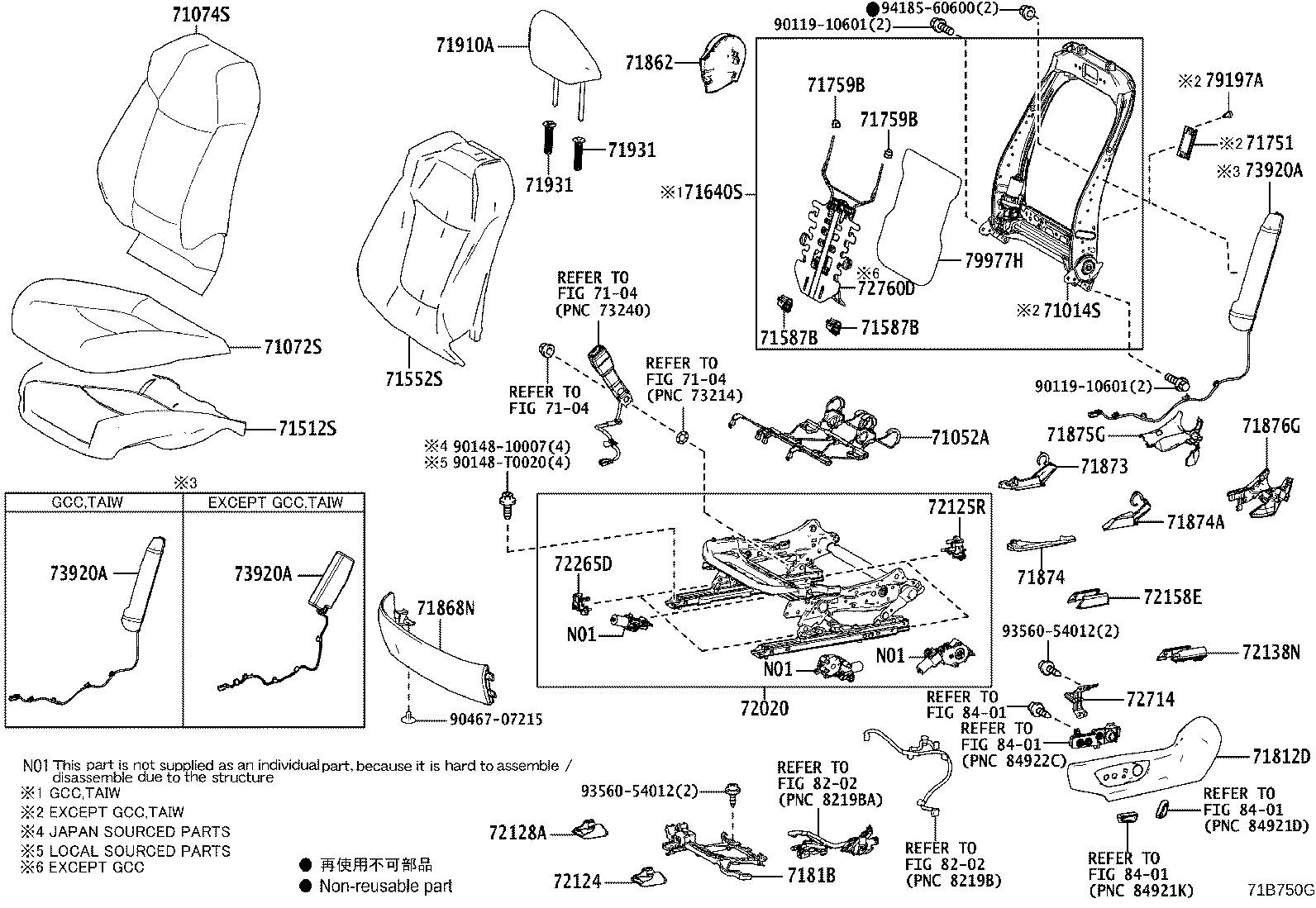

ILLUST NO. 1 OF 2(1904- )LHD
DRIVER SIDE,MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-06560 |
ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02400 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-06160 |
ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZN00C0 |
ZWE211..E FROMAGE,TRIM0# |
1 | ||
| 71072-0ZN50C3 |
ZWE211..G;ZWE211..GEN FROMAGE,TRIM0# |
1 | ||
| 71072-0ZU10C3 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/GRAY,TRIM1# |
1 | ||
| 71072-0ZU10C2 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/ORCHID BROWN,TRIM0# |
1 | ||
| 71072-0ZN00C1 |
ZWE211..E LT. GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2210A1 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71074-F2210B1 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71074-0ZU90E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
1 | ||
| 71074-0ZV30E3 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
1 | ||
| 71074-0ZU90B1 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
1 | ||
| 71074-F2211A1 |
MZEA1#,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71074-F2211B1 |
MZEA1#,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02300 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 71512-02D20 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71502-02300 |
ZWE211..E;ZWE211..MA |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D20 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71552-02C20 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02B90 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02B90C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71812-06620C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71812-06620C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-02030 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 7181B-F4020 |
ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH) |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71849-02080C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06370C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71862-02450C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71862-06370C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06430 |
ZWE211..E;ZWE211..MA |
1 | ||
| 71874-02330 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71873-06430 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-06550C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71876-06550C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71876-02290C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06540C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71876-02280C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71876-06540C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02T30B0 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02T30E0 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30B1 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02V90B0 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
2 | ||
| 71910-02V90A0 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
2 | ||
| 71910-02T50E2 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-02840 |
MZEA12,ZRE21#,ZWE211..D,E,G,N |
1 | ||
| 72020-06450 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 72020-06450 |
ZWE211..E;ZWE211..MA |
1 | ||
| 72020-02841 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-06090 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72125-06100 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72125-02100 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72125-06090 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-06090 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72125-06100 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72125-02100 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72125-06090 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-02390 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02190 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
2 | ||
| 72211-06150 |
ZWE211..G;ZWE211..GEN,IDN,PHL;ZRE21#..CVT..(E,V)..(GEN,MA,PHL) |
1 | ||
| 72211-06150 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06060 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72265-47010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72265-06040 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72265-06060 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06060 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72265-47010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72265-06040 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72265-06060 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-02120C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-06020 |
ZWE211..E |
1 | ||
| 72498-06020 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 72498-02040 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06140C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 72526-02300C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 72526-06140C0 |
ZWE211..G;ZWE211..GEN;ZRE21#..CVT..(E,G)..(MA,PHL) BLACK,TRIM0#,2# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-02100C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 72551-06020C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 72551-06020C0 |
ZWE211..G;ZWE211..GEN;ZRE21#..CVT..(E,G)..(MA,PHL) BLACK,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-T0020 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

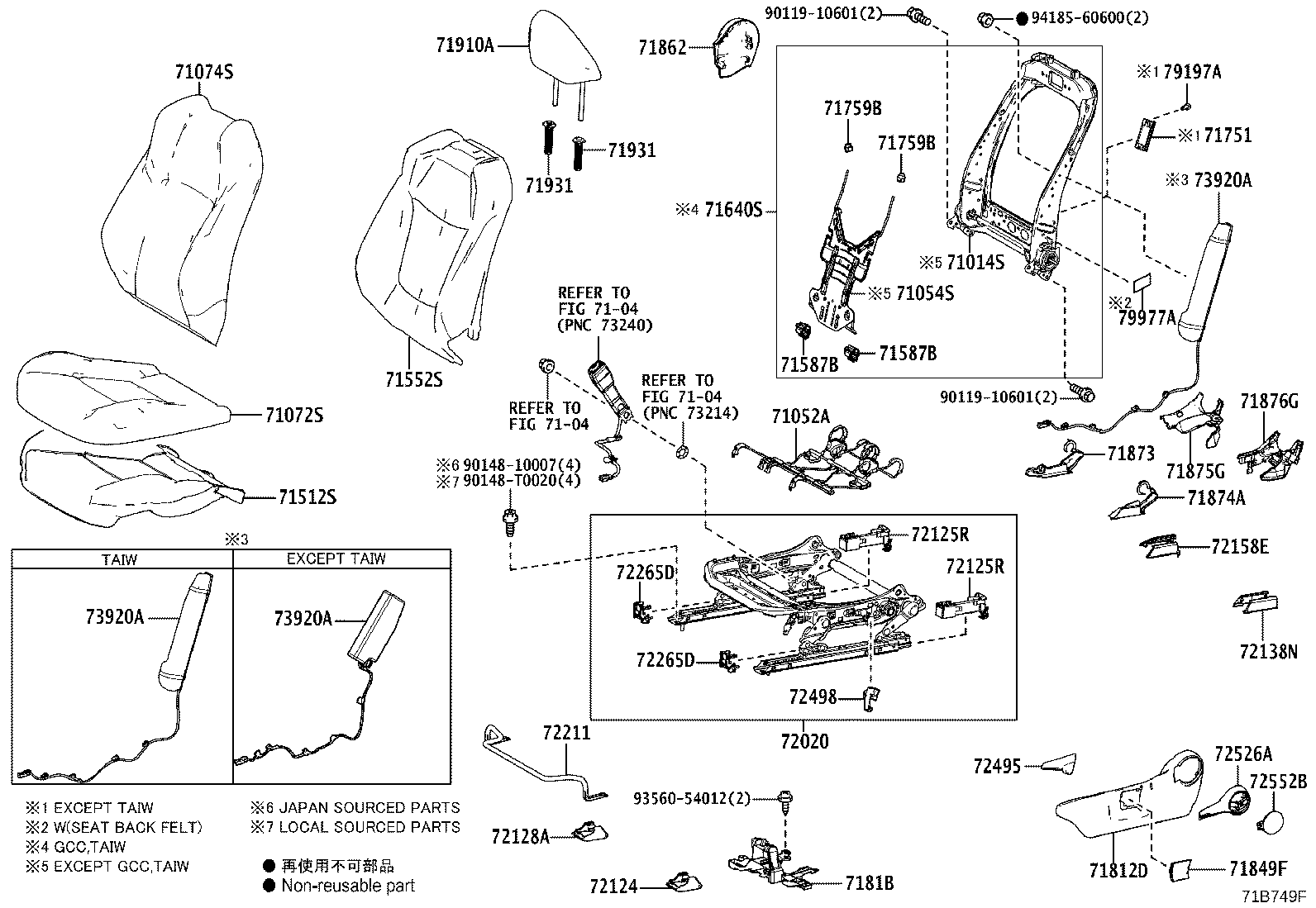

ILLUST NO. 1 OF 2(1904- )LHD
DRIVER SIDE,POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-06560 |
ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02400 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZN00C0 |
ZWE211..E FROMAGE,TRIM0# |
1 | ||
| 71072-0ZN50C3 |
ZWE211..G;ZWE211..GEN FROMAGE,TRIM0# |
1 | ||
| 71072-0ZU10C3 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/GRAY,TRIM1# |
1 | ||
| 71072-0ZU10C2 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/ORCHID BROWN,TRIM0# |
1 | ||
| 71072-0ZN00C1 |
ZWE211..E LT. GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F2210A1 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71074-F2210B1 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71074-0ZU90E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
1 | ||
| 71074-0ZV30E3 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
1 | ||
| 71074-0ZU90B1 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
1 | ||
| 71074-F2211A1 |
MZEA1#,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71074-F2211B1 |
MZEA1#,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02300 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 71512-02D20 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71502-02300 |
ZWE211..E;ZWE211..MA |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02D20 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71552-02C20 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02B90 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02B90C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71812-06620C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71812-06620C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-02030 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 7181B-F4020 |
ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06370C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71862-02450C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71862-06370C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06430 |
ZWE211..E;ZWE211..MA |
1 | ||
| 71874-02330 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71873-06430 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-06620 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 71873-06620 |
ZWE211..E;ZWE211..MA |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-06550C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71876-06550C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71876-02290C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06540C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71876-02280C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71876-06540C0 |
ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02T30B0 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02T30E0 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30B1 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02V90B0 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
2 | ||
| 71910-02V90A0 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
2 | ||
| 71910-02T50E2 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-02840 |
MZEA12,ZRE21#,ZWE211..D,E,G,N |
1 | ||
| 72020-06450 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) |
1 | ||
| 72020-06450 |
ZWE211..E;ZWE211..MA |
1 | ||
| 72020-02841 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-06090 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72125-06100 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72125-02100 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72125-06090 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-02390 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06060 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72265-47010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72265-06040 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72265-06060 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06220 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-T0020 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

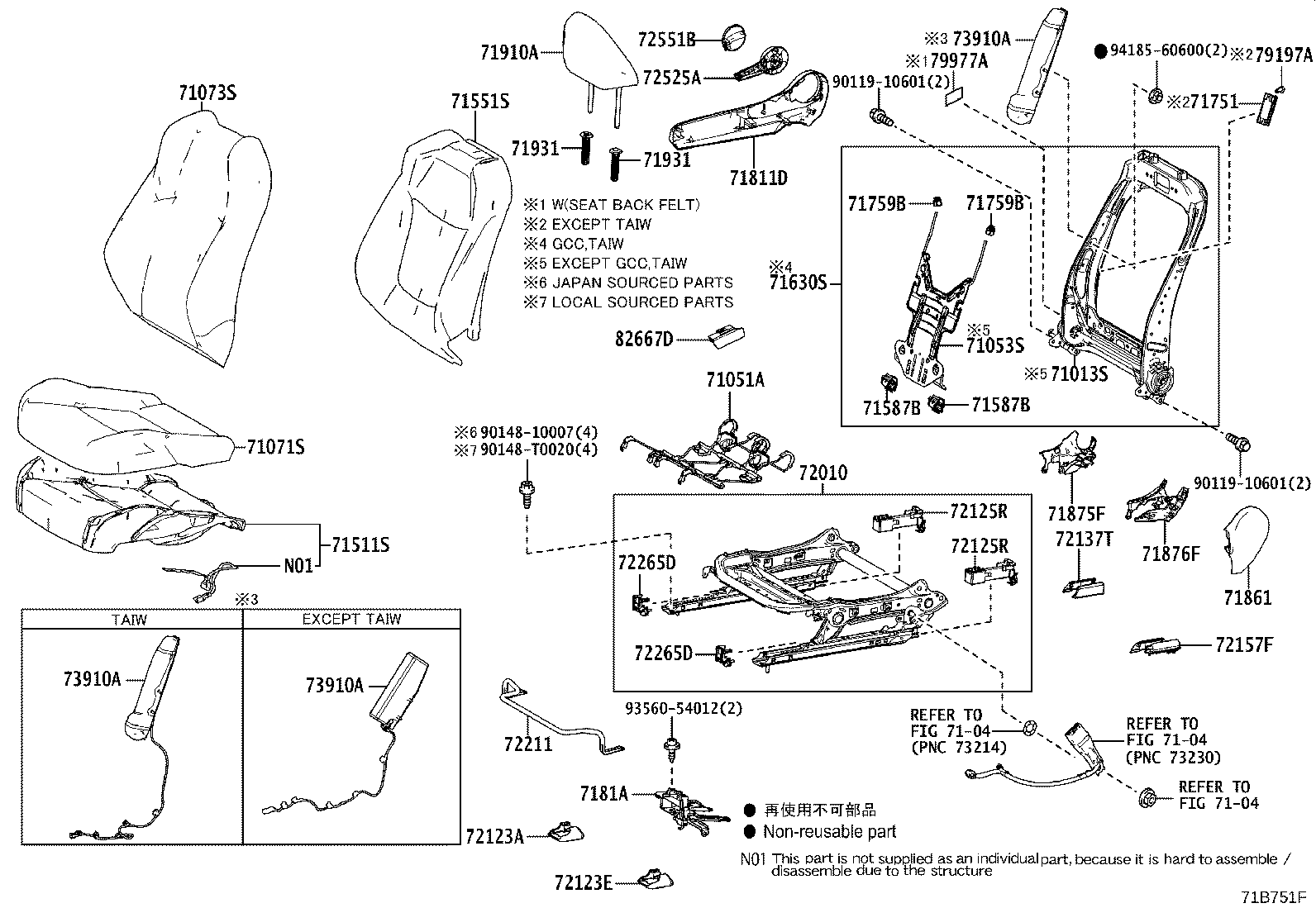

ILLUST NO. 2 OF 2(1904- )LHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-06620 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-02400 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-06160 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZX70C3 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,FROMAGE,TRIM0# |
1 | ||
| 71071-0ZX20C0 |
ZWE211..E FROMAGE,TRIM0# |
1 | ||
| 71071-F2310C3 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/GRAY,TRIM1# |
1 | ||
| 71071-0ZX70C4 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2# |
1 | ||
| 71071-F2310C2 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK/ORCHID BROWN,TRIM0# |
1 | ||
| 71071-0ZX20C1 |
ZWE211..E LT. GRAY,TRIM1# |
1 | ||
| 71071-0ZX80C4 |
ZWE211..G;ZWE211..GEN,IDN BLACK,TRIM2# |
1 | ||
| 71071-0ZX80C3 |
ZWE211..G;ZWE211..GEN FROMAGE,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02770B1 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71027-02770A1 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71027-02700B1 |
ZWE211..E GRAY,TRIM1# |
1 | ||
| 71073-0ZW10E3 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,ORCHID BROWN,TRIM0# |
1 | ||
| 71027-02700E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
1 | ||
| 71073-0ZW10C3 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2# |
1 | ||
| 71073-0ZW30C3 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2# |
1 | ||
| 71073-0ZW30E3 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
1 | ||
| 71027-02771A1 |
MZEA1#,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 71027-02771B1 |
MZEA1#,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02D40 |
ZWE211..E |
1 | ||
| 71501-02370 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71501-02420 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71511-02D50 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN |
1 | ||
| 71511-02D40 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02F50 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 71551-02E30 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02A90 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06620C0 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2# |
1 | ||
| 71811-02840C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71811-06620C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-F4020 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 7181A-02030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02420C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71861-06350C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06410C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71875-02250C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-06420C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 71875-02300C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02T30B0 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02T30E0 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30E1 |
ZWE211..E ORCHID BROWN,TRIM0# |
2 | ||
| 71910-02T30B1 |
ZWE211..E;ZRE210..D..PHL GRAY,TRIM1# |
2 | ||
| 71910-02V90B0 |
MZEA12,ZRE210,ZWE211..D..GCC LT. GRAY,TRIM1# |
2 | ||
| 71910-02V90A0 |
MZEA12,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
2 | ||
| 71910-02T50E2 |
ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47050B8 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-0K040C1 |
ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47030A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W/O(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71931-47030B9 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW) W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71930-47050A0 |
MZEA1#,ZRE210,ZWE211..D..GCC W(LOCK),FROMAGE,TRIM0# |
2 | ||
| 71930-0K050E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-0K040E3 |
ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-06461 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 72010-06461 |
ZWE211..E |
1 | ||
| 72010-06460 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
1 | ||
| 72010-02820 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72010-06460 |
ZWE211..E;ZRE211..IDN;ZRE210..RHD..(D,G) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-06090 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72125-06100 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72125-02100 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72125-06090 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-06090 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72125-06100 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72125-02100 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72125-06090 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-02390 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-02380 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02190 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
2 | ||
| 72211-06150 |
ZWE211..G;ZWE211..GEN,IDN,PHL;ZRE21#..CVT..(E,V)..(GEN,MA,PHL) |
1 | ||
| 72211-06150 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06060 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72265-47010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72265-06040 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72265-06060 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06060 |
ZWE211..E;ZWE211..MA FOR LH SEAT |
2 | ||
| 72265-47010 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E,N) |
4 | ||
| 72265-06040 |
ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT |
2 | ||
| 72265-06060 |
ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06140C0 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2# |
1 | ||
| 72525-02310C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 72525-06140C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-06020C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 72551-02100C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 72551-06020C0 |
ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-06210 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-06210 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-06210 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 79197A - RIVET | ||||
| 79197-0K010 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
2 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-T0020 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
