ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis
ILLUST NO. 1 OF 2(1904- )GCC,TAIW
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02906 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63102-02907 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02906 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63102-02907 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-02160 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63107-02030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02780 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63111-02770 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02780 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63111-02770 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-02100 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-02100 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02240 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02240 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-02200 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63142-02210 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-02200 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63142-02210 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-02260 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02270 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02270 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02150 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 63151C - FRAME, ROOF OPENING SIDE, RH | ||||
| 63151-02030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63152C - FRAME, ROOF OPENING SIDE, LH | ||||
| 63152-02030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-02630 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 64101-02620 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 64101-02640 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 64101-02620 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-02440 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||

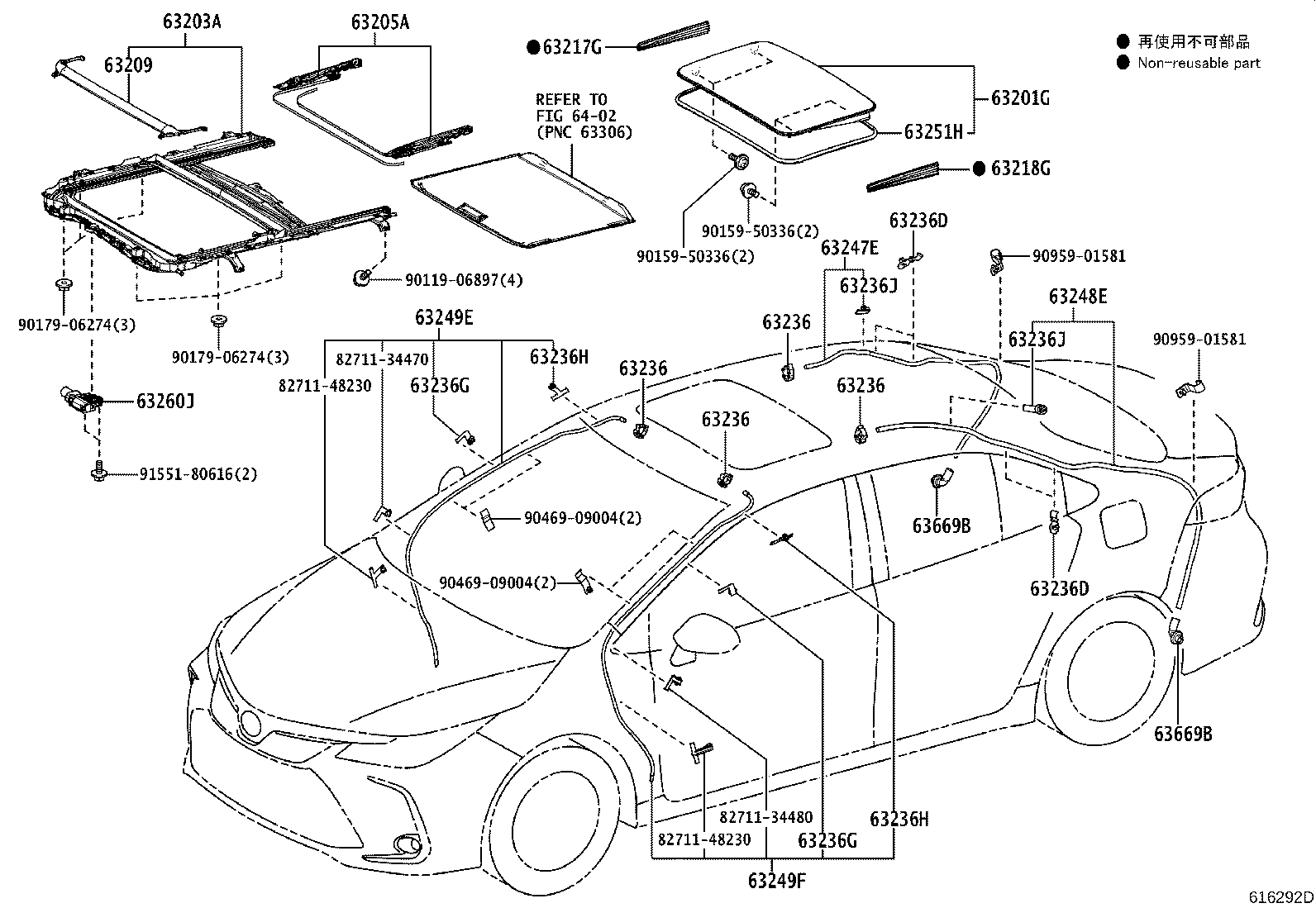

ILLUST NO. 2 OF 2(1904- )GCC,TAIW
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02260 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-02160 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-02090 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02140 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-47020 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-47020 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-33030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-30010 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-30010 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
4 | ||
| 63236G - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE,RH |
1 | ||
| 86147-30040 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE,LH |
1 | ||
| 63236G - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30030 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE,RH |
1 | ||
| 86147-30040 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE,LH |
1 | ||
| 63236H - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-50050 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| 63236H - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-50050 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| 63236J - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30020 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| 63236J - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 86147-30020 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-02460 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-02660 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02450 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02470 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12200 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12180 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
MZEA1#,ZRE210,ZWE211..GCC UP GRADE PACKAGE |
2 | ||
| Common parts | ||||
| 82711-34470 | ||||
| 82711-34480 | ||||
| 82711-48230 | ||||
| 90119-06897 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90469-09004 | ||||
| 90959-01581 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 6402 | ||||
