ZWE211L-GEXDBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )GCC,TAIW

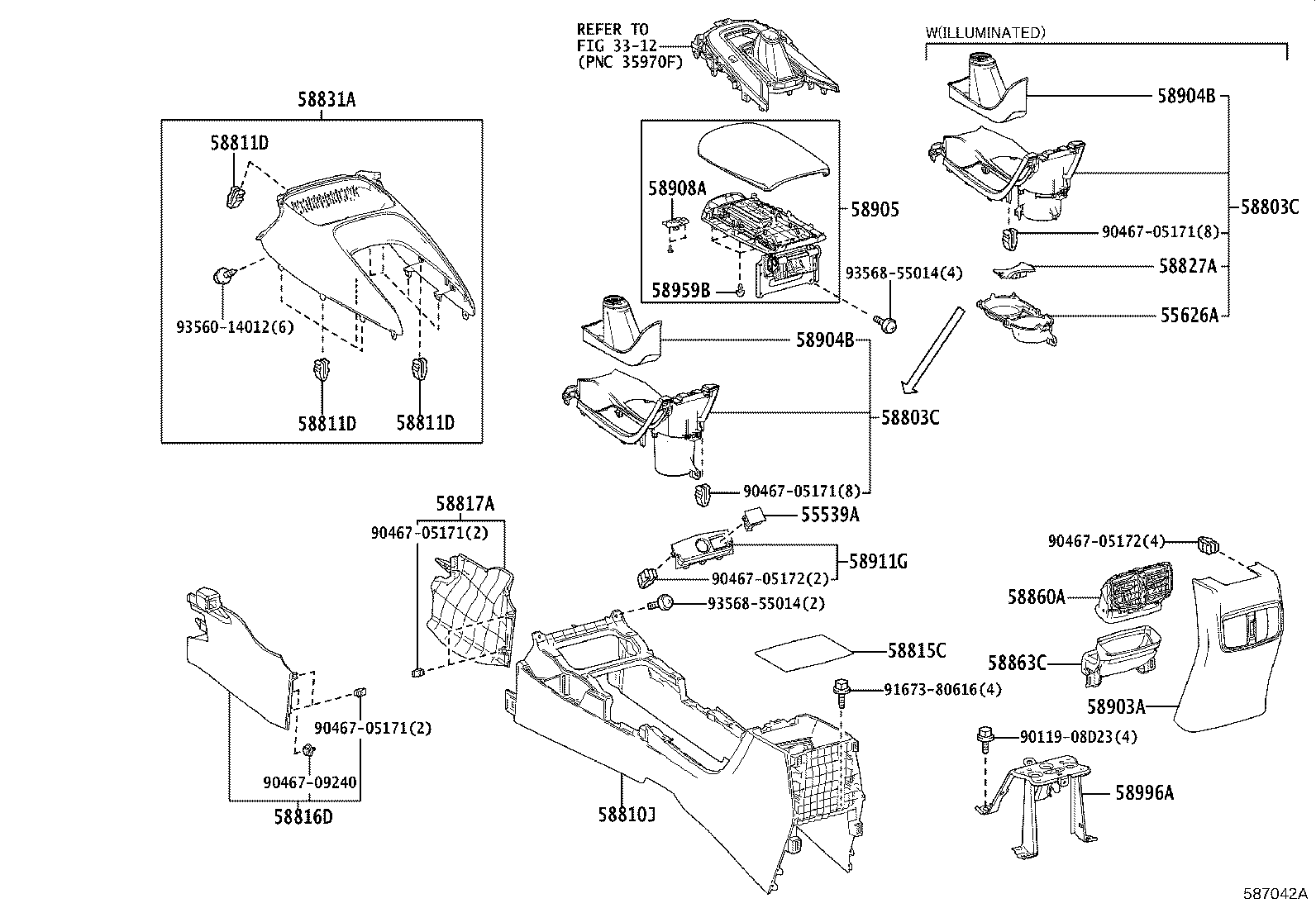

Click highlighted areas on diagram

diagram 3312 55539A 55626A 58803C 58803C 58810J 58811D 58811D 58811D 58815C 58816D 58817A 58827A 58831A 58860A 58863C 58903A 58904B 58904B 58905 58908A 58911G 58959B 58996A 9011908D23 9046705171 9046705171 9046705171 9046705171 9046705172 9046705172 9046709240 9167380616 9356014012 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-12260C0

ZWE211..E

BLACK,TRIM0#,1#

 1
55539-02240C0

MZEA1#,ZRE210,ZWE211..D..GCC

BLACK,TRIM0#,1#

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-02230C1

MZEA12,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58803-02230C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-02230C1

MZEA12,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58803-02230C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58810J - BOX ASSY, CONSOLE
58810-02040C0

ZWE211..E

BLACK,TRIM0#,1#

 1
58810-02050C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-05171

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 10
58811D - CLIP(FOR CONSOLE BOX)
90467-05171

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 10
58811D - CLIP(FOR CONSOLE BOX)
90467-05171

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 10
58815C - CARPET, CONSOLE BOX
58815-02460

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
58816D - INSERT, CONSOLE BOX, FRONT NO.1
58816-02410C0

ZWE211..E

BLACK,TRIM0#,1#

 1
58816-02420C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-02420C0

ZWE211..E

BLACK,TRIM0#,1#

 1
58817-02430C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-02370C1

ZWE211..E;ZRE210..D..PHL

BLACK/ LT.GRAY,TRIM1#

 1
58831-02340C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK/FROMAGE,TRIM0#

 1
58831-02370C2

ZWE211..G

LOW GRADE PACKAGE,BLACK/ BLACK,TRIM2#

 1
58831-02340C1

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

BLACK/LT.GRAY,TRIM1#

 1
58831-02370C0

ZWE211..G

LOW GRADE PACKAGE,BLACK/ FROMAGE,TRIM0#

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-02030

ZWE211..E;ZWE211..MA

 1
58860-02040

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
58863C - DUCT, CONSOLE BOX, NO.3
58863-02010

ZWE211..E;ZWE211..MA

 1
58863-02020

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-02100C0

ZWE211..E

BLACK,TRIM0#,1#

 1
58903-02110C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02410C1

MZEA12,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58904-02410C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02410C1

MZEA12,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58904-02410C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02D80B0

ZWE211..E

NEUTRAL WARM GRAY,TRIM1#

 1
58905-02E30B0

MZEA12,ZWE211..D

NEUTRAL WARM GRAY,TRIM10

 1
58905-02D80E0

ZWE211..E

ORCHID BROWN,TRIM0#

 1
58905-02E30C0

MZEA12,ZWE211..D

BLACK,TRIM00,10

 1
58905-02E30E0

MZEA12,ZWE211..D

ORCHID BROWN,TRIM00

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
58911G - PANEL, BOX, NO.1
58911-02590C0

ZWE211..E

BLACK,TRIM0#,1#

 1
58911-02600C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 4
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02250

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
Common parts
90119-08D23
90467-05171
90467-05172
90467-09240
91673-80616
93560-14012
93568-55014
Linked diagrams
3312
