ZWE211L-GEXDBV (2019)
Toyota Corolla/Altis

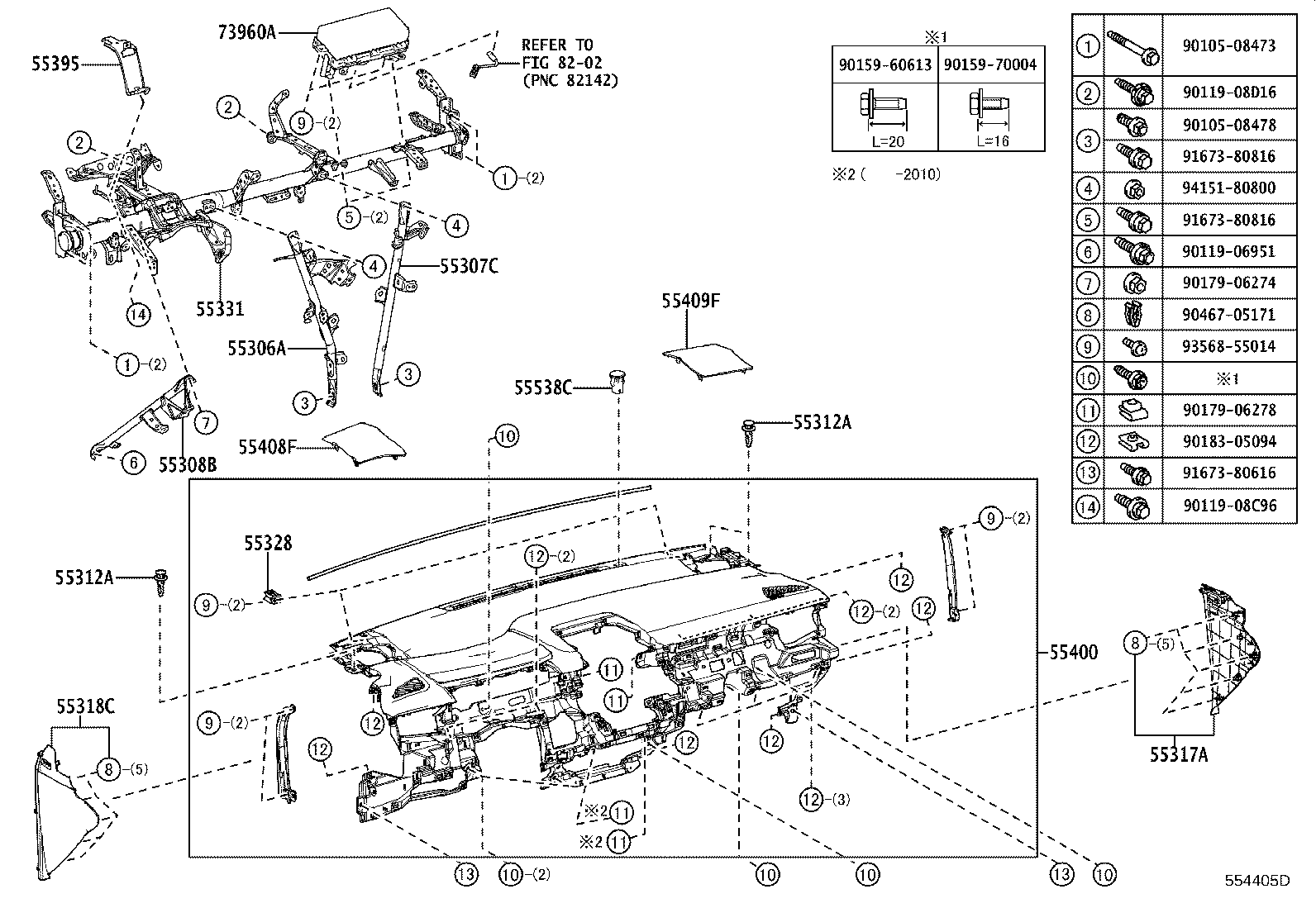

ILLUST NO. 1 OF 2(1904- )D..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02720 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55306-02710 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02570 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55307-02560 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02210 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55308-02220 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K060 |
MZEA1#,ZRE210,ZWE211..D..GCC (L) |
2 | ||
| 52161-0K060 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) (L) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) (J) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210,ZWE211..D..GCC (J) |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K060 |
MZEA1#,ZRE210,ZWE211..D..GCC (L) |
2 | ||
| 52161-0K060 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) (L) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) (J) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210,ZWE211..D..GCC (J) |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-02360C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55318-02270C0 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK,TRIM0#,1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-02810C0 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK,TRIM0#,1# |
1 | ||
| 55317-02730C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02B10 |
MZEA1#,ZRE21#,ZWE211..(D,E,G,N)..(GCC,TAIW) |
1 | ||
| 55330-02C50 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02100 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55395-02110 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02360C1 |
ZWE211..E SOFT BLACK,TRIM0#,1# |
1 | ||
| 55400-02550C0 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK,TRIM0#,1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02200C0 |
MZEA1#,ZRE210,ZWE211..D..GCC BLACK,TRIM0#,1# |
1 | ||
| 55472-02130C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02110C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55473-02120C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12360 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1904- )D..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02420C1 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55011-02440B0 |
MZEA1#,ZRE210,ZWE211..D..GCC SILVER,TRIM0#,1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZRE211..E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02720A0 |
MZEA1#,ZRE210,ZWE211..GCC FROMAGE,TRIM0# |
1 | ||
| 55403-02720B0 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW LT.GRAY,TRIM1# |
1 | ||
| 55403-02700B0 |
ZWE211..E LT.GRAY,TRIM1# |
1 | ||
| 55403-02700A0 |
ZWE211..E;ZWE211..MA FROMAGE,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02F80 |
MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER |
1 | ||
| 55405-02830 |
ZWE211..E |
1 | ||
| 55405-02J10 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02720 |
MZEA1#,ZRE210,ZWE211..D..GCC |
1 | ||
| 55410-02700 |
ZWE211..E |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02840A0 |
ZWE211..E FROMAGE,TRIM0# |
1 | ||
| 55413-02840B0 |
ZWE211..E LT.GRAY,TRIM1# |
1 | ||
| 55413-02750A0 |
MZEA1#,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 55413-02750B0 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E) LT.GRAY,TRIM1# |
1 | ||
| 55413-02730B0 |
MZEA1#,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02430 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-02810 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55422-02780 |
ZWE211..E |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-02530C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-02890C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55432-02A00C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02610C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55433-02620C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02610C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55434-02620C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55434-02610C0 |
ZWE211..G LOW GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02750B0 |
ZWE211..E LT.GRAY,TRIM1# |
1 | ||
| 55470-02750A0 |
ZWE211..E FROMAGE,TRIM0# |
1 | ||
| 55470-02770A0 |
MZEA1#,ZRE210,ZWE211..D..GCC FROMAGE,TRIM0# |
1 | ||
| 55470-02780B0 |
MZEA1#,ZRE21#,ZWE211..(E,G,N,V)..(GCC,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 55470-02770B0 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..D LT.GRAY,TRIM1# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02200B0 |
ZWE211..E SILVER,TRIM0#,1# |
1 | ||
| 55474-02220B0 |
MZEA1#,ZRE210,ZWE211..D..GCC SILVER,TRIM0#,1# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02170C1 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55475-02180C1 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
MZEA12,ZRE210,ZWE211..GCC AUDIO-*DA(7INCH) & DVD & 6SPEAKER & DAB |
1 | ||
| 55522-52020 |
MZEA1#,ZRE210,ZWE211..GCC |
1 | ||
| 55522-52020 |
MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER |
1 | ||
| 55522-52020 |
MZEA11,ZRE210,ZWE211..D..GCC AUDIO-*DA(8INCH) & 4SPEAKER |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-02030C0 |
MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER,BLACK,TRIM0#,1# |
1 | ||
| 55524-02030C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55524-02030C0 |
MZEA12,ZRE210,ZWE211..GCC AUDIO-*DA(7INCH) & DVD & 6SPEAKER & DAB,BLACK,TRIM0#,1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-02270C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55539-02270C0 |
ZWE211..G LOW GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 55539-02280C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02580C0 |
MZEA1#,ZRE210,ZWE211..GCC BLACK,TRIM0#,1# |
1 | ||
| 55550-02570C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02340 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55606-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02360 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55607-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02880 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55650-02A10 |
ZRE211..G..TAIW;MZEA1#,ZRE210,ZWE211..GCC,TAIW |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02580 |
ZRE211..G..TAIW;MZEA1#,ZRE210,ZWE211..GCC,TAIW |
1 | ||
| 55660-02550 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02870 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55670-02A00 |
ZRE211..G..TAIW;MZEA1#,ZRE210,ZWE211..GCC,TAIW |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02260C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||
