ZWE211L-GEXDBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )LHD

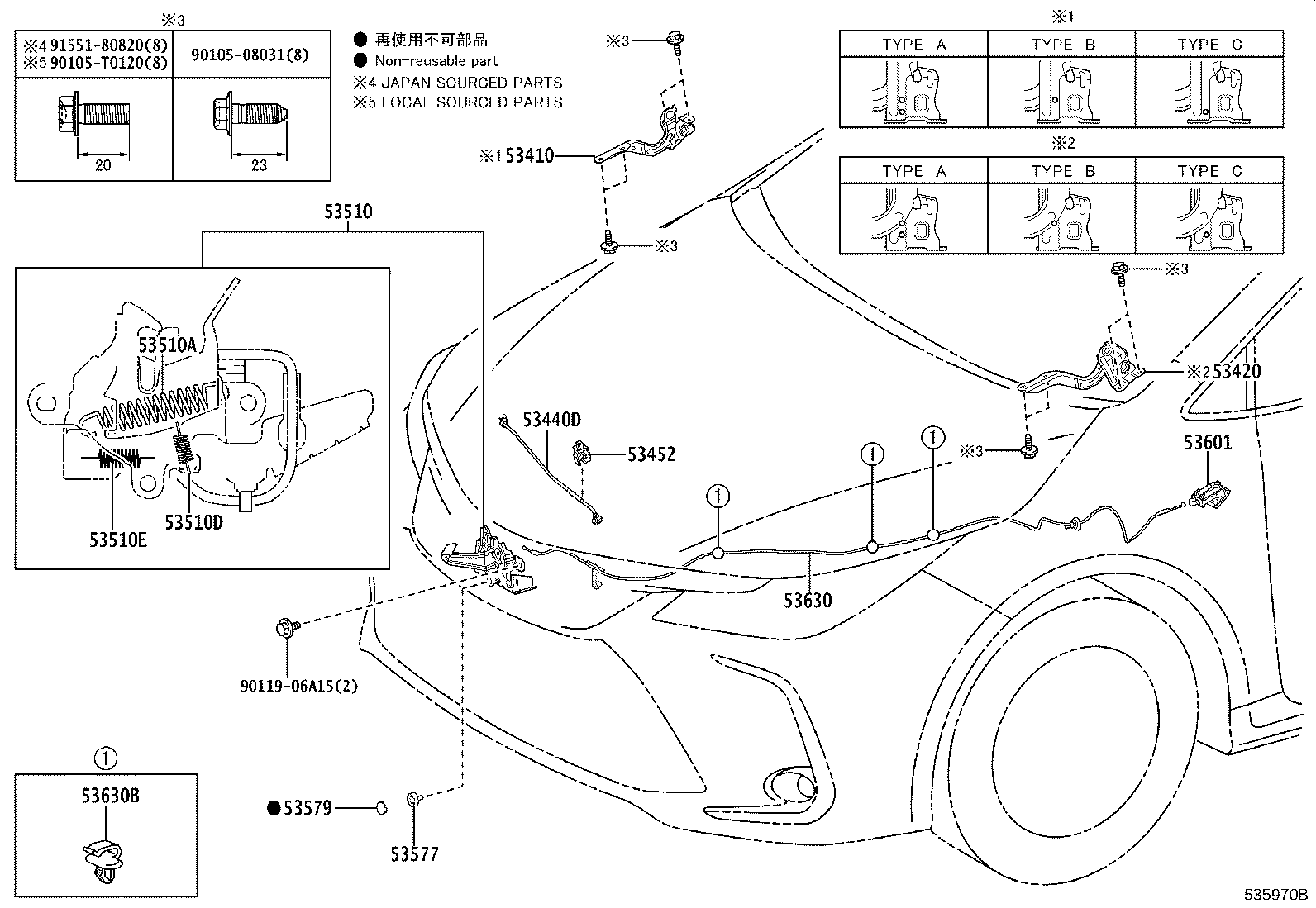

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53510 53510A 53510D 53510E 53577 53579 53601 53630 53630B 9010508031 90105T0120 9011906A15 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02610

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
53420 - HINGE ASSY, HOOD, LH
53420-02610

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
53440D - SUPPORT ASSY, HOOD
53440-02320

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
53452 - HOLDER, HOOD STAY
53452-15020

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

(J)

 1
53452-02380

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

(L)

 1
53510 - LOCK ASSY, HOOD
53510-12C40

ZWE211..E;ZWE211..MA

 1
53510-02A20

MZEA1#,ZRE210,ZWE211..GCC

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

WD=1.6,CW=12

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

MZEA1#,ZRE211,ZWE211..LHD;ZRE210..CVT..(D,G,N,V)..(GCC,GEN,PHL)

WD=0.9,CW=21

 1
53577 - BOLT, HOOD LOCK
53577-33010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D080C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
53601-0D040C1

ZWE211..E

BLACK,TRIM0#,1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02480

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
53630-02470

ZWE211..E;ZWE211..MA

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 3
Common parts
90105-08031
90105-T0120
90119-06A15
91551-80820
