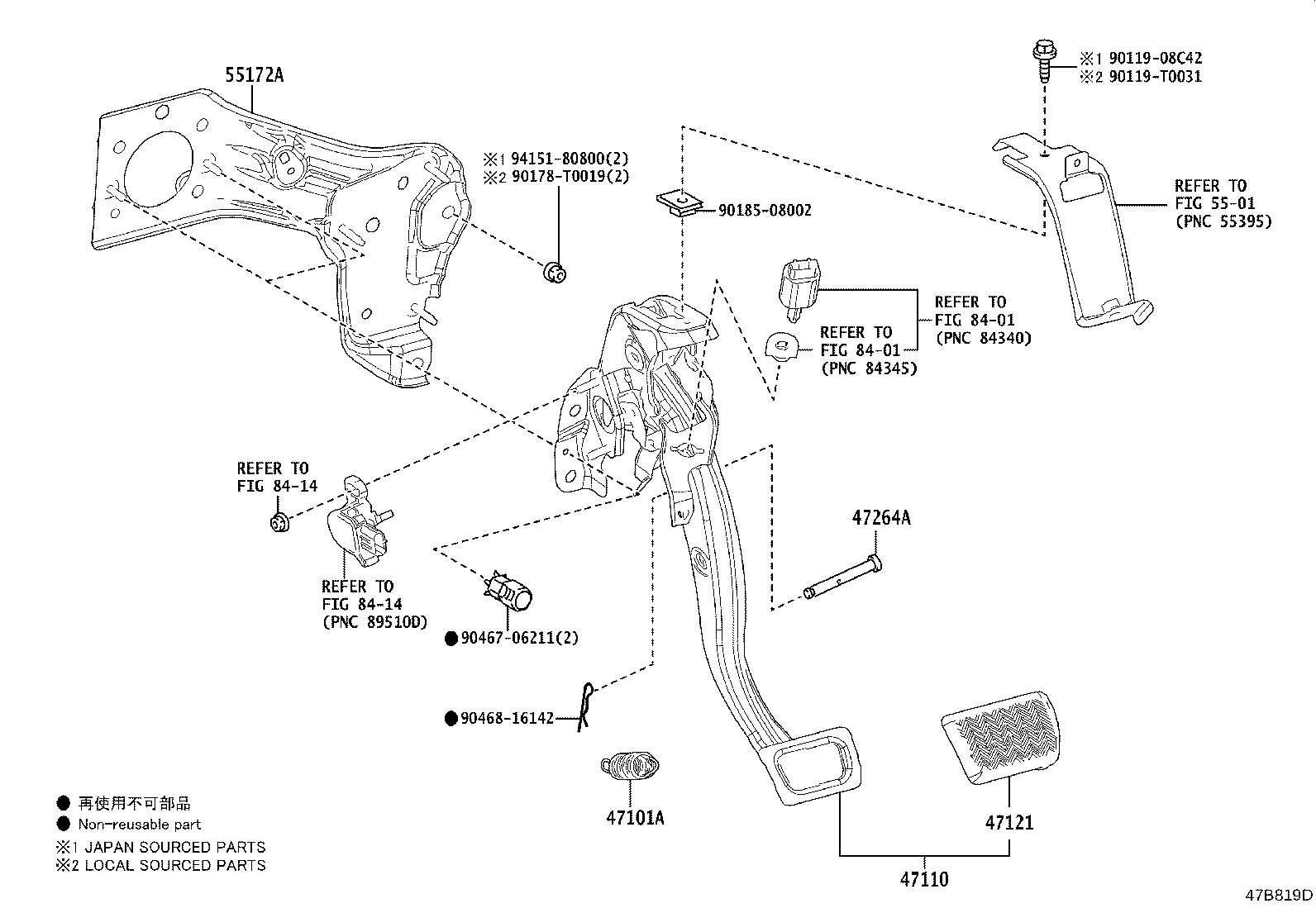

Toyota Corolla/altis ZWE211 BRAKE PEDAL & BRACKET

Part #	Description	Period	Qty
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15009	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
90507-15009	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-47070	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
47110-47060	ZWE211..LHD	04/2019 - 12/2999	1
47121 - PAD, BRAKE PEDAL
47121-47010	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
47121-47010	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	04/2019 - 12/2999	1
47264A - PIN(FOR PUSH ROD)
90249-08309	ZRE210..CVT..PHL;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
90249-08309	ZWE211..E;ZWE211..MA	04/2019 - 12/2021	1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-02160	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
55172-02170	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90119-08C42
90119-T0031
90178-T0019
90185-08002
90467-06211
90468-16142
94151-80800
Linked diagrams
5501
8401
8414

ZWE211L-GEXDBV (2019)
