ZRE211R-GEXGKD (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

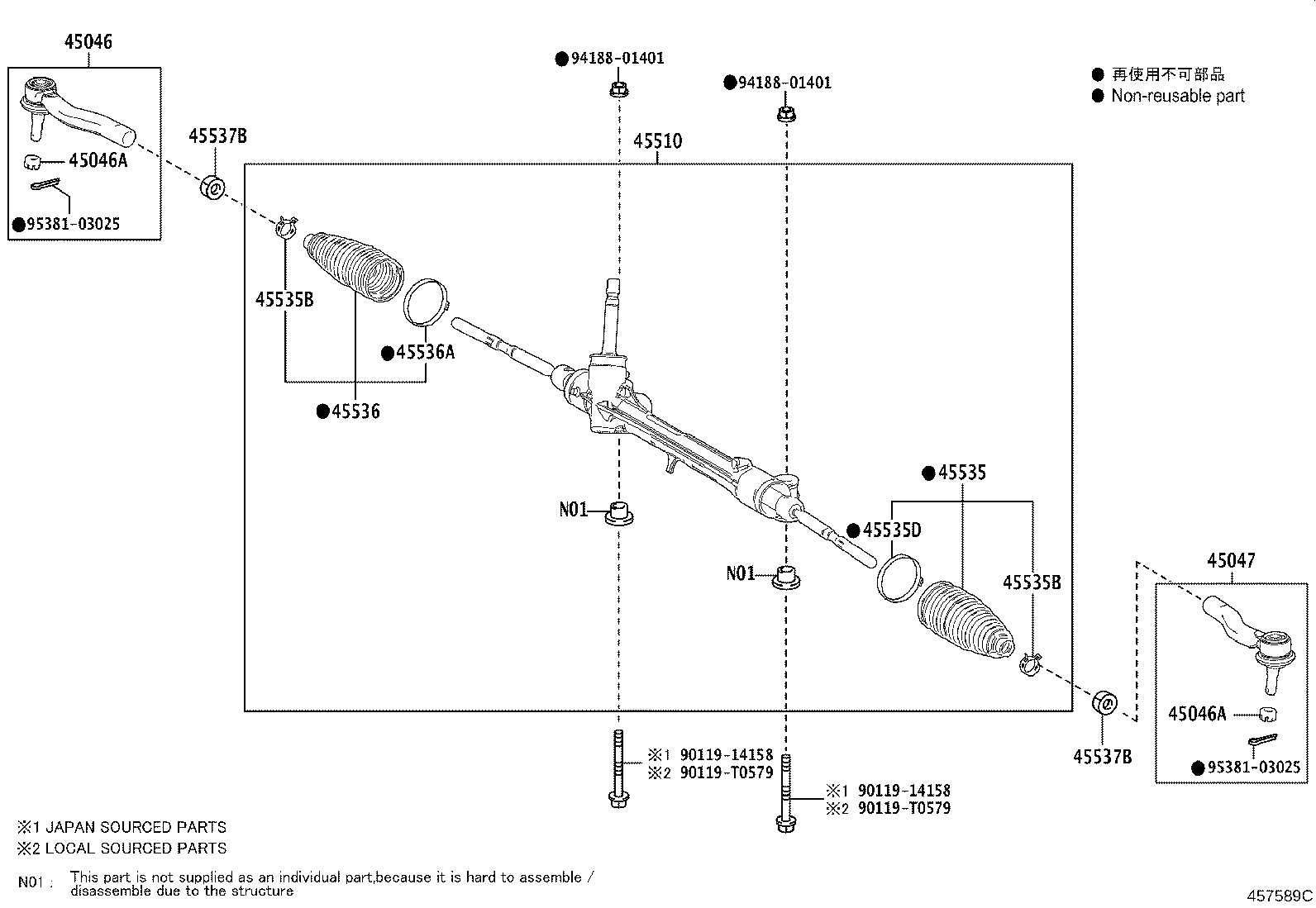

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011914158 9011914158 90119T0579 90119T0579 9418801401 9418801401 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09890

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

(J)

 2
90171-T0004

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

(L)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

(J)

 2
90171-T0004

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

(L)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09420

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45510 - GEAR ASSY, STEERING
45510-02440

ZRE21#..(E,G)..(IDN,MA,SGP)

UP GRADE PACKAGE

 1
45510-02590

ZRE210..RHD;ZWE211..GEN;ZRE211..(E,G)..(IDN,MA)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09610

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D090

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09610

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D090

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
45537B - NUT, RACK END LOCK
90178-T0073

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
45537B - NUT, RACK END LOCK
90178-T0073

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
Common parts
90119-14158
90119-T0579
94188-01401
95381-03025
