ZRE211R-GEXEKE (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZRE21#..CVT..D,E,G,V..GEN,IDN,MA,PHL,SGP,TH

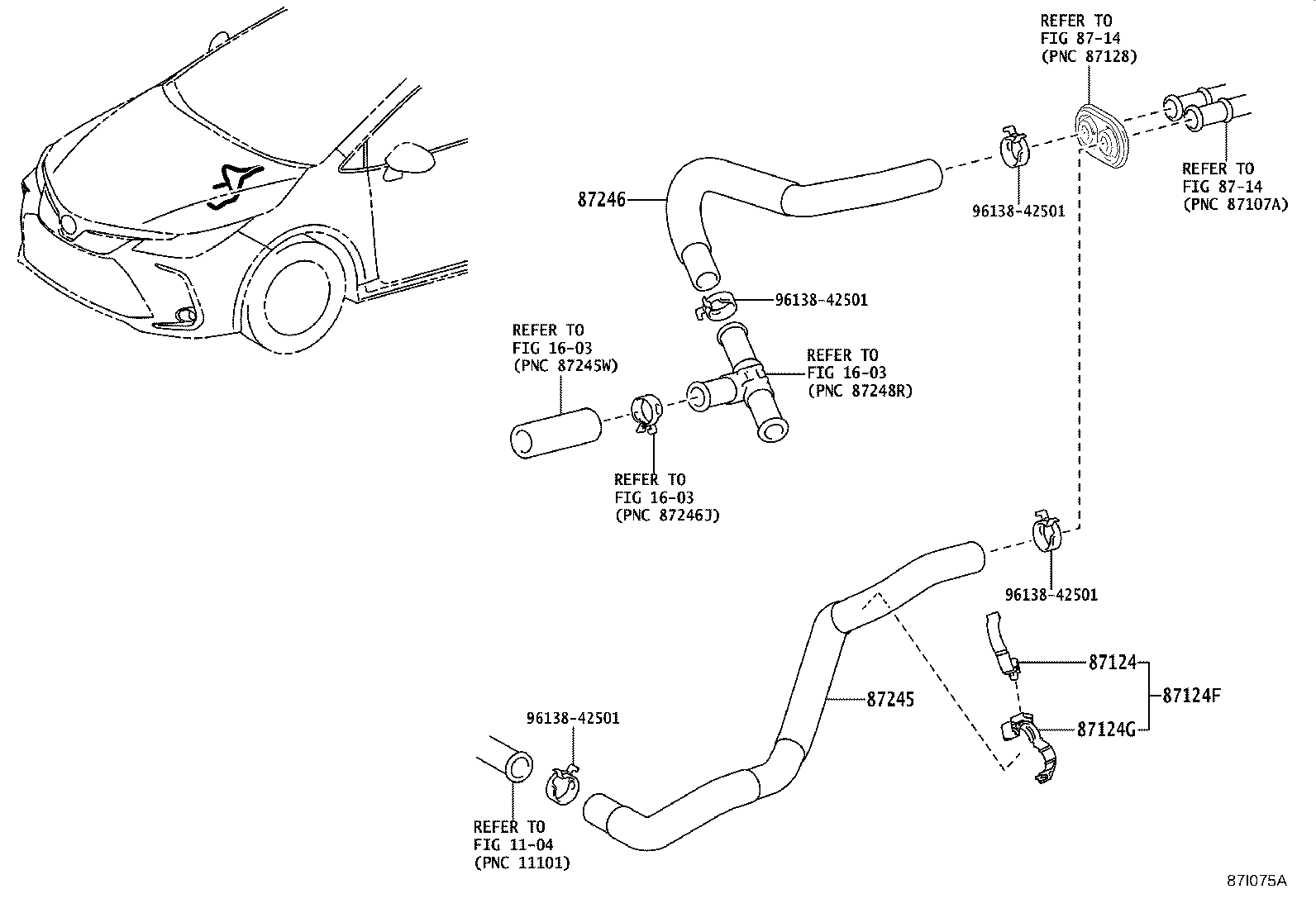

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 87124 87124F 87124G 8714 8714 87245 87246 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-11030

ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH)

 1
87124F - CLAMP, HEATER HOSE, NO.1
16581-70060

ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH)

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-50060

ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH)

 1
87245 - HOSE, HEATER WATER, INLET
87245-02Q50

ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP,TH)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02Q60

ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP,TH)

 1
Common parts
96138-42501
Linked diagrams
1104
1603
8714
