ZRE211L-GEXGKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )ZRE210;ZRE211..D,E,G

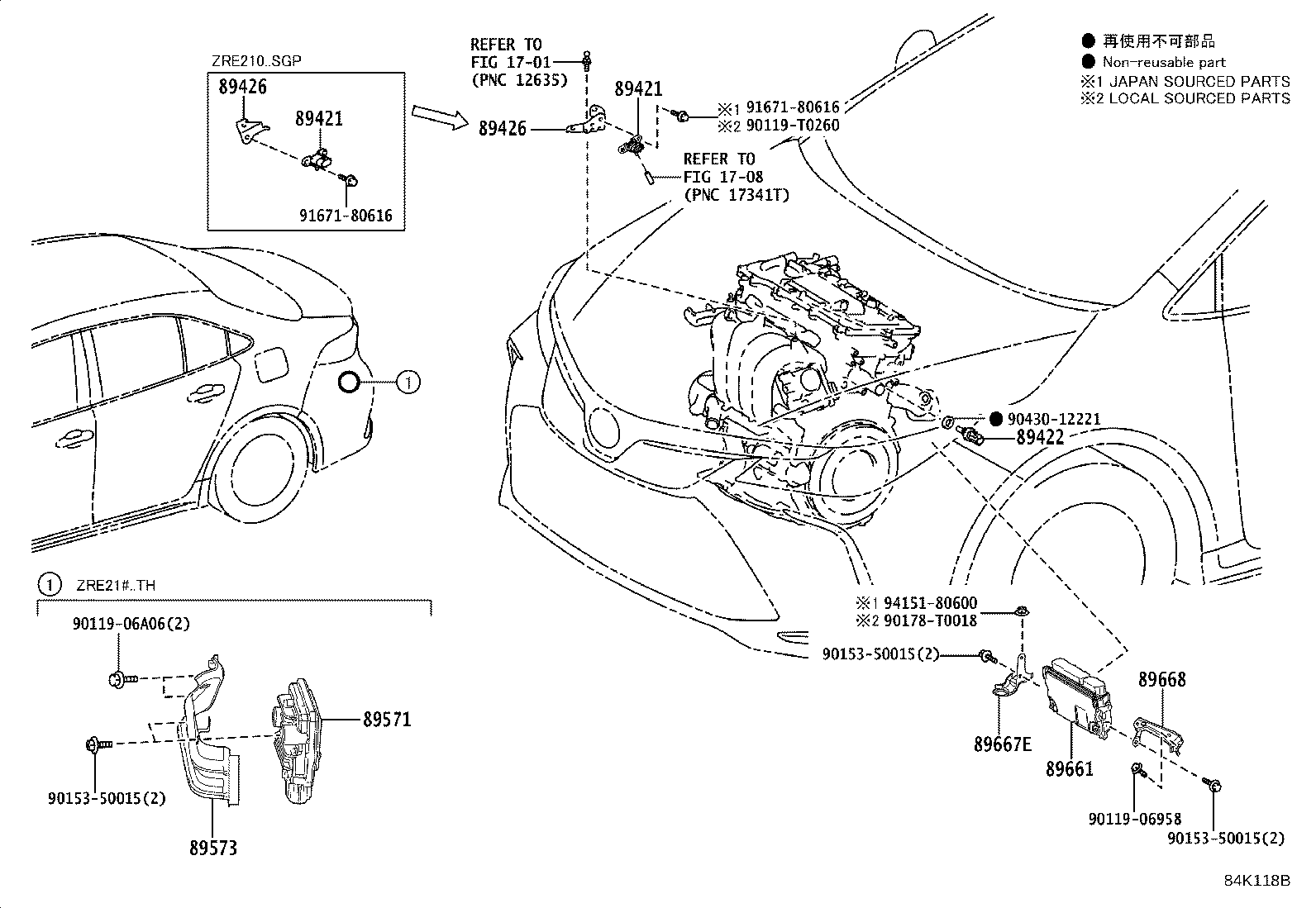

Click highlighted areas on diagram

diagram 1701 1708 89421 89421 89422 89426 89426 89571 89573 89661 89667E 89668 9011906958 9011906A06 90119T0260 9015350015 9015350015 9015350015 90178T0018 9043012221 9167180616 9167180616 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE210..CVT;ZRE211..D,E,G;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE210..CVT;ZRE211..D,E,G;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE210..CVT;ZRE211..D,E,G;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89426 - BRACKET, VACUUM SENSOR
89426-12270

ZRE211..D,E,G;ZRE210..CVT..(GCC,GEN,PHL,TH)

 1
89426 - BRACKET, VACUUM SENSOR
89426-12270

ZRE211..D,E,G;ZRE210..CVT..(GCC,GEN,PHL,TH)

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02510

ZRE211..TAIW

DENSO TEN

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-02550

ZRE21#..GCC,TAIW

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02540

ZRE21#..GCC,TAIW

 1
Common parts
90119-06958
90119-06A06
90119-T0260
90153-50015
90178-T0018
90430-12221
91671-80616
94151-80600
Linked diagrams
1701
1708

(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW

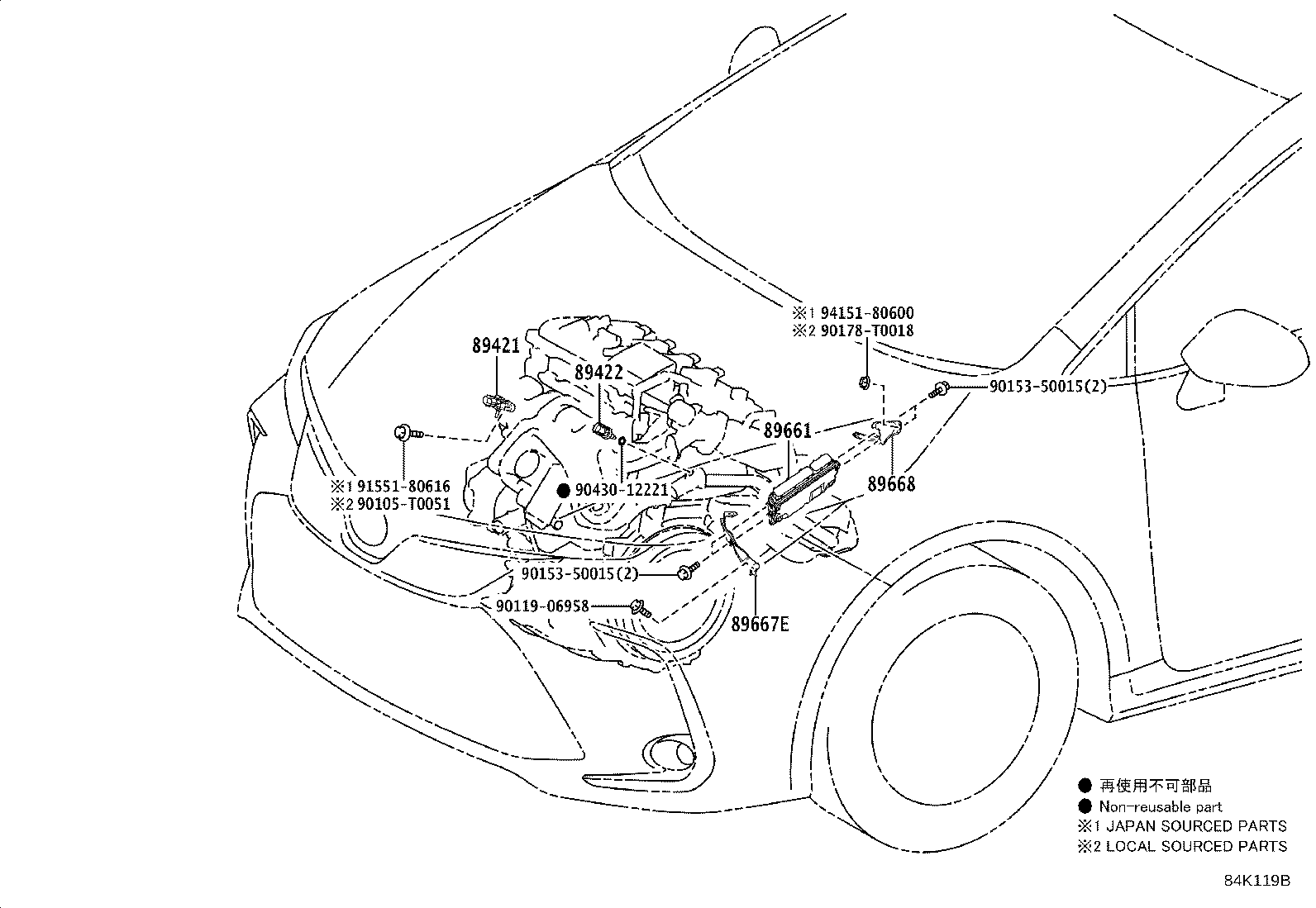

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 90105T0051 9011906958 9015350015 9015350015 90178T0018 9043012221 9155180616 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE210..CVT;ZRE211..D,E,G;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE210..CVT;ZRE211..D,E,G;ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02510

ZRE211..TAIW

DENSO TEN

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-02550

ZRE21#..GCC,TAIW

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02540

ZRE21#..GCC,TAIW

 1
Common parts
90105-T0051
90119-06958
90153-50015
90178-T0018
90430-12221
91551-80616
94151-80600
