ZRE211L-GEXGKR (2019)
Toyota Corolla/Altis
(1904- )LHD

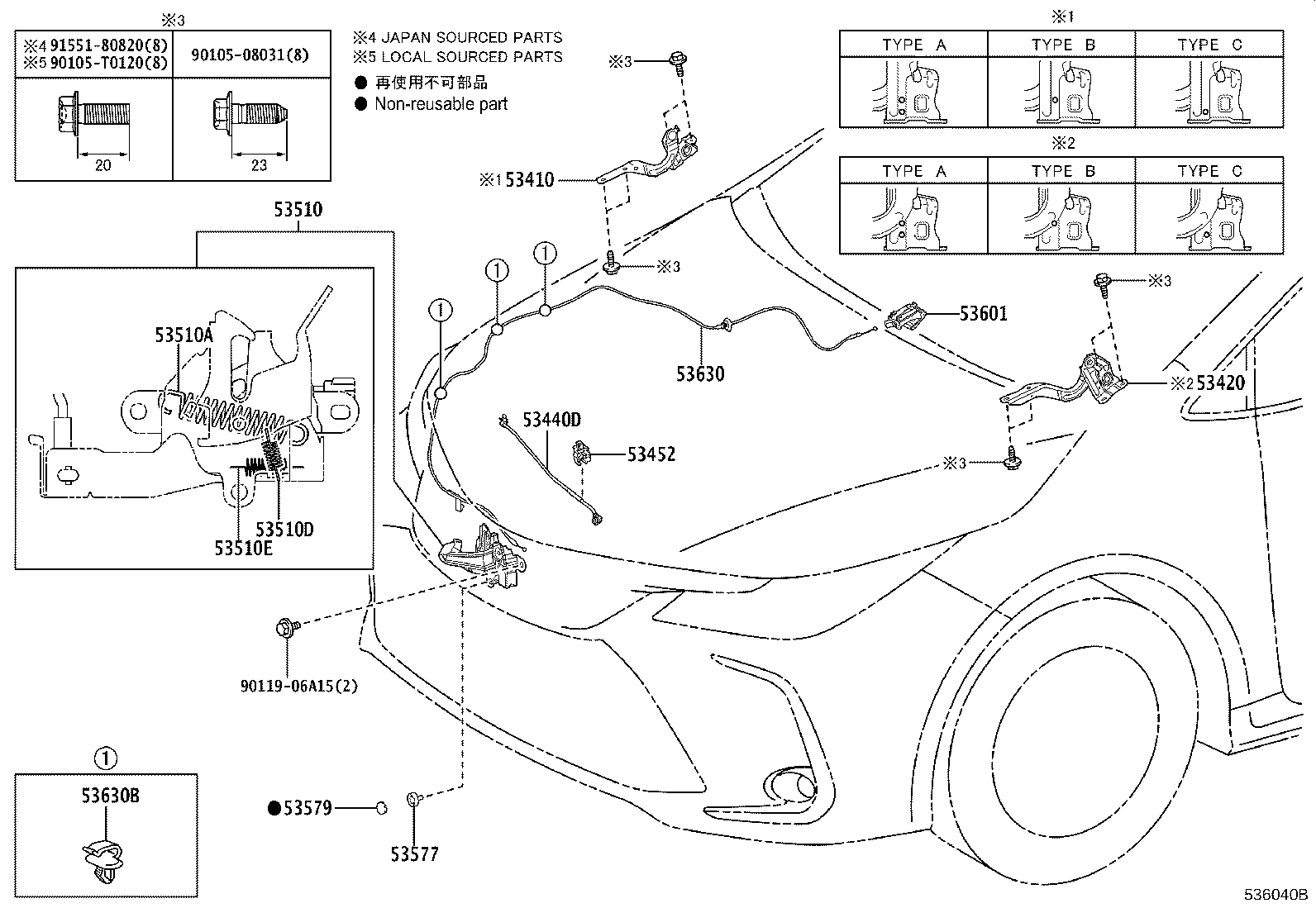

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-02610 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-02610 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-15020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
1 | ||
| 53452-02380 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW (L) |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-02A10 |
ZRE211,ZWE211..TAIW |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW WD=1.6,CW=12 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0004 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW WD=1.2,CW=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
MZEA1#,ZRE211,ZWE211..LHD;ZRE210..CVT..(D,G,N,V)..(GCC,GEN,PHL) WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D080C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 53601-0D080C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02480 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
3 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90105-T0120 | ||||
| 90119-06A15 | ||||
| 91551-80820 | ||||
(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-02610 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-02610 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-15020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
1 | ||
| 53452-02380 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW (L) |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-02A10 |
ZRE211,ZWE211..TAIW |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW WD=1.6,CW=12 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0004 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW WD=1.2,CW=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
MZEA1#,ZRE211,ZWE211..LHD;ZRE210..CVT..(D,G,N,V)..(GCC,GEN,PHL) WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D080C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 53601-0D080C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02480 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
3 | ||
| Common parts | ||||
| 90105-08031 | ||||
| 90105-T0120 | ||||
| 90119-06A15 | ||||
| 91551-80820 | ||||
