ZRE211L-GEXEKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

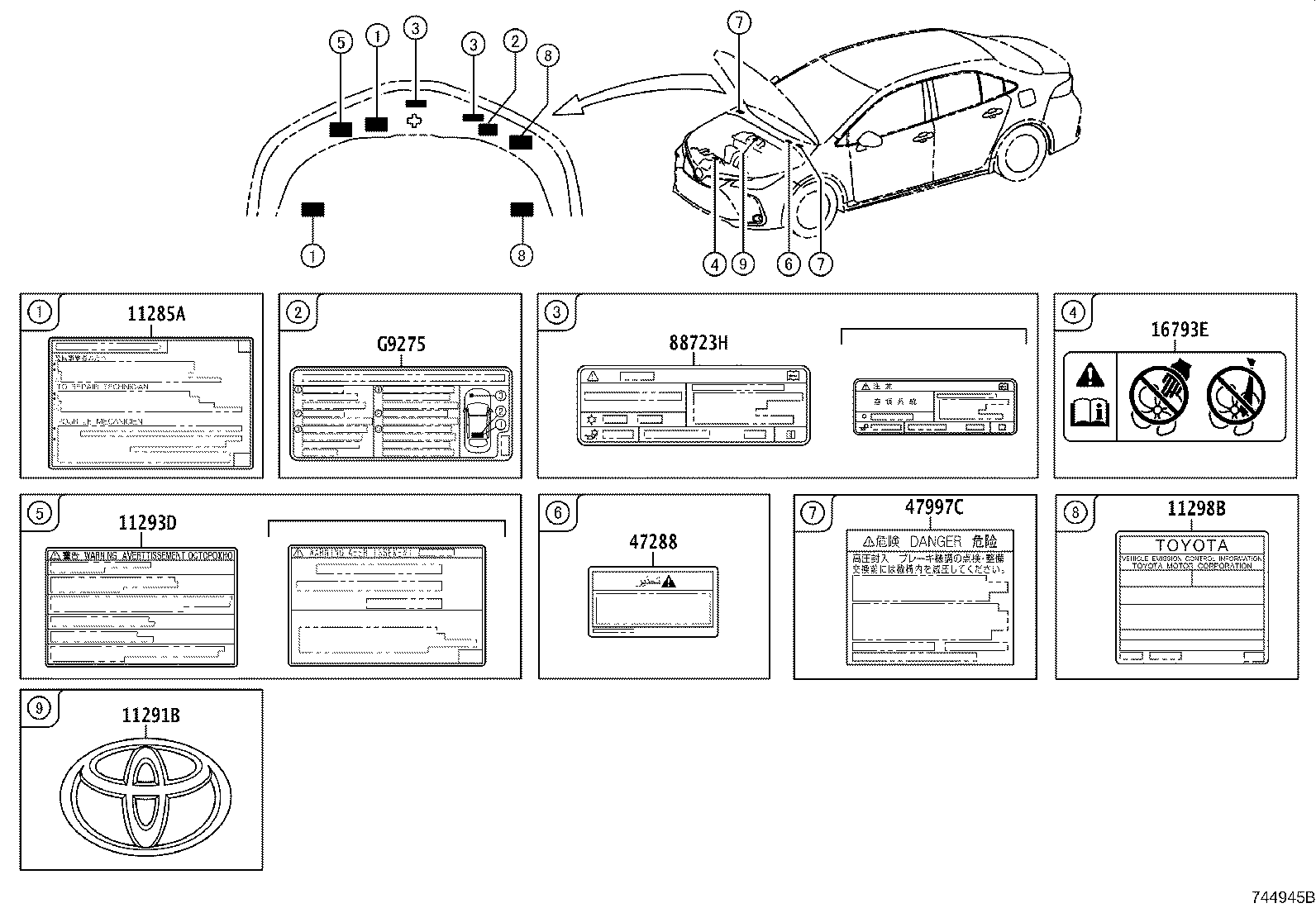

ILLUST NO. 1 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11291B 11293D 11298B 16793E 47288 47997C 88723H G9275
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-37100

1ZRFE,2ZRFE..ZRE21#..GCC,TAIW

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-0T690

2ZRFE..ZRE211..TAIW

 1
11298-0T480

2ZRFE..ZRE211..TAIW

 1
16793E - LABEL, COOLING FAN CAUTION
16793-36030

2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;M15AFKS,M20AFKS,1ZR#,2ZRFBE..MZEA1#,ZRE21#..CVT

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-02450

ZRE211..TAIW

 1

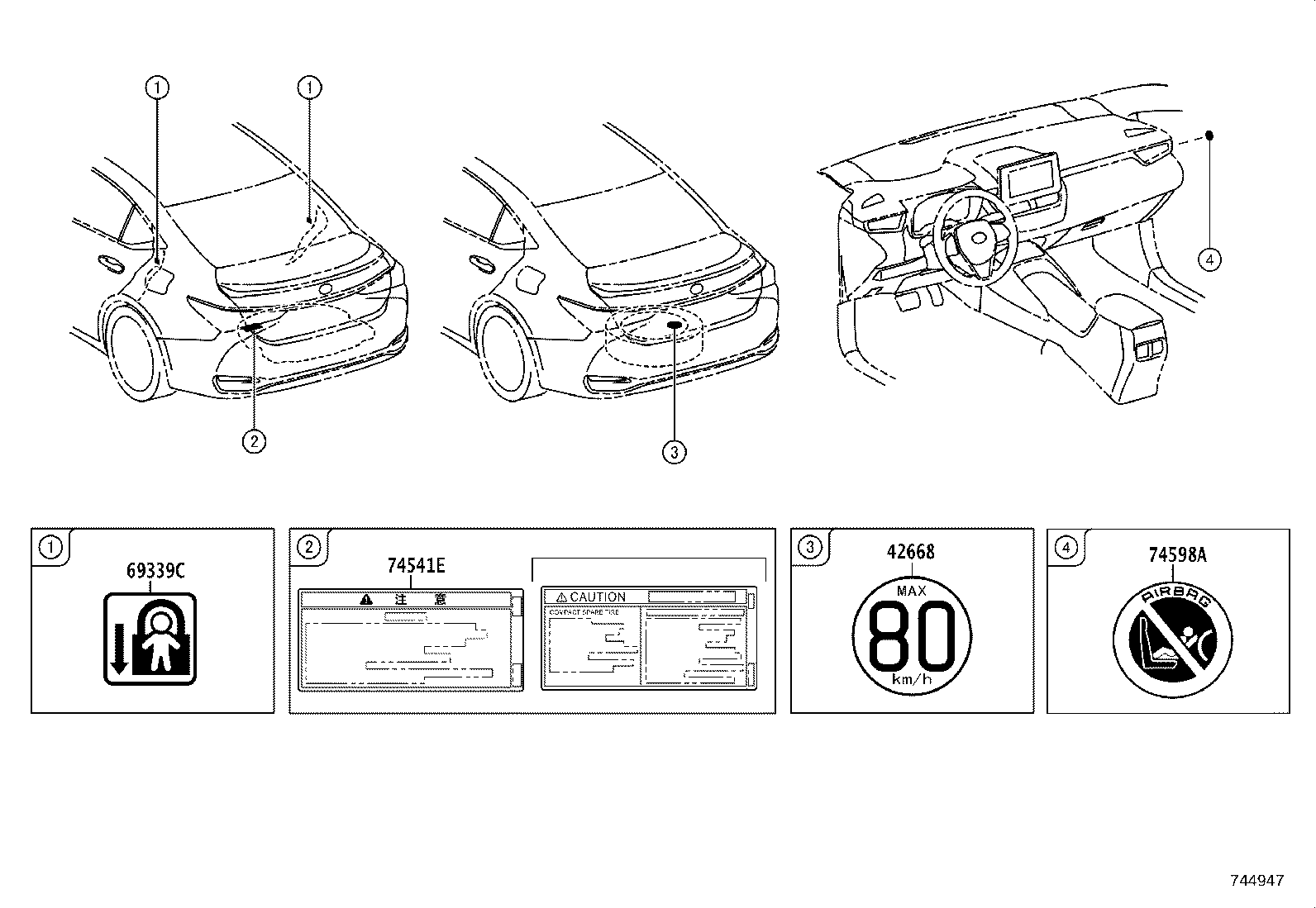

ILLUST NO. 3 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Click highlighted areas on diagram

INTERIOR

diagram 42668 69339C 74541E 74598A
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06070

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-58030

ZRE211,ZWE211..TAIW

SPARE TIRE-TEMPORARY(T125/70D17)

 1

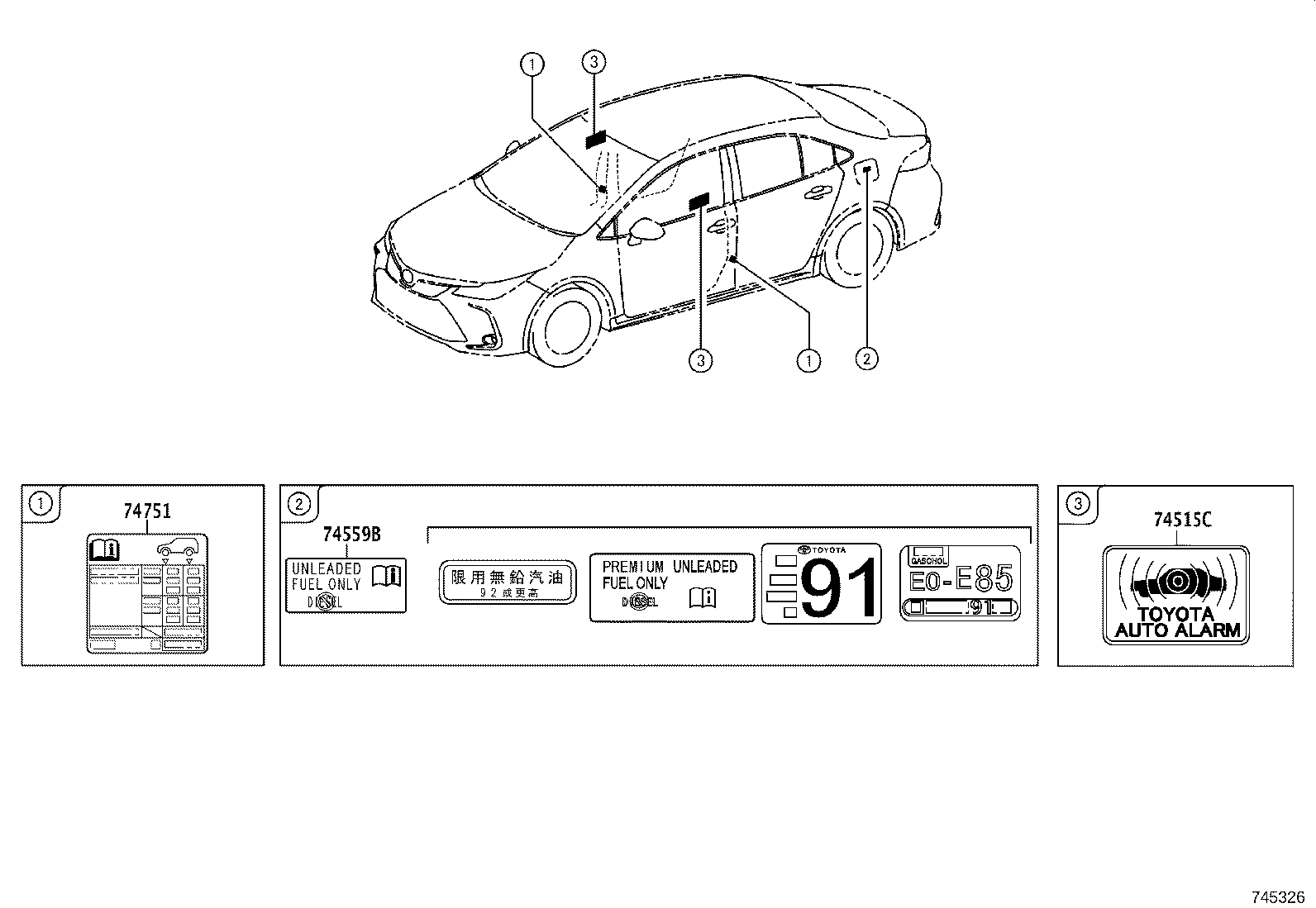

ILLUST NO. 2 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Click highlighted areas on diagram

EXTERIOR

diagram 74515C 74559B 74751
Part # Description Qty Price
74559B - LABEL, FUEL INFORMATION
74579-0B010

ZRE211,ZWE211..TAIW

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-02T20

ZRE211..E..TAIW

SPORTY PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)

 1
42661-02T40

ZRE211..E..TAIW

SPORTY PACKAGE

 1
42661-02T10

ZRE211,ZWE211..TAIW

SPARE TIRE-TEMPORARY(T125/70D17)

 1
42661-02T20

ZRE211..G..TAIW

X PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)

 1
42661-02V10

ZRE211,ZWE211..TAIW

 1
42661-02T40

ZRE211..G..TAIW

X PACKAGE

 1
