ZRE211L-GEXEKR (2019)
Toyota Corolla/Altis
ILLUST NO. 1 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

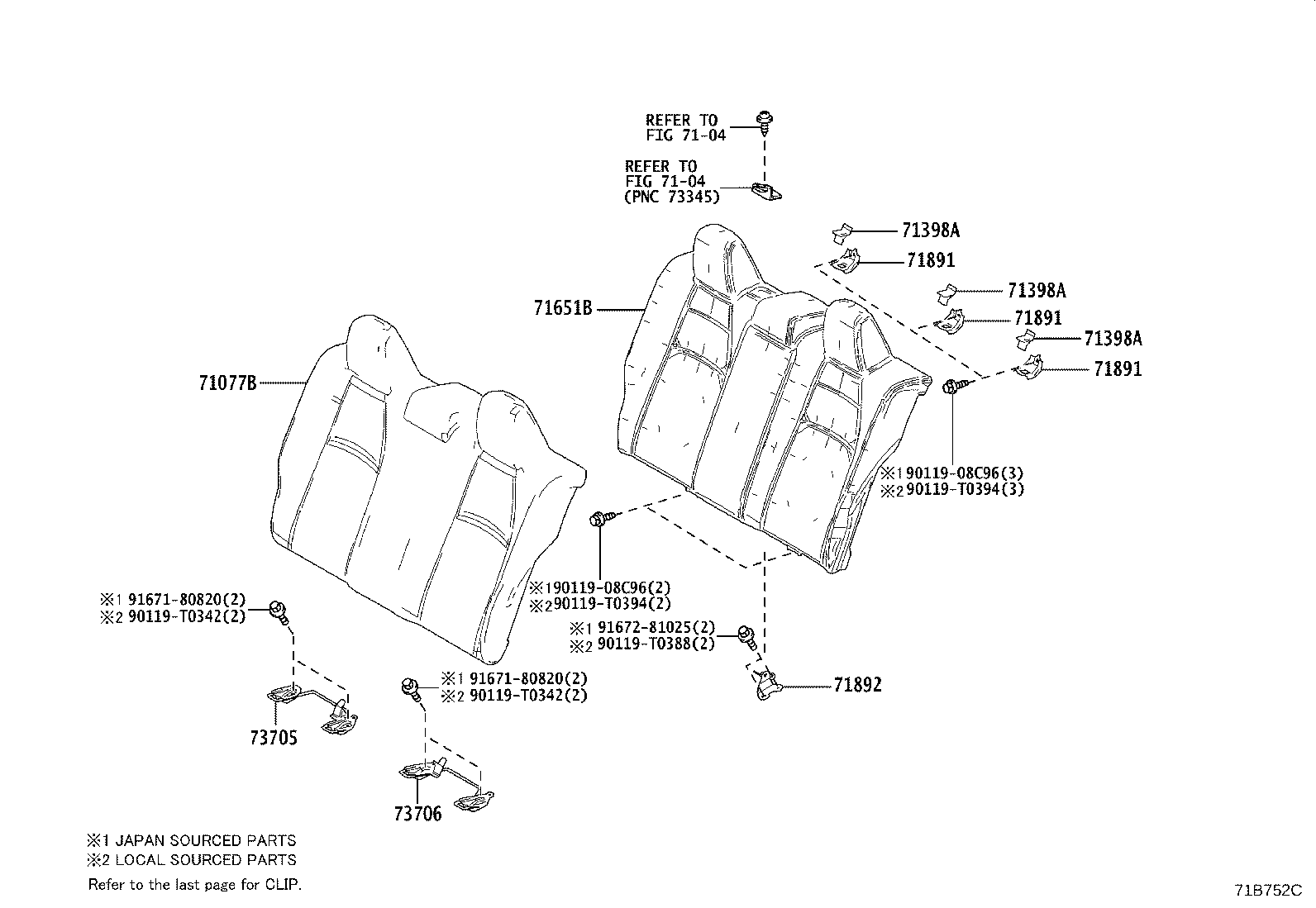

SEAT BACK(FIX TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02360 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-02490 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90119-T0342 | ||||
| 90119-T0388 | ||||
| 90119-T0394 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

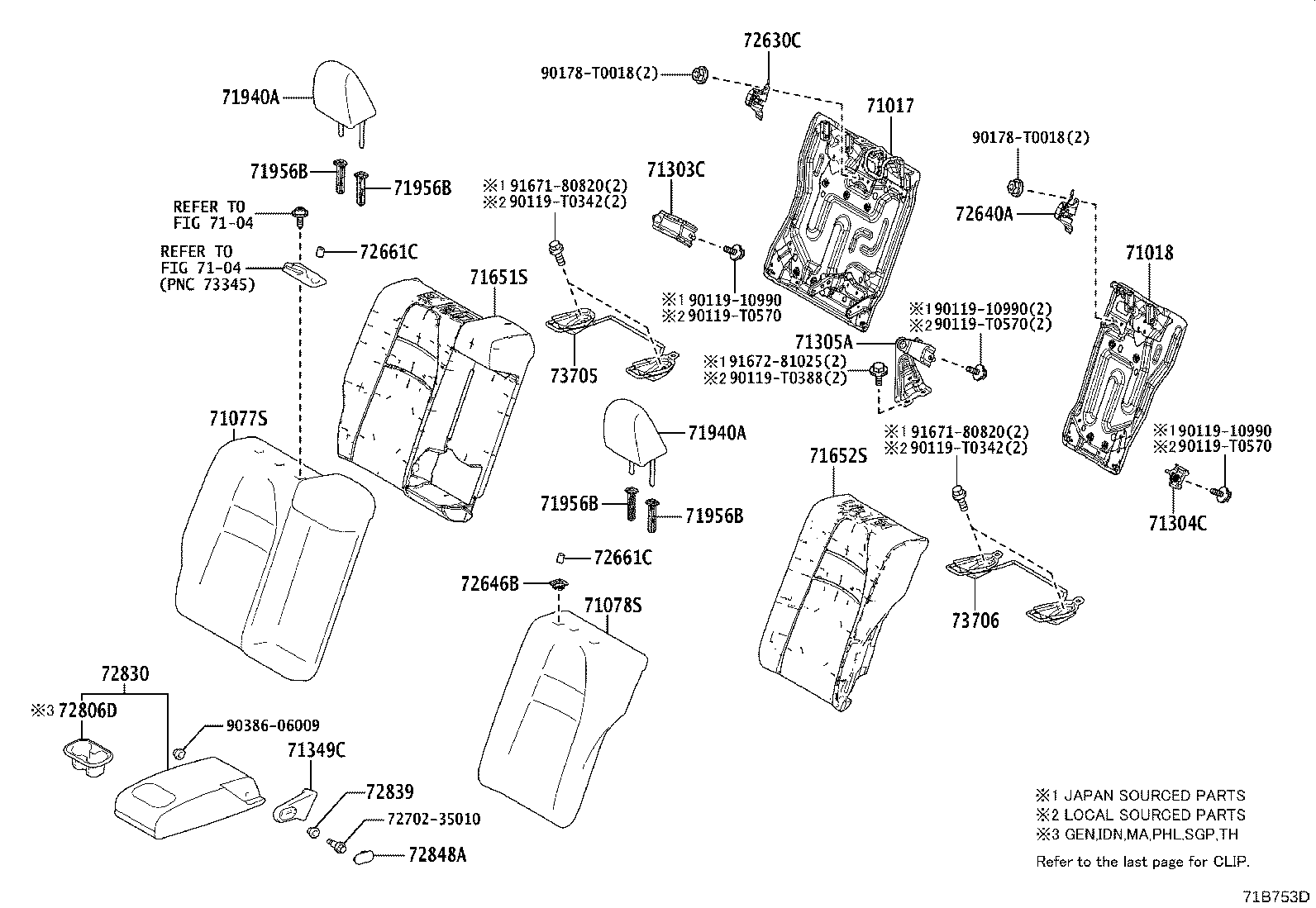

SEAT BACK(FOLDING TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02C40 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02630 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0ZF71C7 |
ZRE211,ZWE211..(G,V)..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71077-0ZF71B5 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71077-0ZF70C5 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
1 | ||
| 71077-0ZF71C5 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
1 | ||
| 71077-0ZF70B5 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71077-0ZF71C8 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71077-0ZF71B6 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71077-0ZF71C9 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0Z290C9 |
ZRE211,ZWE211..TAIW BLACK/BLACK,TRIM2# |
1 | ||
| 71078-0Z29121 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71078-0Z290C8 |
ZRE211,ZWE211..TAIW BLACK/NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71078-0Z291C8 |
ZRE211,ZWE211..TAIW BLACK/NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71078-0Z291C9 |
ZRE211,ZWE211..TAIW BLACK/BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02360 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-02100 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02360 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-02060C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM2# |
1 | ||
| 71349-02060B1 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71349-02060C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM2#,3# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02B20 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02790 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02R90C0 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
2 | ||
| 71940-02R90B0 |
ZRE211,ZWE211..TAIW LT.GRAY,TRIM1# |
2 | ||
| 71940-02R91C2 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
2 | ||
| 71940-02R91B0 |
ZRE211,ZWE211..TAIW LT.GRAY,TRIM1# |
2 | ||
| 71940-02R91C0 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02R90C0 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
2 | ||
| 71940-02R90B0 |
ZRE211,ZWE211..TAIW LT.GRAY,TRIM1# |
2 | ||
| 71940-02R91C2 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
2 | ||
| 71940-02R91B0 |
ZRE211,ZWE211..TAIW LT.GRAY,TRIM1# |
2 | ||
| 71940-02R91C0 |
ZRE211,ZWE211..TAIW BLACK,TRIM2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050B8 |
ZRE211,ZWE211..TAIW W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47030C4 |
ZRE211,ZWE211..(G,V)..TAIW W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211,ZWE211..(G,V)..TAIW W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211..(D,E)..TAIW W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ZRE211..(D,E)..TAIW W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B9 |
ZRE211,ZWE211..TAIW W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050B8 |
ZRE211,ZWE211..TAIW W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47030C4 |
ZRE211,ZWE211..(G,V)..TAIW W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211,ZWE211..(G,V)..TAIW W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211..(D,E)..TAIW W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ZRE211..(D,E)..TAIW W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B9 |
ZRE211,ZWE211..TAIW W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050B8 |
ZRE211,ZWE211..TAIW W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47030C4 |
ZRE211,ZWE211..(G,V)..TAIW W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211,ZWE211..(G,V)..TAIW W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211..(D,E)..TAIW W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ZRE211..(D,E)..TAIW W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B9 |
ZRE211,ZWE211..TAIW W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050B8 |
ZRE211,ZWE211..TAIW W(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 71931-47030C4 |
ZRE211,ZWE211..(G,V)..TAIW W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211,ZWE211..(G,V)..TAIW W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050C5 |
ZRE211..(D,E)..TAIW W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
ZRE211..(D,E)..TAIW W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B9 |
ZRE211,ZWE211..TAIW W/O(LOCK),LT.GRAY,TRIM1# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02190 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02200 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-12100C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 72646-12100C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 72661-35010C1 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 72661-35010C1 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-02M80C2 |
ZRE211..(D,E)..TAIW BALCK,TRIM2# |
1 | ||
| 72830-02M80B2 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 72830-02M80C2 |
ZRE211,ZWE211..(G,V)..TAIW BALCK,TRIM2#,3# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
ZRE211..D,E,G;MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZRE210..CVT..(GEN,PHL,SGP);ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-02030C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM2# |
1 | ||
| 72848-02030B1 |
ZRE211,ZWE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 72848-02030C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM2#,3# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02360 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-02490 |
ZRE211..TAIW;MZEA1#,ZRE210,ZWE211..(N,V)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90119-10990 | ||||
| 90119-T0342 | ||||
| 90119-T0388 | ||||
| 90119-T0570 | ||||
| 90178-T0018 | ||||
| 90386-06009 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G

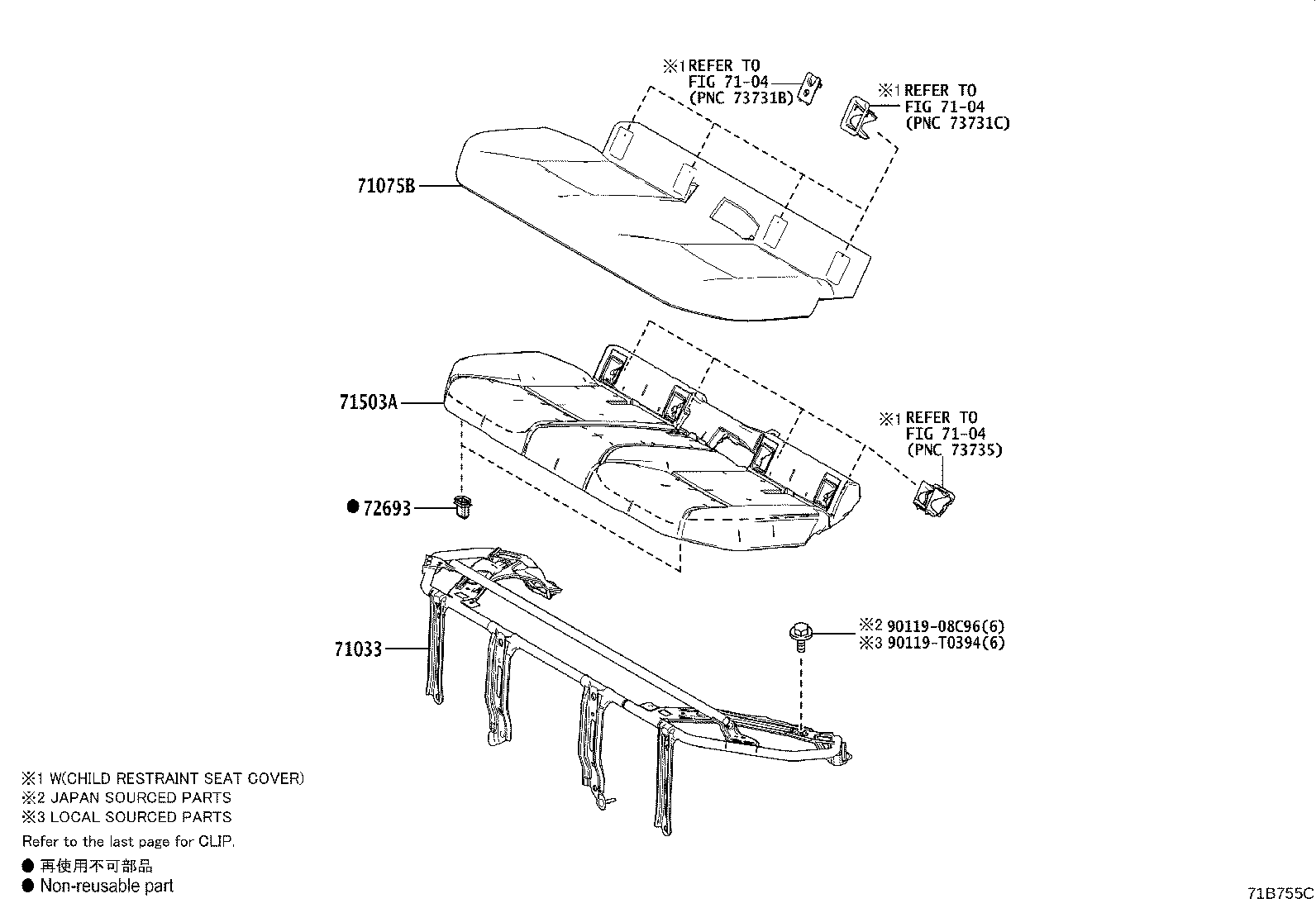

SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0Z590B2 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0Z590C3 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591C5 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71075-0Z591B2 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0Z591C3 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591C6 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71075-0Z591C7 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591B3 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-02750 |
MZEA12,ZRE21# |
1 | ||
| 71503-02751 |
MZEA1#,ZRE21#..GCC,TAIW |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW

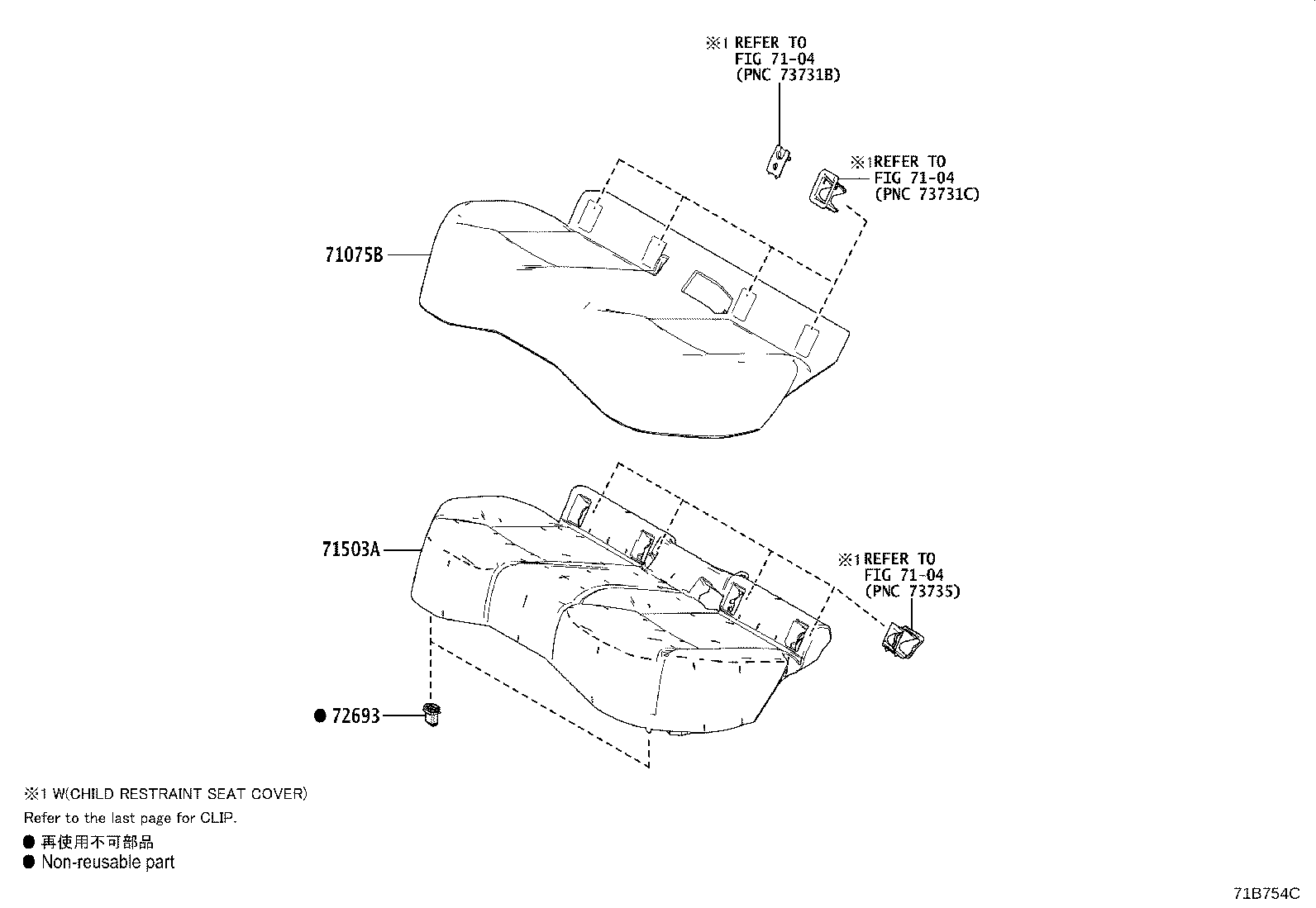

SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0Z590B2 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0Z590C3 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591C5 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71075-0Z591B2 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0Z591C3 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591C6 |
ZRE211..G..TAIW BLACK/DK.CRIMSON,TRIM3# |
1 | ||
| 71075-0Z591C7 |
ZRE211..TAIW BLACK,TRIM2# |
1 | ||
| 71075-0Z591B3 |
ZRE211..TAIW NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-02750 |
MZEA12,ZRE21# |
1 | ||
| 71503-02751 |
MZEA1#,ZRE21#..GCC,TAIW |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90119-T0394 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 3 OF 3(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

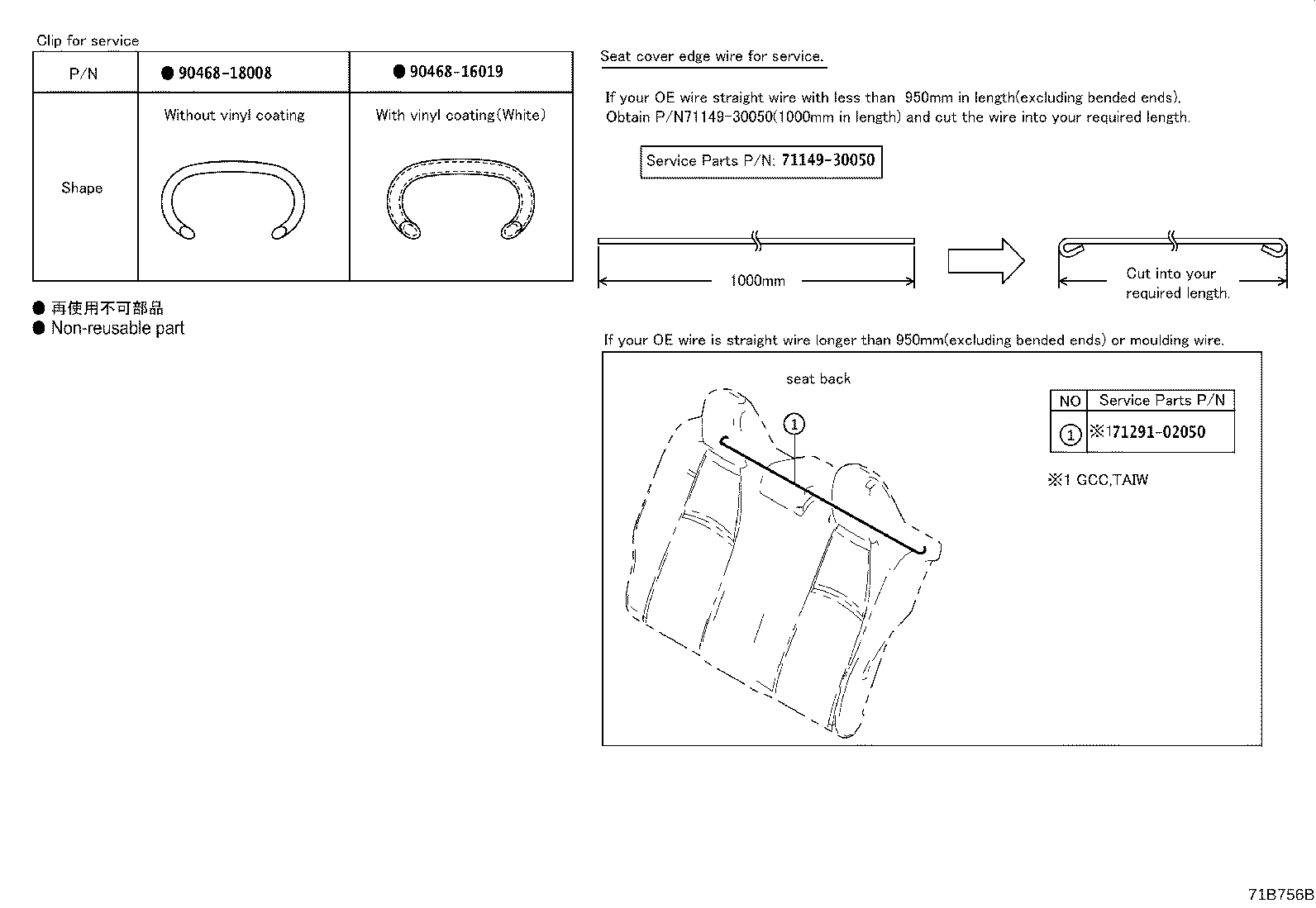

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71291-02050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
