ZRE211L-GEXEKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )ZRE211..TAIW

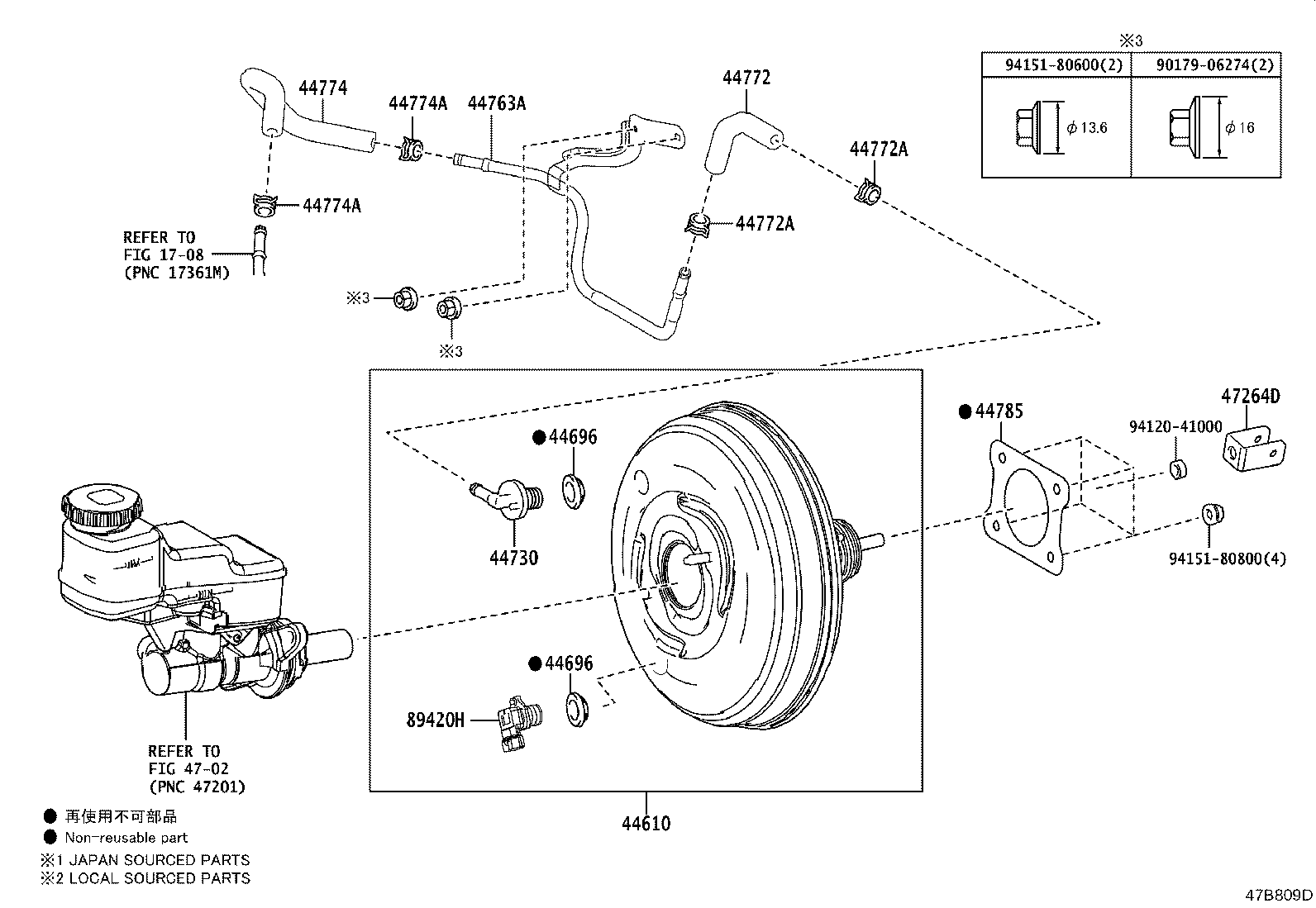

Click highlighted areas on diagram

diagram 1708 44610 44696 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 47264D 89420H 9017906274 9412041000 9415180600 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02G30

ZRE211..TAIW

 1
44696 - GROMMET, CHECK VALVE
90480-24439

MZEA1#,ZRE211..LHD

 2
44696 - GROMMET, CHECK VALVE
90480-24439

MZEA1#,ZRE211..LHD

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010

MZEA1#,ZRE211..LHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02360

ZRE211..TAIW

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02220

ZRE211..TAIW

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MZEA1#,ZRE211..LHD

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

MZEA1#,ZRE211..LHD

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A30

ZRE211..TAIW

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211..TAIW

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZRE211..TAIW

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE211..D,E,G;MZEA12,ZRE210..CVT

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02120

MZEA1#,ZRE21#..GCC,TAIW

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

ZRE211..D,E,G;ZRE210..CVT..(GCC,GEN,PHL,TH)

 1
Common parts
90179-06274
94120-41000
94151-80600
94151-80800
Linked diagrams
1708
4702
