Toyota Corolla/altis ZRE211 VACUUM PIPING

ZRE211L-GEXEKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999

Engine 2ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

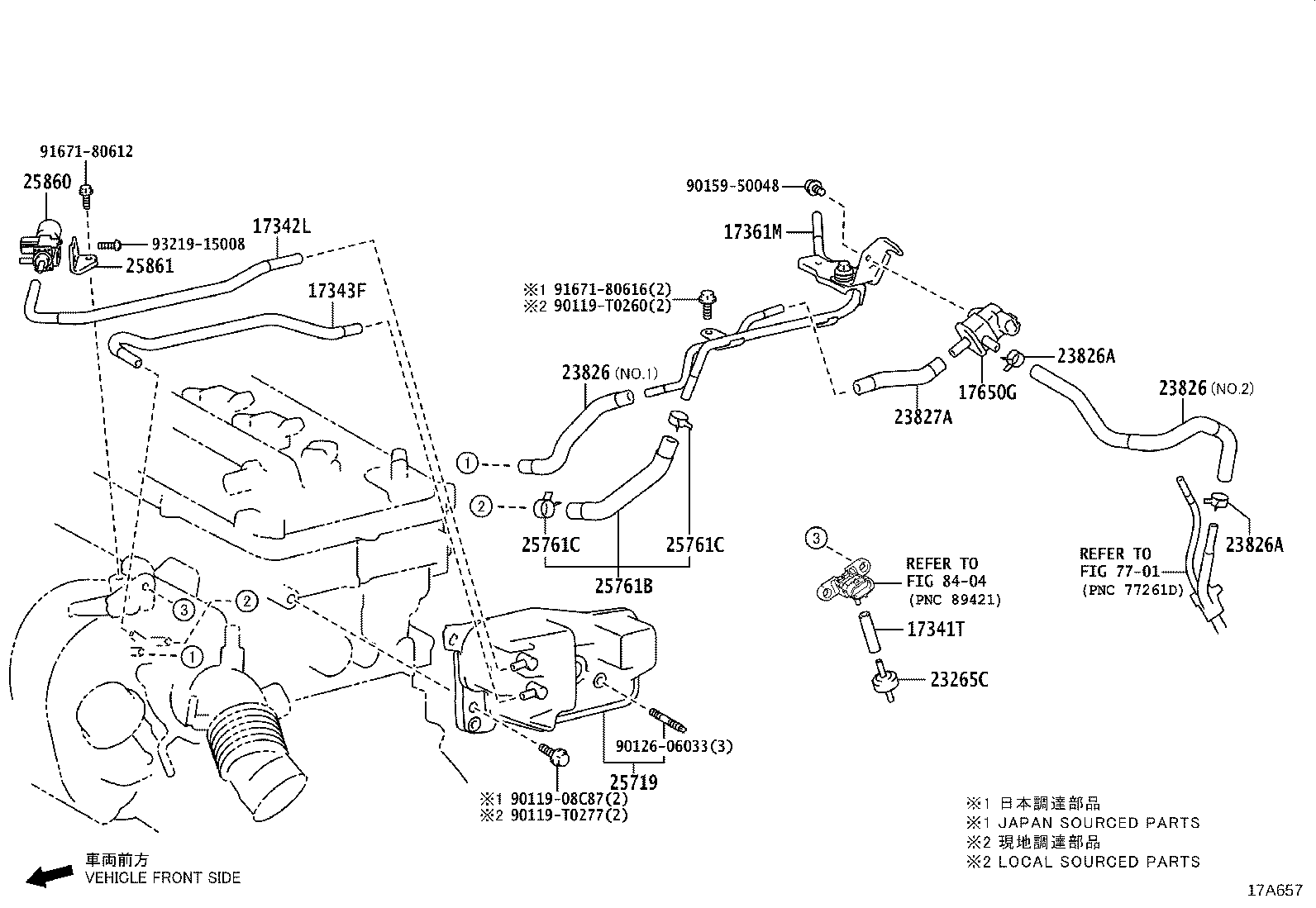

(1904- )2ZRFE..TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341T - HOSE, AIR, NO.1
17341-37080	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17341-0T080	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17342L - HOSE, AIR, NO.2
17342-37060	2ZRFBE,2ZRFE..ZRE211..D,E,G (J)	04/2019 - 12/2999	1
17342-0T060	2ZRFBE,2ZRFE..ZRE211..D,E,G (L)	04/2019 - 12/2999	1
17343F - HOSE, AIR, NO.3
17343-0T010	2ZRFBE,2ZRFE..ZRE211..D,E,G (L)	04/2019 - 12/2999	1
17343-37040	2ZRFBE,2ZRFE..ZRE211..D,E,G (J)	04/2019 - 12/2999	1
17361M - TUBE, AIR
17361-0T050	2ZRFE..ZRE211..TAIW (L)	04/2019 - 12/2999	1
17361-37070	2ZRFE..ZRE211..TAIW (J)	04/2019 - 12/2999	1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
23265C - FILTER, GAS
90917-11030	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T450	1ZRFE,2ZRFE..ZRE21#..GCC,TAIW NO.2	04/2019 - 12/2999	1
23826-0T130	2ZRFE..ZRE211..TAIW (L),NO.1	04/2019 - 12/2999	1
23826-37190	2ZRFE..ZRE211..TAIW (J),NO.1	04/2019 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T450	1ZRFE,2ZRFE..ZRE21#..GCC,TAIW NO.2	04/2019 - 12/2999	1
23826-0T130	2ZRFE..ZRE211..TAIW (L),NO.1	04/2019 - 12/2999	1
23826-37190	2ZRFE..ZRE211..TAIW (J),NO.1	04/2019 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37060	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
23827-0T060	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
25719 - TANK, VACUUM SURGE
25719-37011	2ZRFBE,2ZRFE..ZRE211..D,E,G	04/2019 - 12/2999	1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-37080	2ZRFE..ZRE211..TAIW	04/2019 - 12/2999	1
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1)
96133-41500	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12281	1ZRFAE,2ZRFBE,2ZRFE..ZRE21#..D,E,G	04/2019 - 12/2999	1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37010	1ZRFAE,2ZRFBE,2ZRFE..ZRE21#..D,E,G	04/2019 - 12/2999	1
Common parts
90119-08C87
90119-T0260
90119-T0277
90126-06033
90159-50048
91671-80612
91671-80616
93219-15008
Linked diagrams
7701
8404

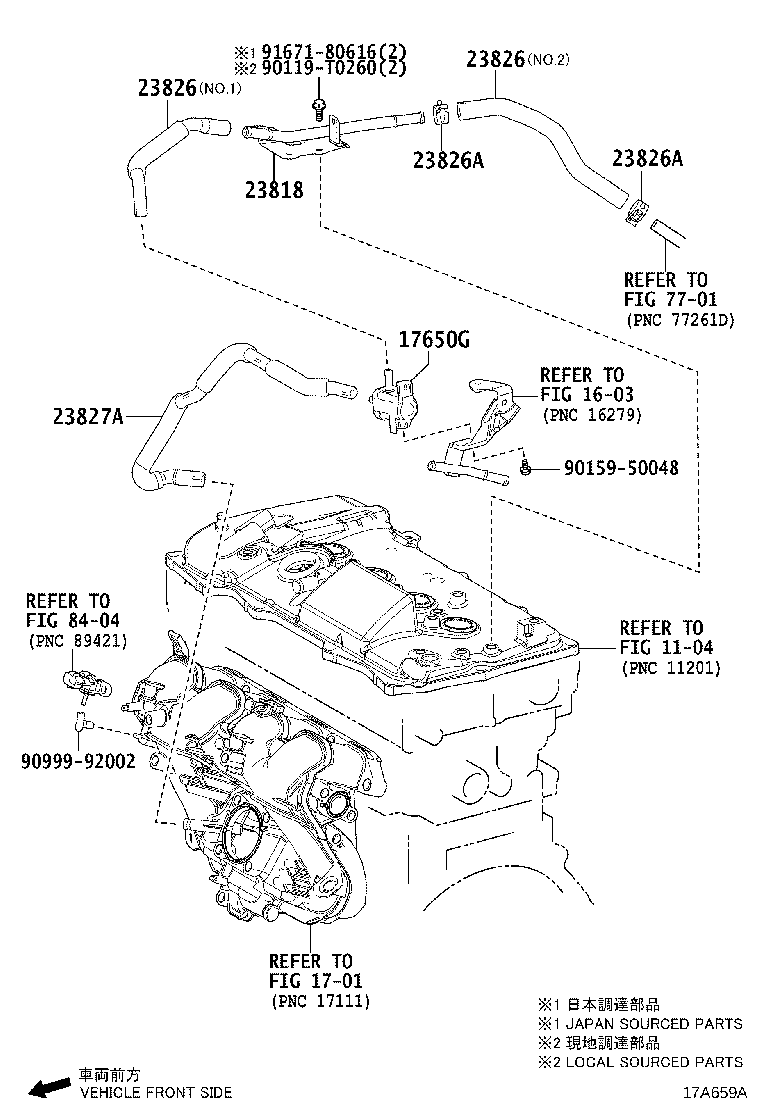

(1904- )2ZRFXE..E,G,V..TH;2ZRFXE..GCC,GEN,IDN,MA,PHL,SGP,TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T450	1ZRFE,2ZRFE..ZRE21#..GCC,TAIW NO.2	04/2019 - 12/2999	1
23826-0T130	2ZRFE..ZRE211..TAIW (L),NO.1	04/2019 - 12/2999	1
23826-37190	2ZRFE..ZRE211..TAIW (J),NO.1	04/2019 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T450	1ZRFE,2ZRFE..ZRE21#..GCC,TAIW NO.2	04/2019 - 12/2999	1
23826-0T130	2ZRFE..ZRE211..TAIW (L),NO.1	04/2019 - 12/2999	1
23826-37190	2ZRFE..ZRE211..TAIW (J),NO.1	04/2019 - 12/2999	1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37060	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
23827-0T060	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
Common parts
90119-T0260
90159-50048
90999-92002
91671-80616
Linked diagrams
1104
1603
1701
7701
8404
