Toyota Corolla/altis ZRE211 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZRE211L-GEXDKR (2019)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZRE211L-GEXDKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999

Engine 2ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1904- )LHD

Click highlighted areas on diagram

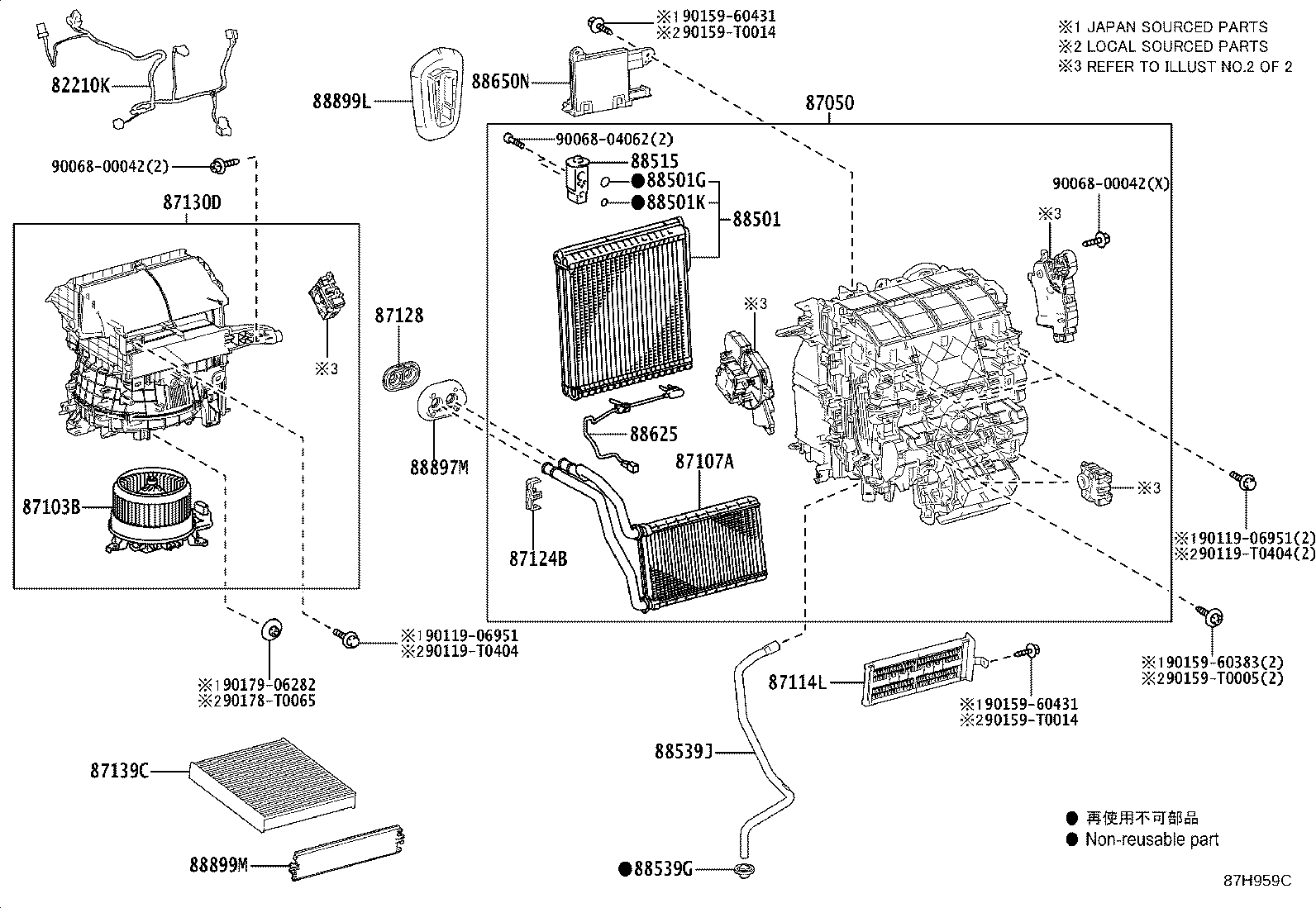

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02530	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02340	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87124B - CLAMP, HEATER
87124-06130	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-02180	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90068-00042
90068-04062
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282

ILLUST NO. 1 OF 2(1904- )LHD

Click highlighted areas on diagram

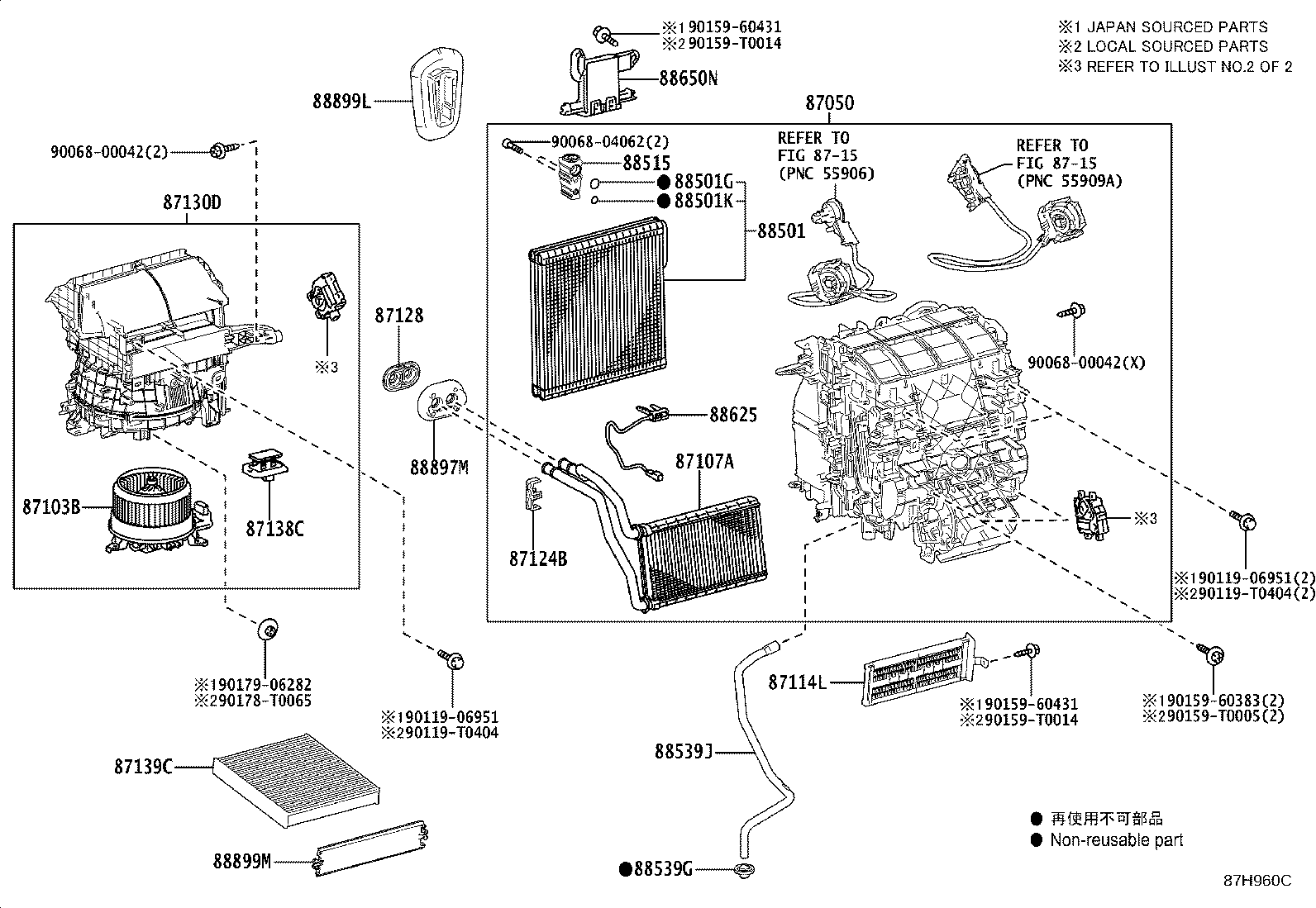

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02340	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87124B - CLAMP, HEATER
87124-06130	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-02220	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-02180	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90119-06951
90159-60383
90159-60431
90159-T0014
90179-06282
Linked diagrams
8715

ILLUST NO. 1 OF 2(1904- )LHD

Click highlighted areas on diagram

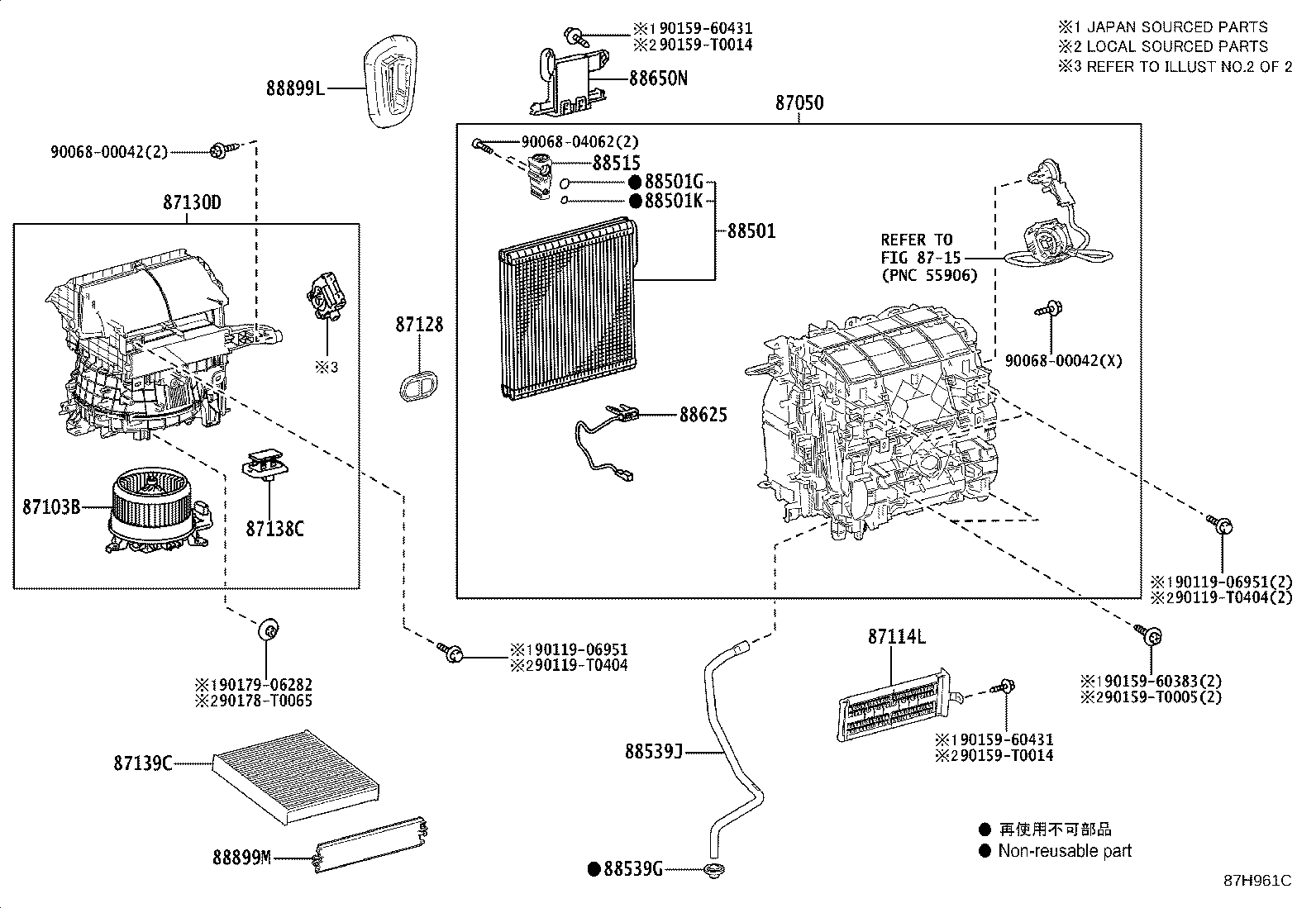

MANUAL COOLER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-02220	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90068-00042
90068-04062
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282
Linked diagrams
8715

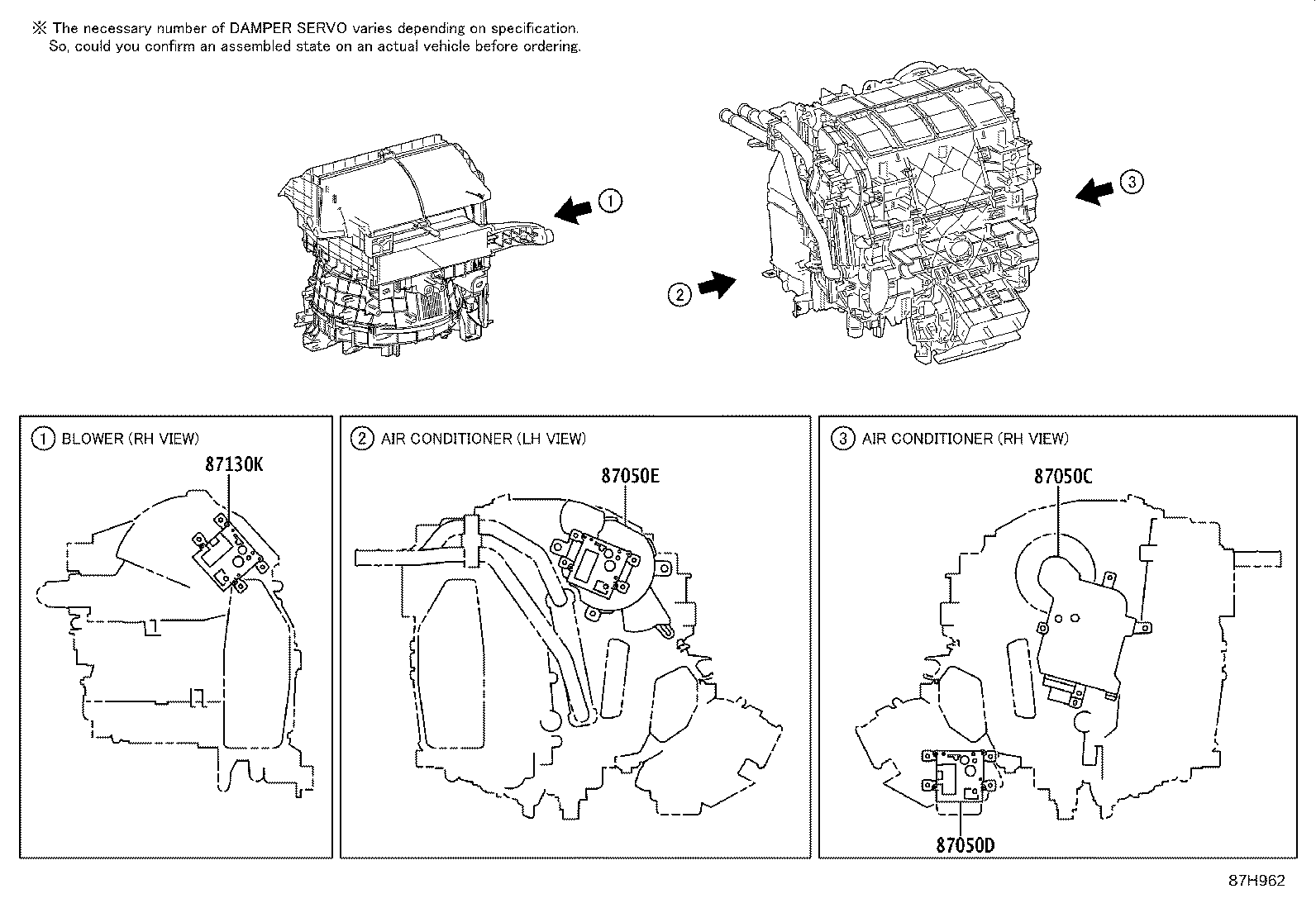

ILLUST NO. 2 OF 2(1904- )LHD

Click highlighted areas on diagram

DAMPER SERVO

Part #	Description	Period	Qty
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-02790	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-02B00	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87106-02800	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02810	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87106-02A80	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02530	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02340	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87124B - CLAMP, HEATER
87124-06130	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-02180	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90068-00042
90068-04062
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02340	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87124B - CLAMP, HEATER
87124-06130	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-02220	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-02180	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90068-00042
90068-04062
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282
Linked diagrams
8715

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

MANUAL COOLER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZB20	ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050-0ZF90	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02630	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87103-02580	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87114L - COVER, HEATER, NO.2
87114-02220	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(MA,TAIW,TH);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
87130D - BLOWER ASSY
87130-02B70	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130-02C50	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-02220	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02220	ZRE211,ZWE211..TAIW POLLEN FILTER	04/2019 - 12/2999	1
87139-58010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW DEODORANT FILTER	04/2019 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02580	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-02700	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-47060	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02170	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12D60	MZEA1#,ZRE21#..(D,N)..(GCC,GEN,TAIW)	04/2019 - 12/2999	1
88650-02E40	ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TAIW,TH)	04/2019 - 12/2999	1
88899L - PARTS, COOLING UNIT
88899-02410	MZEA1#,ZRE21#..GCC,TAIW	04/2019 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88548-02200	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90068-00042
90068-04062
90119-06951
90119-T0404
90159-60383
90159-60431
90159-T0005
90159-T0014
90178-T0065
90179-06282
Linked diagrams
8715

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

DAMPER SERVO

Part #	Description	Period	Qty
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-02790	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-02B00	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1
87106-02800	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02810	ZWE211..GCC,TAIW;ZRE211..(E,G)..TAIW	04/2019 - 12/2999	1
87106-02A80	MZEA1#,ZRE21#..LHD..CVT..(D,N)	04/2019 - 12/2999	1

ZRE211L-GEXDKR (2019)

ILLUST NO. 1 OF 2(1904- )LHD

ILLUST NO. 1 OF 2(1904- )LHD

ILLUST NO. 1 OF 2(1904- )LHD

ILLUST NO. 2 OF 2(1904- )LHD

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Part Price Details
