ZRE211L-GEXDKR (2019)
Toyota Corolla/Altis
Production
Apr 2019
-
Sep 9999
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

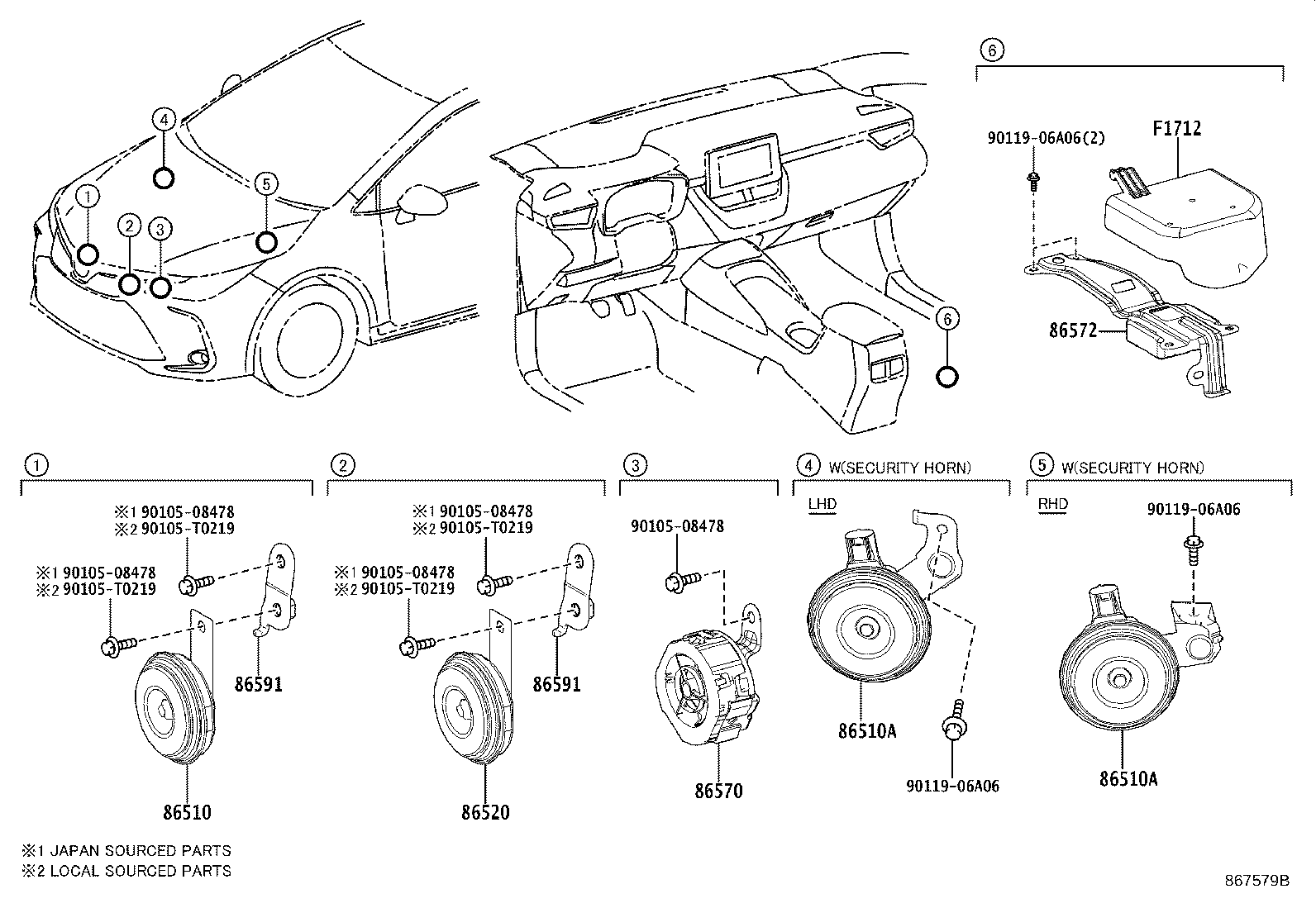

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-02080 |
ZRE211,ZWE211..TAIW |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-12090 |
ZRE211..TAIW |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-02210 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
2 | ||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
2 | ||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90119-06A06 | ||||

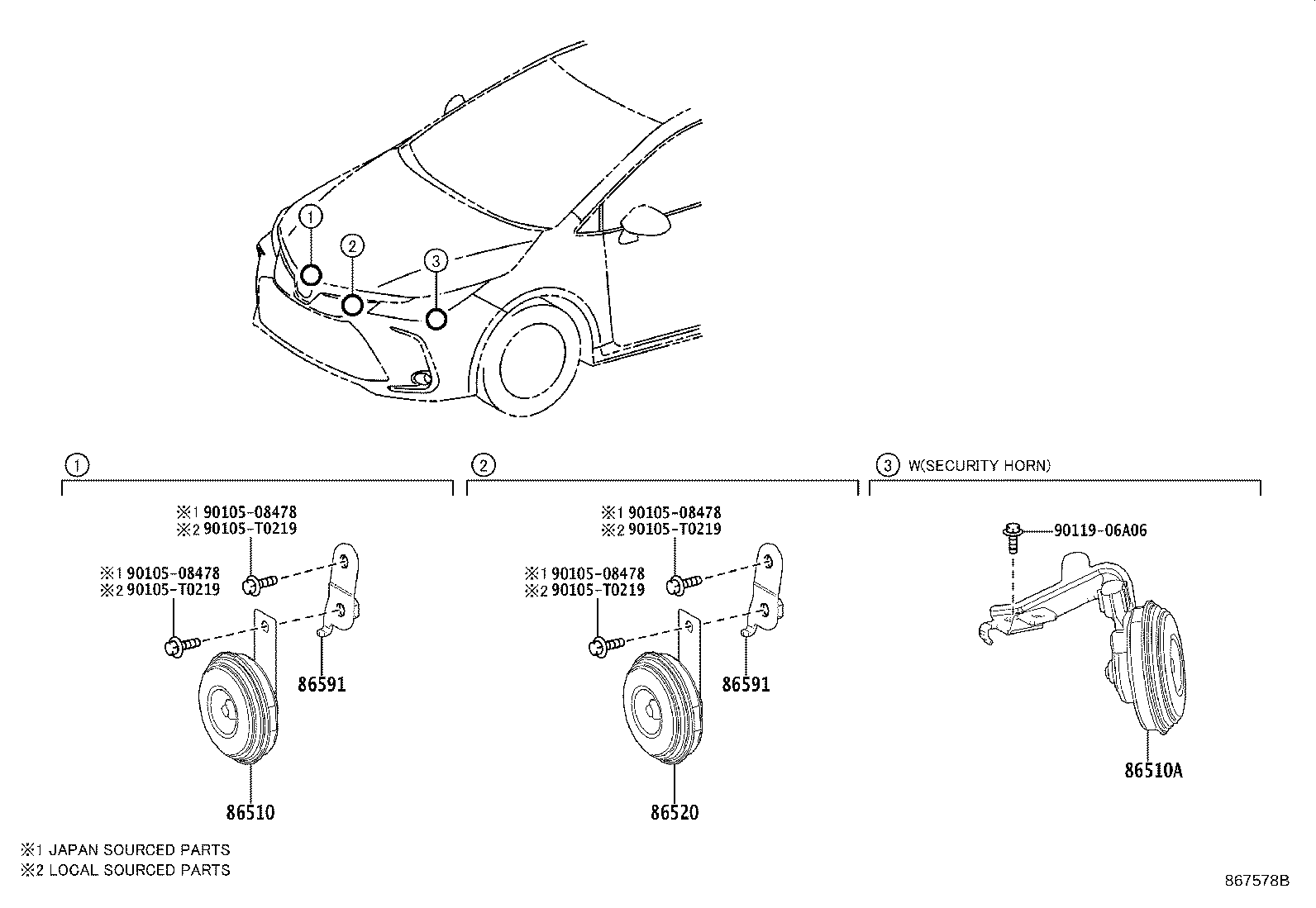

(1904- )ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-02080 |
ZRE211,ZWE211..TAIW |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-12090 |
ZRE211..TAIW |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-12090 |
ZRE211..TAIW |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-02210 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
2 | ||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
2 | ||
| 86591-02040 |
ZRE211,ZWE211..TAIW |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90119-06A06 | ||||
