ZRE211L-GEXDKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

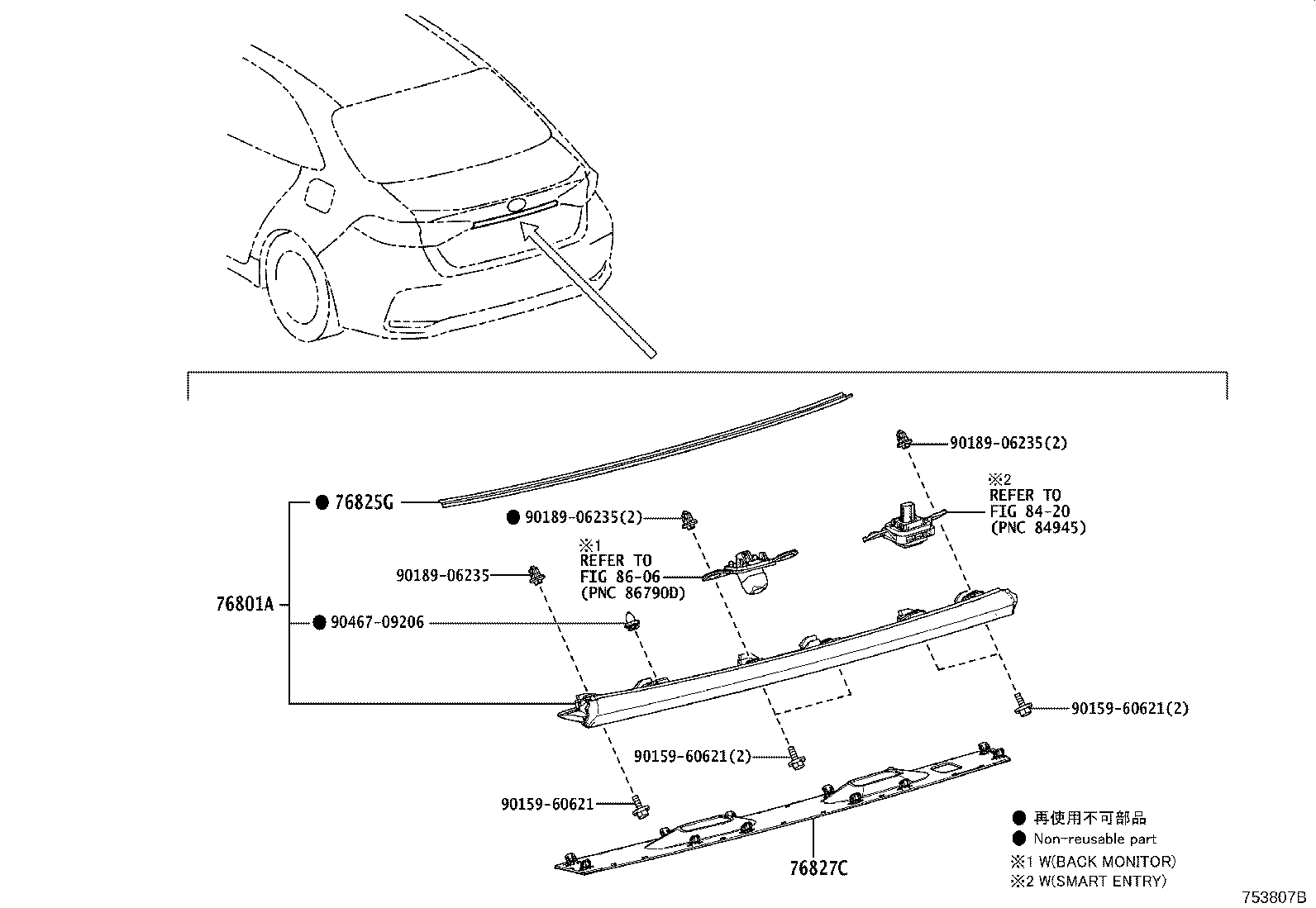

Click highlighted areas on diagram

diagram 76801A 76825G 76827C 8420 8606 9015960621 9015960621 9015960621 9018906235 9018906235 9018906235 9046709206
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02L40

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-02380

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
76827C - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2
76827-02200

ZRE211..E..TAIW

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

 1
76827-02190

MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E)

 1
76827-02200

MZEA1#,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)

 1
Common parts
90159-60621
90189-06235
90467-09206
Linked diagrams
8420
8606
