ZRE211L-GEXDKR (2019)
Toyota Corolla/Altis
(1904- )MZEA1#,ZRE21#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02310 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02210 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-02R40C0 |
ZRE211..G..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58510-02R40C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58511-02260 |
ZRE211..TAIW |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-07042C4 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 90467-07042C4 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
4 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
4 | ||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 64726-10020C2 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
4 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
4 | ||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 64726-10020C2 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58565B - CLIP | ||||
| 90467-05164C7 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-05164C7 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58565B - CLIP | ||||
| 90467-05164C7 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-05164C7 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-02140C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 58569-02140C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| Common parts | ||||
| 90467-13079 | ||||
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,SGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-02350 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02310 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02210 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-02R40C0 |
ZRE211..G..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58510-02R40C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58511-02260 |
ZRE211..TAIW |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-07042C4 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 90467-07042C4 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
4 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
4 | ||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 64726-10020C2 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
4 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-0704923 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
4 | ||
| 90467-0704923 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 64726-10020C2 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58565B - CLIP | ||||
| 90467-05164C7 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-05164C7 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58565B - CLIP | ||||
| 90467-05164C7 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
2 | ||
| 90467-05164C7 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
2 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-02140C0 |
ZRE211..(D,E)..TAIW BLACK,TRIM1#,2# |
1 | ||
| 58569-02140C0 |
ZRE211,ZWE211..(G,V)..TAIW BLACK,TRIM1#,2#,3# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| Common parts | ||||
| 90467-05172 | ||||
| 90467-08226 | ||||
| 90467-13079 | ||||
| 90467-T0019 | ||||

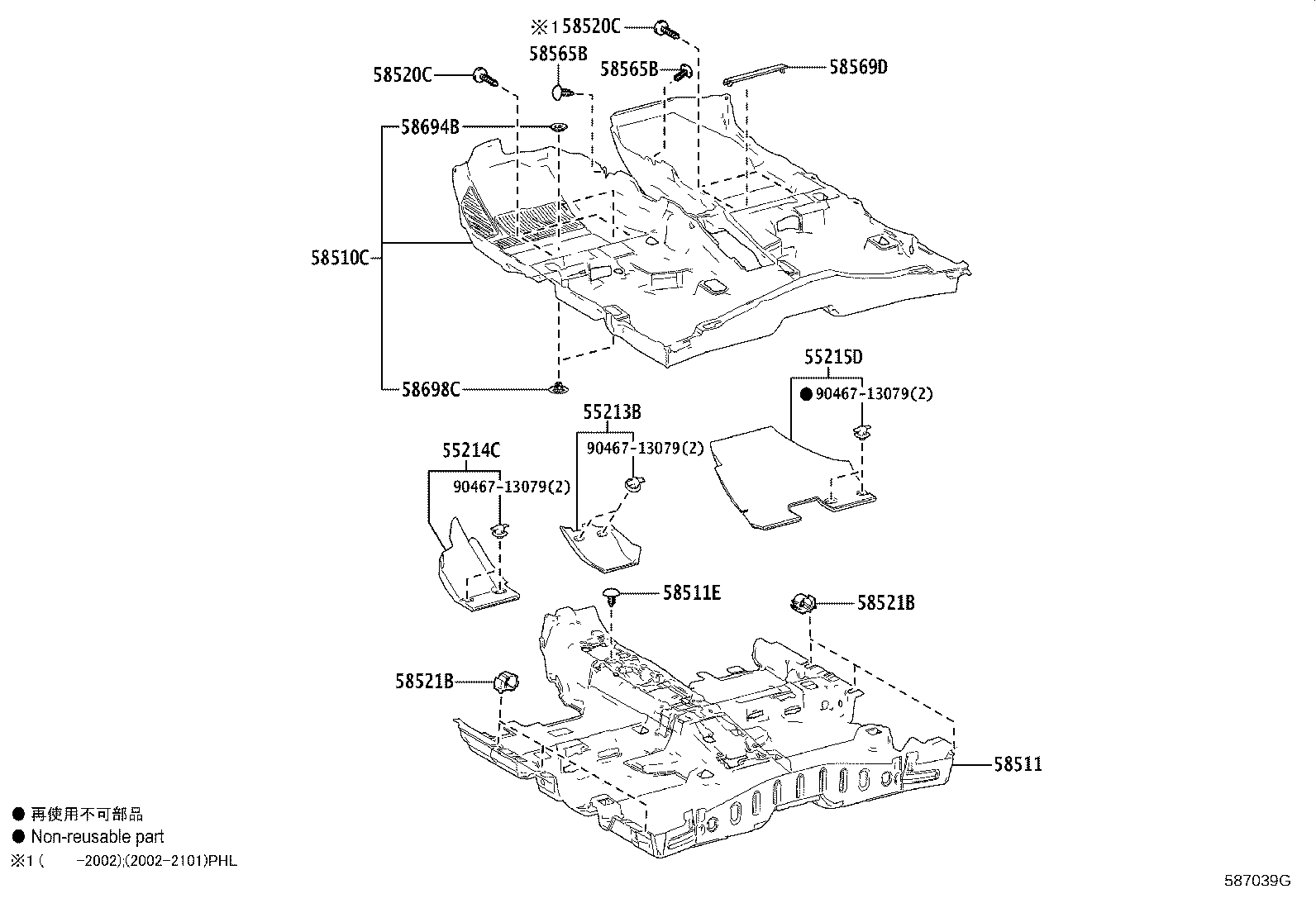

| Linked diagrams | ||||
| 8201 | ||||
