Toyota Corolla/altis ZRE211 MANIFOLD

ZRE211L-GEXDKR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999

Engine 2ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

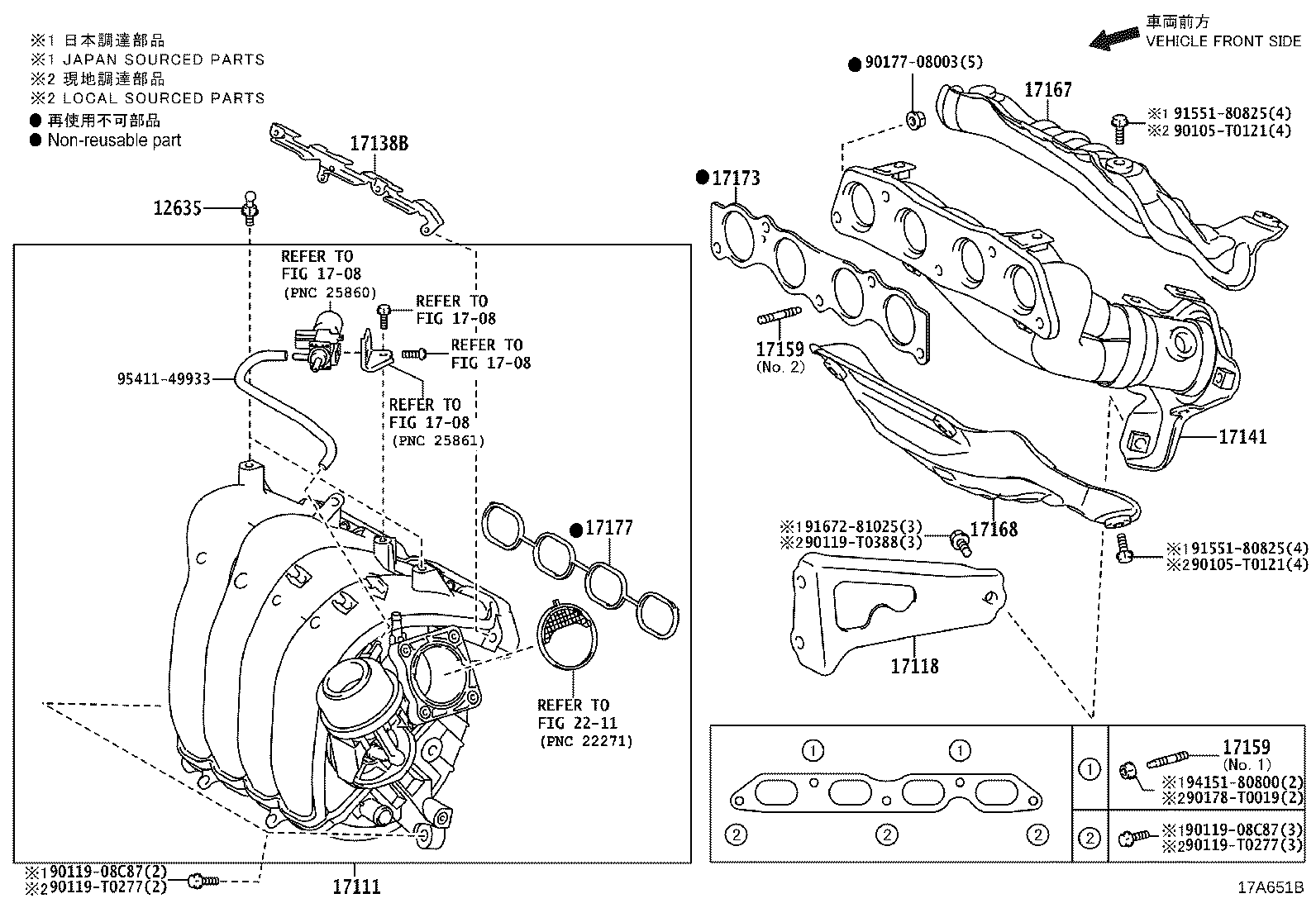

(1904- )1ZRFAE,2ZRFBE,2ZRFE..D,E,G

Click highlighted areas on diagram

Part #	Description	Period	Qty
12635 - JOINT, ENGINE COVER
90109-T0062	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	2
90109-06385	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	2
17111 - MANIFOLD, INTAKE
17120-0T100	2ZRFBE,2ZRFE..ZRE211..D,E,G (L)	04/2019 - 12/2999	1
17120-37070	2ZRFBE,2ZRFE..ZRE211..D,E,G (J)	04/2019 - 12/2999	1
17118 - STAY, MANIFOLD
17118-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17118-37010	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17138B - STAY, INTAKE MANIFOLD
17138-37011	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17138-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17141-37250	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17141-0T130	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-T0016	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.2	04/2019 - 12/2999	5
90126-08052	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.2	04/2019 - 12/2999	5
90126-08026	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.1	04/2019 - 12/2999	2
90126-T0003	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.1	04/2019 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-T0016	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.2	04/2019 - 12/2999	5
90126-08052	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.2	04/2019 - 12/2999	5
90126-08026	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.1	04/2019 - 12/2999	2
90126-T0003	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.1	04/2019 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37110	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17167-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0T140	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17168-37130	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
17173-0T041	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L)	04/2019 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
17177-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
Common parts
90105-T0121
90119-08C87
90119-T0277
90119-T0388
90177-08003
90178-T0019
91551-80825
91672-81025
94151-80800
95411-49933
Linked diagrams
1708
2211

(1904- )2ZRFXE..E,G,V..TH;2ZRFXE..GCC,GEN,IDN,MA,PHL,SGP,TAIW

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-0T100	2ZRFBE,2ZRFE..ZRE211..D,E,G (L)	04/2019 - 12/2999	1
17120-37070	2ZRFBE,2ZRFE..ZRE211..D,E,G (J)	04/2019 - 12/2999	1
17118 - STAY, MANIFOLD
17118-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17118-37010	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17141-37250	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17141-0T130	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-T0016	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.2	04/2019 - 12/2999	5
90126-08052	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.2	04/2019 - 12/2999	5
90126-08026	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.1	04/2019 - 12/2999	2
90126-T0003	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.1	04/2019 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-T0016	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.2	04/2019 - 12/2999	5
90126-08052	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.2	04/2019 - 12/2999	5
90126-08026	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J),NO.1	04/2019 - 12/2999	2
90126-T0003	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L),NO.1	04/2019 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37110	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17167-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0T140	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17168-37130	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (J)	04/2019 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
17173-0T041	2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (L)	04/2019 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
17177-0T040	2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
Common parts
90119-08C87
90119-T0260
90119-T0277
90119-T0388
90177-08003
90178-T0019
91671-80616
91672-81025
94151-80800
Linked diagrams
2211

ZRE211L-GEXDKR (2019)

(1904- )1ZRFAE,2ZRFBE,2ZRFE..D,E,G

(1904- )2ZRFXE..E,G,V..TH;2ZRFXE..GCC,GEN,IDN,MA,PHL,SGP,TAIW
