ZRE210R-GEXGPZ (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

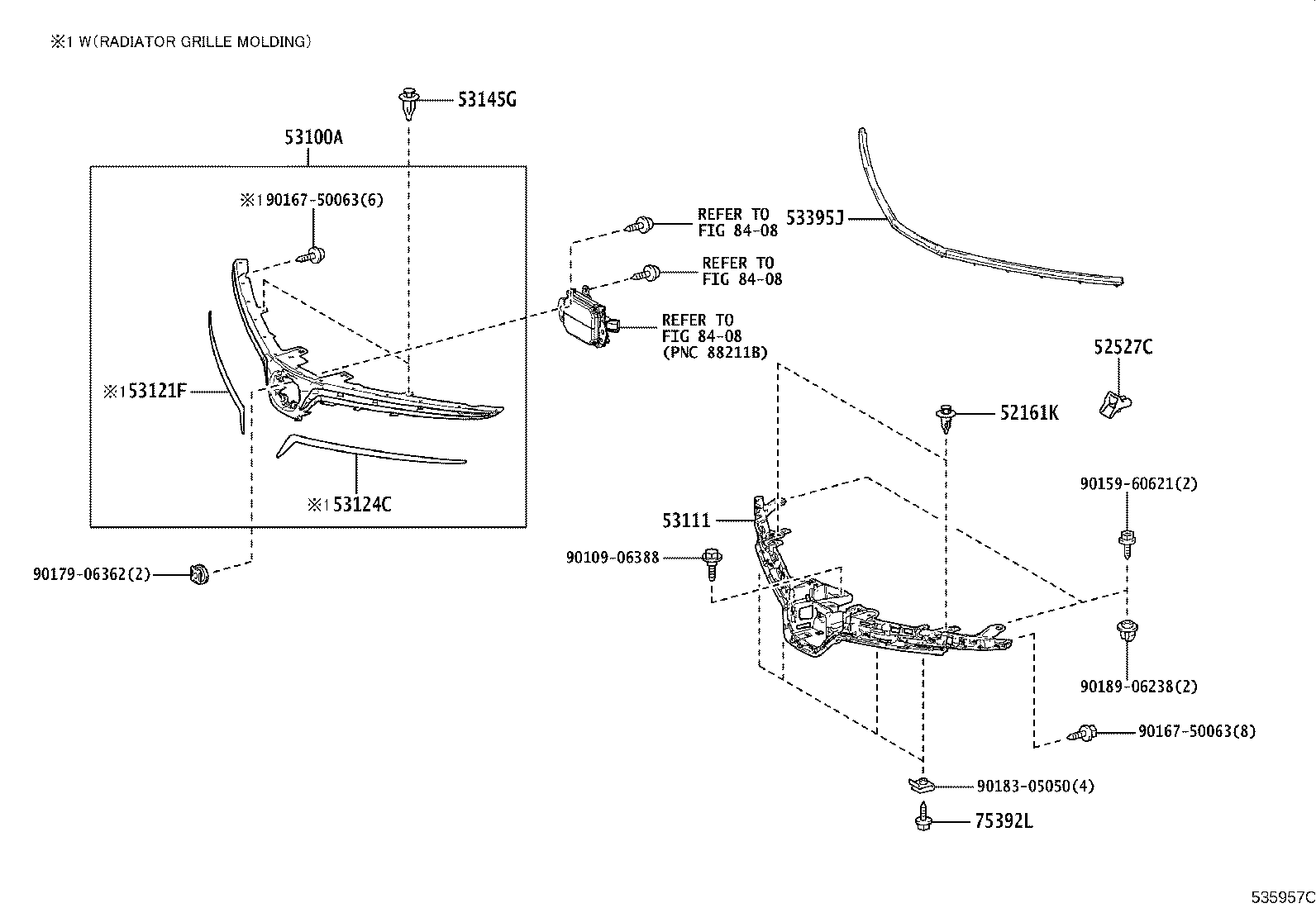

Click highlighted areas on diagram

diagram 52161K 52527C 53100A 53111 53121F 53124C 53145G 53395J 75392L 8408 8408 8408 9010906388 9015960621 9016750063 9016750063 9017906362 9018305050 9018906238
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-0K040

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

(L)

 2
52161-16010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

(J)

 2
52527C - RETAINER, FRONT BUMPER, LOWER NO.2
52527-02070

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
53100A - GRILLE ASSY, RADIATOR
53100-02E20

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
53111 - GRILLE, RADIATOR
53111-02D10

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

NO PAINT REQ.

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-02470

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-02450

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
53145G - CLIP, RADIATOR GRILLE
90467-05063C0

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

BLACK

 2
53395J - SEAL, HOOD TO FRONT END PANEL
53395-02280

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
75392L - RETAINER, OUTSIDE MOULDING
75392-42030

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 4
Common parts
90109-06388
90159-60621
90167-50063
90179-06362
90183-05050
90189-06238
Linked diagrams
8408
