ZRE210R-GEXGPZ (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,SGP

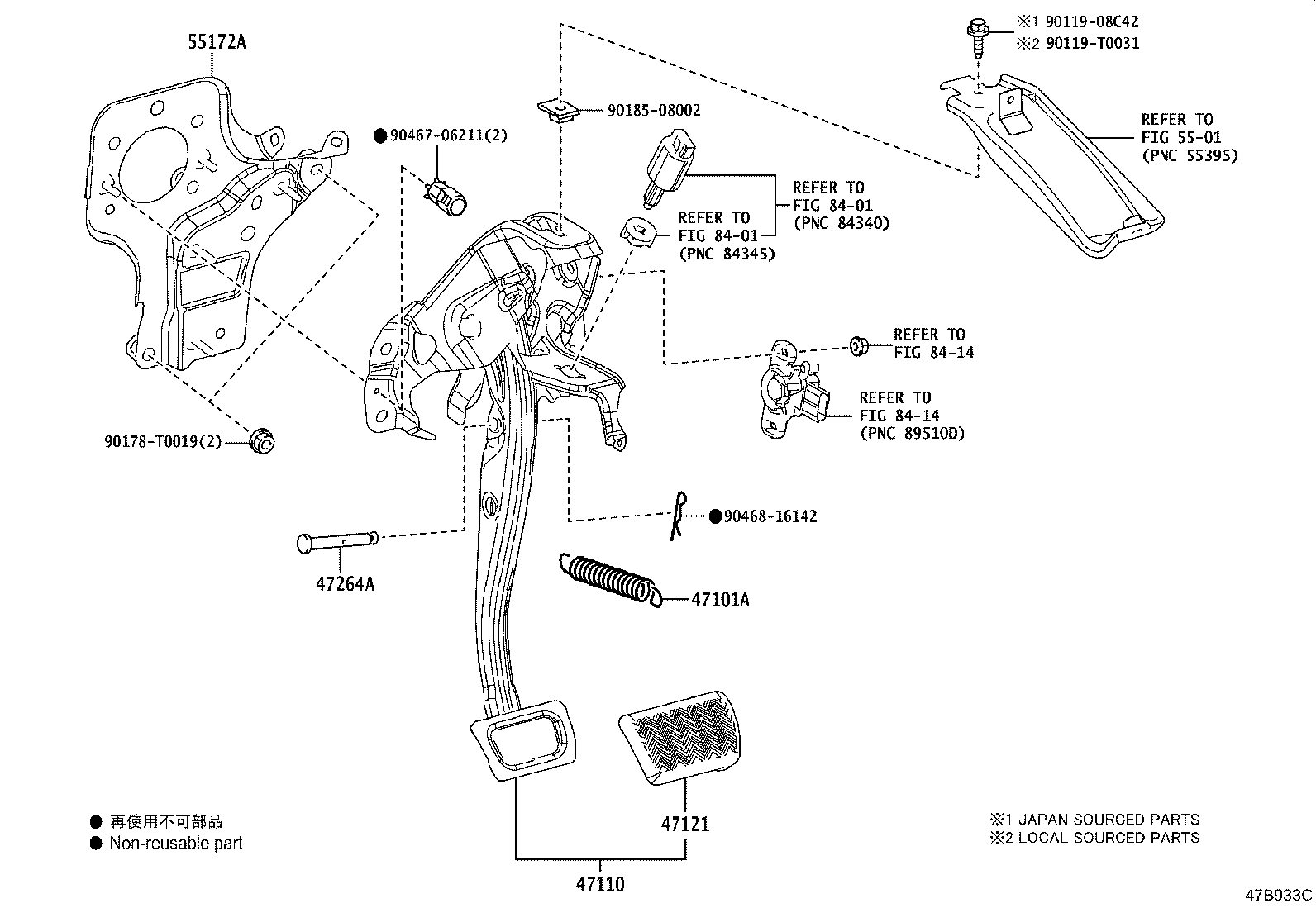

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 5501 55172A 8401 8401 8414 8414 9011908C42 90119T0031 90178T0019 9018508002 9046706211 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15010

ZRE211..D,E,G;MZEA1#,ZRE210..CVT

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-02770

ZRE21#..RHD..(D,E,G)

 1
47121 - PAD, BRAKE PEDAL
47121-47010

ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

ZRE211..D,E,G;MZEA1#,ZRE210..GCC,GEN,SGP,TH

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-02160

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
Common parts
90119-08C42
90119-T0031
90178-T0019
90185-08002
90467-06211
90468-16142
Linked diagrams
5501
8401
8414

(1908- )ZRE21#..RHD..D,E,G

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 5501 55172A 8401 8401 9011908C42 90119T0031 90178T0019 9018508002 9046706211 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15010

ZRE211..D,E,G;MZEA1#,ZRE210..CVT

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-02770

ZRE21#..RHD..(D,E,G)

 1
47121 - PAD, BRAKE PEDAL
47121-47010

ZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

ZRE211..D,E,G;MZEA1#,ZRE210..GCC,GEN,SGP,TH

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-02160

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
Common parts
90119-08C42
90119-T0031
90178-T0019
90185-08002
90467-06211
90468-16142
Linked diagrams
5501
8401
