Toyota Corolla/altis ZRE210 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZRE210R-GEXGPZ (2019)
4501 - STEERING COLUMN & SHAFT

ZRE210R-GEXGPZ (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999

Engine 1ZRFAE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

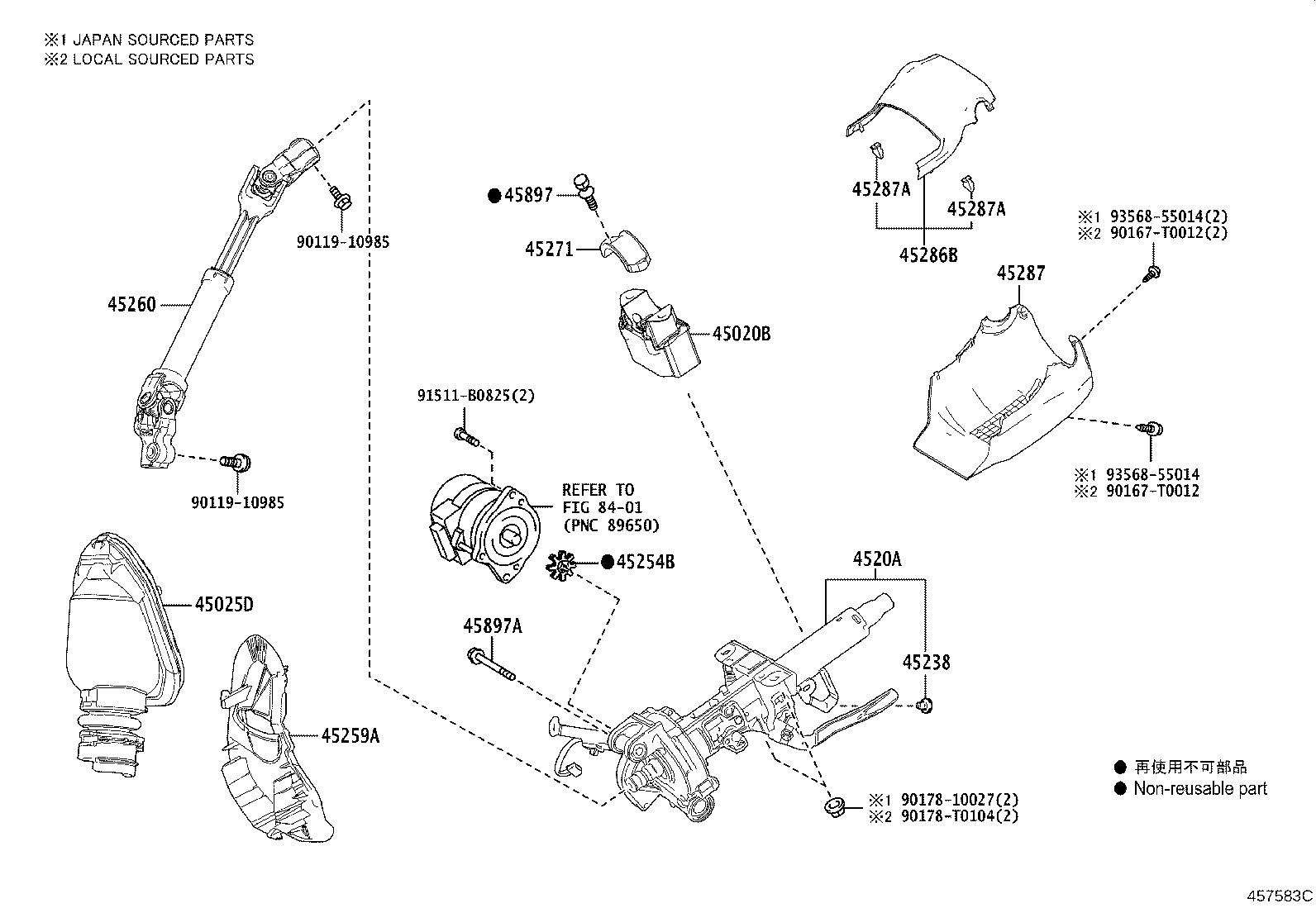

W/O(PUSH START SWITCH)

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02830	ZWE211..(G,V)..TH;ZRE21#..RHD..(E,G);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02440	ZWE211..(G,V)..TH;ZRE21#..RHD..(E,G);ZWE211..GEN,IDN,SGP	08/2019 - 12/2999	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02650C0	ZRE210,ZWE211..(E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2#	08/2019 - 12/2999	1
45287 - COVER, STEERING COLUMN, LWR
45287-02650C0	ZRE210,ZWE211..(E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2#	08/2019 - 12/2999	1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45897 - BOLT, STEERING LOCK SET
45897-12020	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90119-10985
90167-T0012
90178-10027
90178-T0104
91511-B0825
93568-55014
Linked diagrams
8401

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

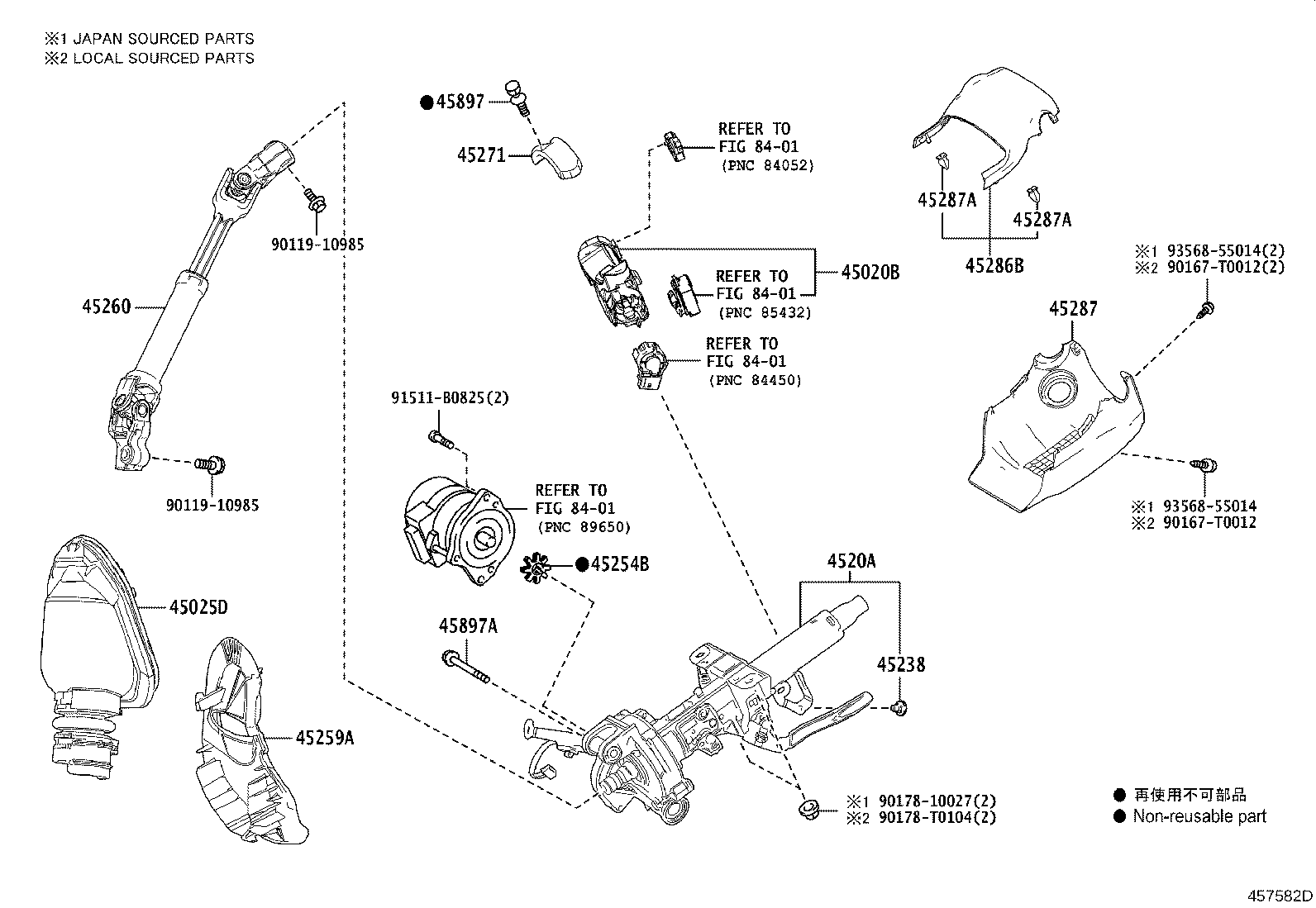

W(PUSH START SWITCH)

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02830	ZWE211..(G,V)..TH;ZRE21#..RHD..(E,G);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02440	ZWE211..(G,V)..TH;ZRE21#..RHD..(E,G);ZWE211..GEN,IDN,SGP	08/2019 - 12/2999	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02290	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)	08/2019 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02650C0	ZRE210,ZWE211..(E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2#	08/2019 - 12/2999	1
45287 - COVER, STEERING COLUMN, LWR
45287-02650C0	ZRE210,ZWE211..(E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2#	08/2019 - 12/2999	1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45897 - BOLT, STEERING LOCK SET
45897-12020	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90119-10985
90167-T0012
90178-10027
90178-T0104
91511-B0825
93568-55014
Linked diagrams
8401
