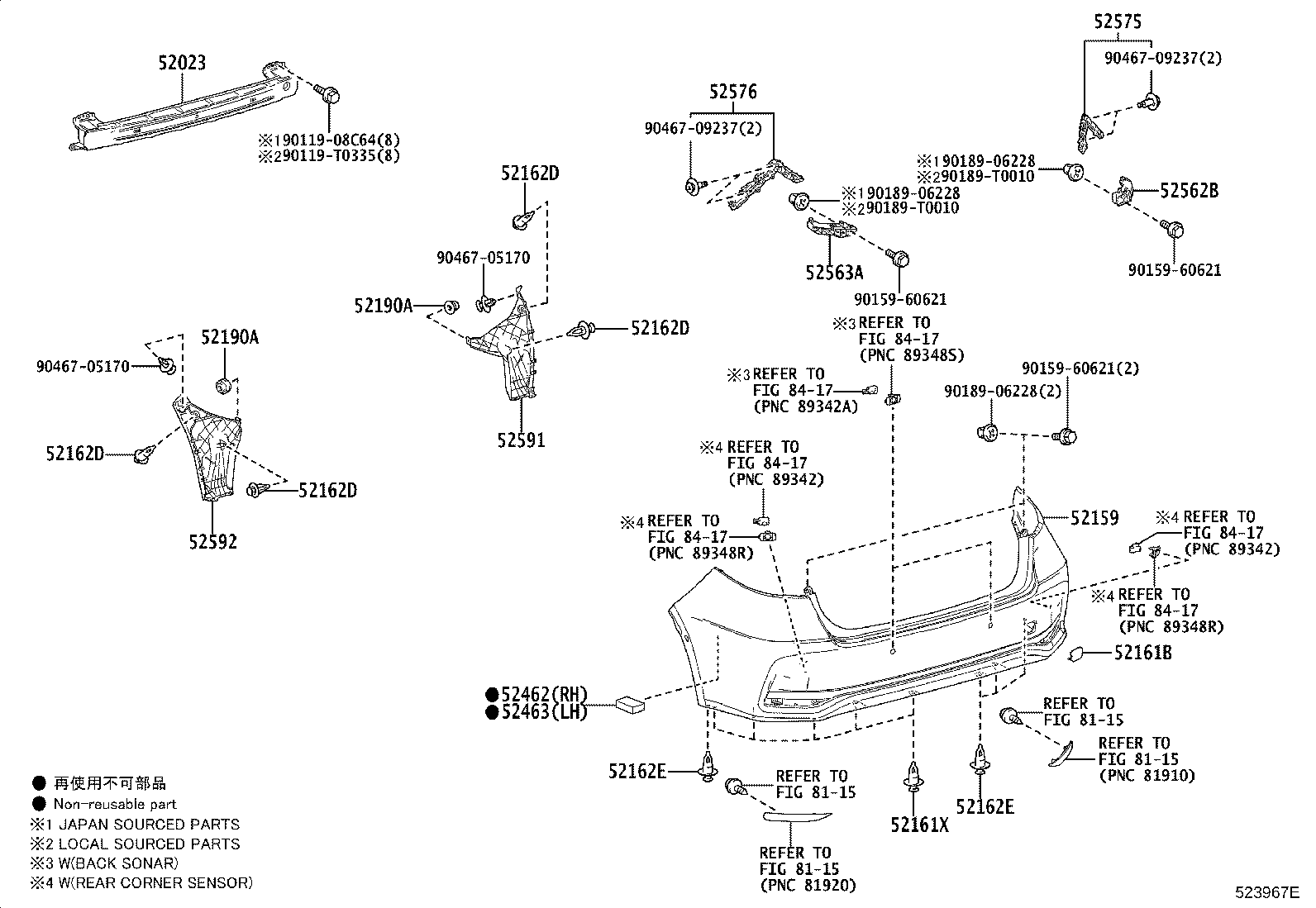

ZRE210R-GEXGGT (2019)
Toyota Corolla/Altis
(1904-2201)V..TH ; (1904-2201)ZRE211..TH ; (1904- )MZEA1#,ZRE210 ; (1904- )ZW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-02240 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52023-02240 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52023-02240 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52023-02240 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0Z961 |
ZRE210..G;ZWE211..SGP PAINT REQ. |
1 | ||
| 52159-0Z961 |
ZRE210..G;ZWE211..SGP PAINT REQ. |
1 | ||
| 52159-0Z961 |
ZRE210,ZWE211..(D,E)..(PHL,TH) PAINT REQ. |
1 | ||
| 52159-0Z961 |
ZRE210,ZWE211..(D,E)..(PHL,TH) PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02905 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52161-02905 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52161-02905 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52161-02905 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZWE211..G;MZEA1#,ZRE210..CVT;ZRE211..(D,E,G)..(IDN,MA,TAIW);ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) (L) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 52161-16010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-16010 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J) |
4 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW BLACK |
2 | ||
| 90467-06206C0 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW BLACK |
2 | ||
| 90467-06206C0 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) BLACK |
2 | ||
| 90467-06206C0 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW BLACK |
2 | ||
| 90467-06206C0 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW BLACK |
2 | ||
| 90467-06206C0 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) BLACK |
2 | ||
| 90467-06206C0 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) BLACK |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-02340 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52462-02340 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52462-02340 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52462-02340 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-02340 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52462-02340 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52462-02340 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52462-02340 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52562-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52562-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52562-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52563-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52563-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52563-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02220 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52575-02220 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52575-02220 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52575-02220 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-02220 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52576-02220 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52576-02220 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52576-02220 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02420 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52591-02420 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52591-02420 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52591-02420 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-02390 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52592-02390 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 52592-02390 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 52592-02390 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90119-T0335 | ||||
| 90159-60621 | ||||
| 90189-06228 | ||||
| 90189-T0010 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8417 | ||||
