ZRE210R-GEXEK (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

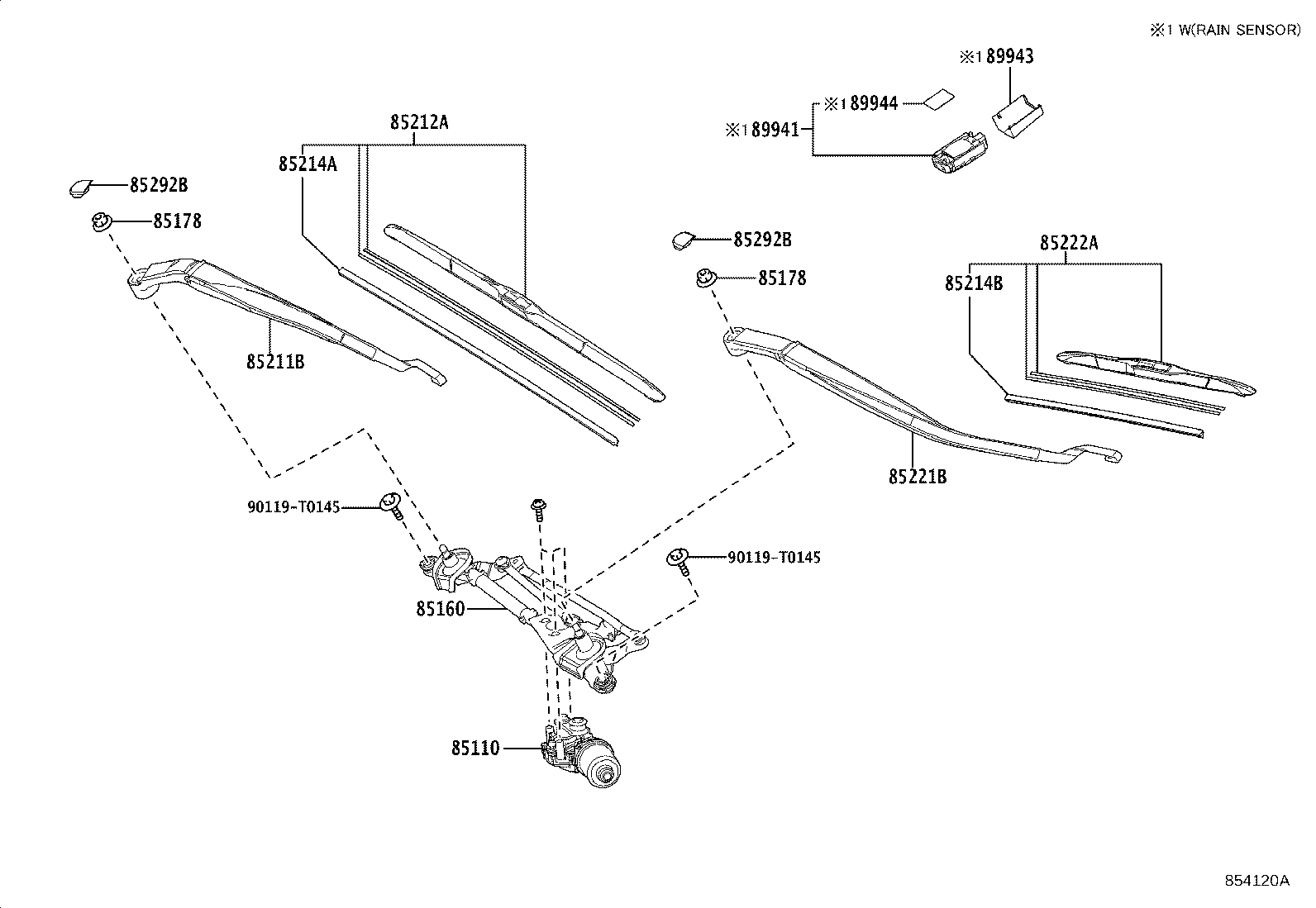

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 90119T0145 90119T0145
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02500

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-02460

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-T0029

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-T0029

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
85211B - ARM, FRONT WIPER, RH
85211-02461

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85211-02460

ZRE21#,ZWE211..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-52240

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85214A - RUBBER, WIPER, RH
85214-28080

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85214B - RUBBER, WIPER, LH
85214-68030

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85221B - ARM, FRONT WIPER, LH
85221-02470

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85222A - BLADE, FR WIPER, LH
85222-52220

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
Common parts
90119-T0145
