ZRE210R-GEXEK (2019)
Toyota Corolla/Altis
ILLUST NO. 1 OF 3(1908- )ZRE21#..D,E,G,V..GEN,IDN,MA,PHL,SGP

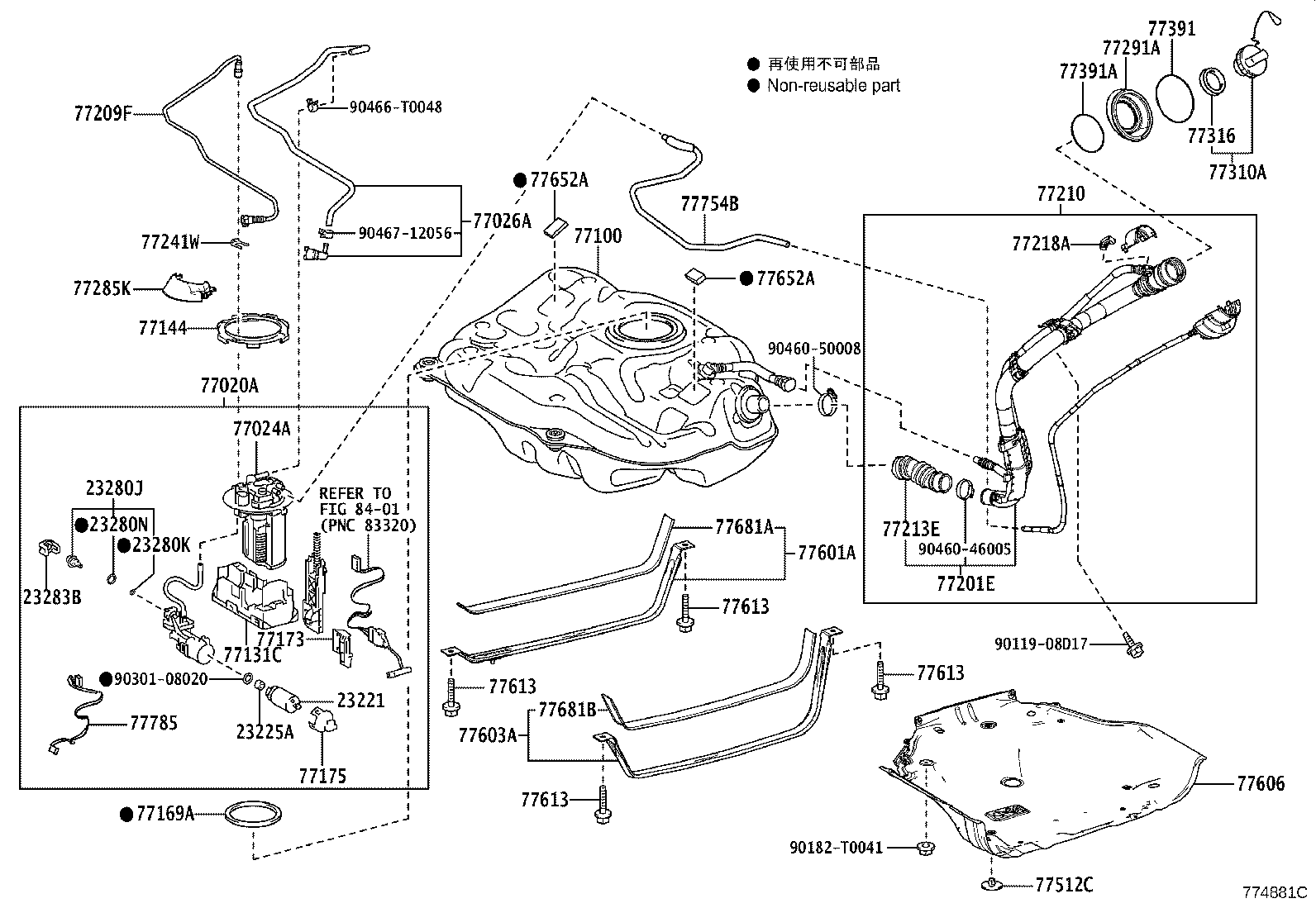

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23221-37040 |
2ZRFE..ZRE211..D,E,G;1ZRFAE,1ZRFE..ZRE210..CVT |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-37010 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..GCC,TAIW;1ZRFAE,1ZRFE..ZRE210..CVT |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02A70 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12390 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4050 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4050 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77103-12160 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K030 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-12010 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02660 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4060 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02160 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02250 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02291 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-F4030 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-F4030 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4040 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-F4010 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-F4010 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-47020 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77682-47020 |
ZRE211..D,E,G;MZEA1#,ZRE210..CVT |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-F4040 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90182-T0041 | ||||
| 90301-08020 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-T0048 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2ZRFE..ZRE211..D,E,G;2ZRFXE..ZWE211..(G,V)..TH;1ZRFAE,1ZRFE,2ZRFXE..ZRE210,ZWE211..CVT..(GCC,GEN,IDN,PHL,SGP,TAIW) |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02A70 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12390 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4050 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4050 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77103-12160 |
ZRE211..(D,E,G)..(IDN,MA,TAIW);MZEA1#,ZRE210..CVT..(GCC,GEN,PHL,SGP) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K030 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-12040 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02660 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4060 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02160 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02250 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02291 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02110 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
4 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-F4040 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12050 |
ZWE211..GCC,TAIW;ZRE210..CVT..(GCC,GEN,PHL,SGP);ZRE211..(D,E,G)..(IDN,MA,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1908- )ZRE21#..D,E,G,V..GEN,IDN,MA,PHL,SGP,TH

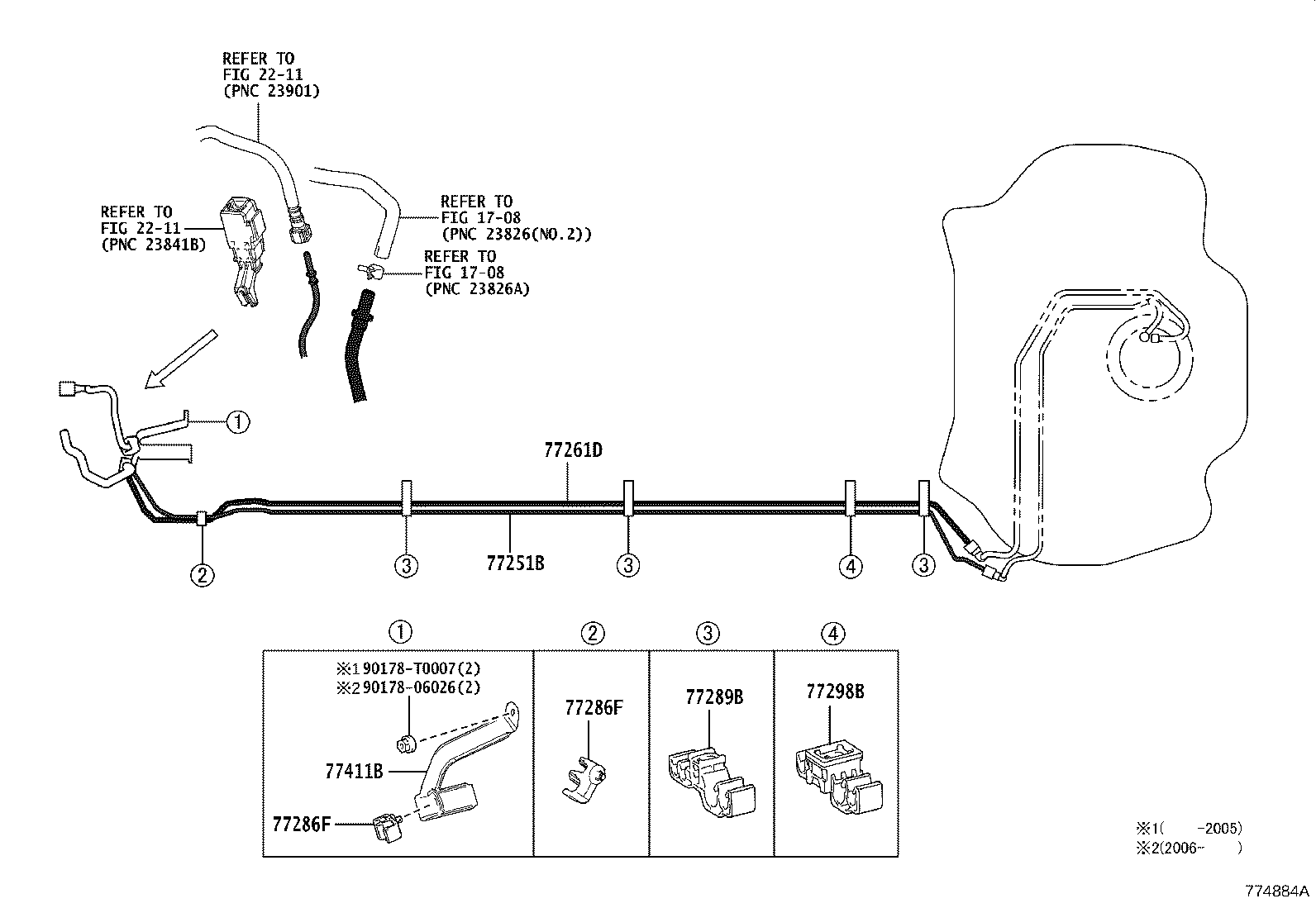

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02B80 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02850 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48100 |
ZRE210..CVT;ZRE211..D,E,G |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48100 |
ZRE210..CVT;ZRE211..D,E,G |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-10090 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10100 |
ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-F4060 |
ZRE21#..RHD..(D,E,G) |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| 90178-T0007 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02580 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-02250 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02250 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02140 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90269-06017 | ||||
| 90469-T0003 | ||||
| 90541-06069 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
