Toyota Corolla/altis ZRE210 AIR CLEANER

ZRE210R-GEXEK (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999

Engine 1ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1908- )2ZRFXE..E,G,V..TH;2ZRFXE..GEN,IDN,MA,PHL,SGP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-0T270	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T230	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17710B - GROMMET
90480-18006	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
17735 - CAP, AIR CLEANER
17735-0T190	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-0T260	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17752 - INLET, AIR CLEANER, NO.2
17752-0T110	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-F0030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0T560	1ZRFBE,1ZRFE..ZRE210..CVT	04/2019 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
90460-T0010	1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFE..ZRE211..RHD..(E,G);2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP (L)	04/2019 - 12/2999	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-0Y030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
Common parts
90099-00289
90119-06900
90119-06A17
90119-T0257
90119-T0342
90119-T0448
90119-T0571
90467-07220
91671-80820
91673-A0616
Linked diagrams
1201
2211

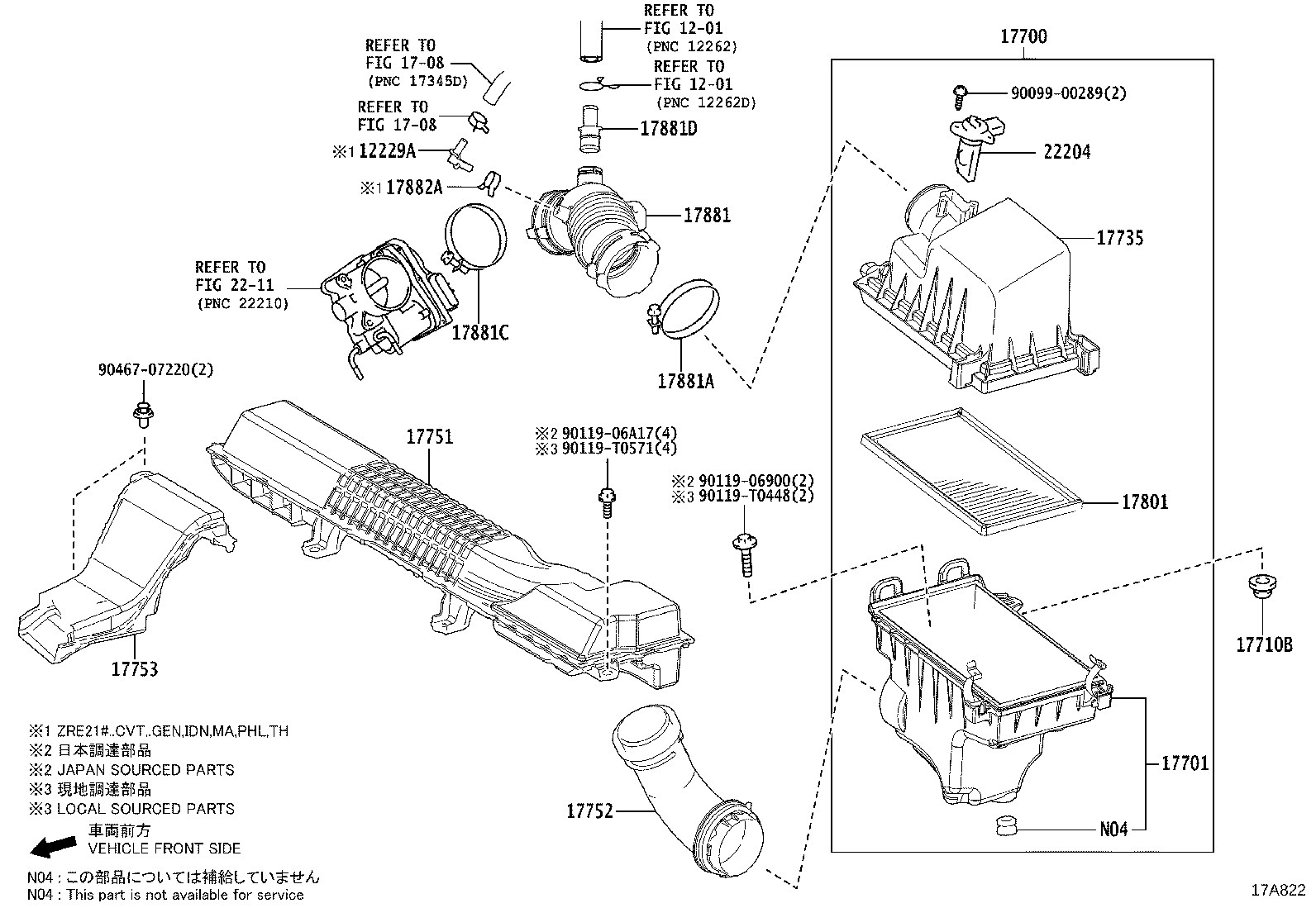

(1908- )1ZR#,2ZRFBE,2ZRFE..D,E,G,V..GEN,IDN,MA,PHL,SGP,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
12229A - PIPE, VENTILATION
12229-0Y050	2ZRFE..ZRE211..RHD..(E,G);1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
17700 - CLEANER ASSY, AIR
17700-0T270	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T230	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17710B - GROMMET
90480-18006	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
17735 - CAP, AIR CLEANER
17735-0T190	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-0T260	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17752 - INLET, AIR CLEANER, NO.2
17752-0T110	1ZR#,2ZRFBE,2ZRFE..ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
17753 - INLET, AIR CLEANER, NO.3
17753-0T090	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-F0030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT (L)	04/2019 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-0T560	1ZRFBE,1ZRFE..ZRE210..CVT	04/2019 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW (J)	04/2019 - 12/2999	1
90460-T0010	1ZR#,2ZRFBE..ZRE21#..CVT;2ZRFE..ZRE211..RHD..(E,G);2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP (L)	04/2019 - 12/2999	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-0Y030	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-T0015	2ZRFE..ZRE211..RHD..(E,G);1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040	2ZRFE..ZRE211..D,E,G;1ZR#,2ZRFBE..ZRE21#..CVT	04/2019 - 12/2999	1
Common parts
90099-00289
90119-06900
90119-06A17
90119-T0448
90119-T0571
90467-07220
Linked diagrams
1201
1708
2211

ZRE210R-GEXEK (2019)

(1908- )2ZRFXE..E,G,V..TH;2ZRFXE..GEN,IDN,MA,PHL,SGP

(1908- )1ZR#,2ZRFBE,2ZRFE..D,E,G,V..GEN,IDN,MA,PHL,SGP,TH
