ZRE210L-GEXGKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )PHL

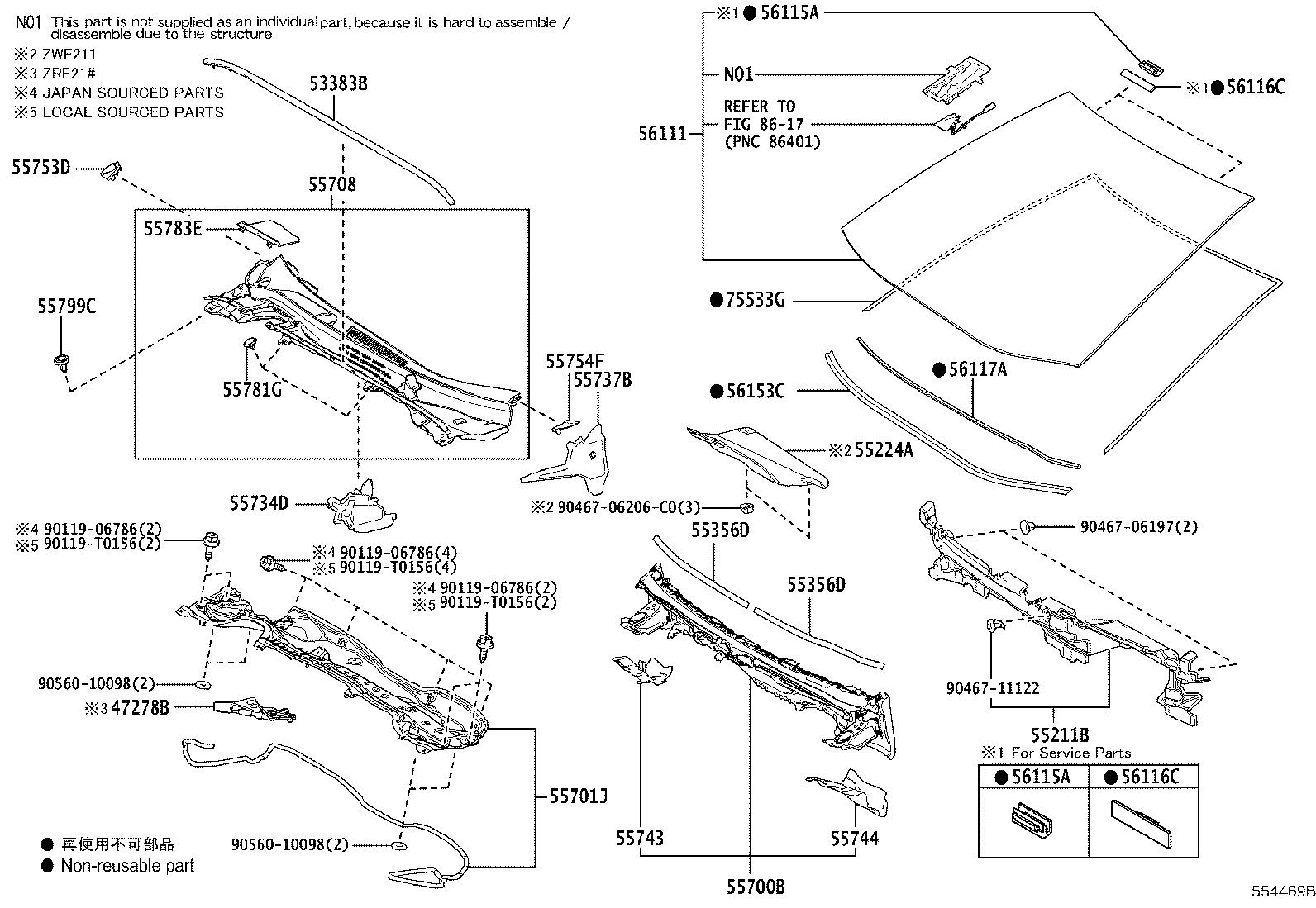

Click highlighted areas on diagram

diagram 53383B 55211B 55224A 55356D 55356D 55700B 55701J 55708 55734D 55737B 55743 55744 55753D 55754F 55781G 55783E 55799C 56111 56115A 56115A 56116C 56116C 56117A 56153C 75533G 8617 9011906786 9011906786 9011906786 90119T0156 90119T0156 90119T0156 9046706197 9046706206C0 9046711122 9056010098 9056010098
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-02280

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
53383-02280

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55211B - SILENCER, FRONT PANEL
55211-02300

ZRE210,ZWE211..CVT..PHL

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-02530

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
55356-02530

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-02530

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
55356-02530

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
55700B - COWL ASSY
55700-02680

ZRE210,ZWE211..CVT..PHL

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-02610

ZRE210,ZWE211..CVT..PHL

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-02870

ZRE210,ZWE211..CVT..PHL

 1
55734D - PLATE, WATER GUARD
55734-02430

ZRE210,ZWE211..CVT..PHL

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-02270

ZRE210,ZWE211..CVT..PHL

 1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-02200

ZRE210,ZWE211..CVT..PHL

 1
55744 - PANEL, COWL TOP OUTSIDE CORNER, LH
55744-02170

ZRE210,ZWE211..CVT..PHL

 1
55753D - SHIELD, COWL WATER EXTRACT, RH
55753-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
55753-02190

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55754F - SHIELD, COWL WATER EXTRACT, LH
55754-02200

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55754-02200

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07224

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
90467-07224

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
55783E - LOUVER, COWL TOP VENTILATOR, CENTER
55783-02330

ZRE210,ZWE211..CVT..PHL

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
90467-09242

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56111 - GLASS, WINDSHIELD
56101-0Z905

ZRE210,ZWE211..V..PHL

TOYOTA SAFETY SENSE-WITH

 1
56101-0Z901

ZRE210..G..PHL

 1
56101-0Z902

ZRE210,ZWE211..V..PHL

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56115-30100

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56115-30100

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-02310

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

L=1298

 1
56117-02310

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

L=1298

 1
56117-02310

ZRE210,ZWE211..V..PHL

L=1298,TOYOTA SAFETY SENSE-WITH

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-12010

ZRE210,ZWE211..PHL

 1
56153-12030

ZRE210,ZWE211..CVT..PHL

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-02220

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
75533-02220

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
Common parts
90119-06786
90119-T0156
90467-06197
90467-06206C0
90467-11122
90560-10098
Linked diagrams
8617

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

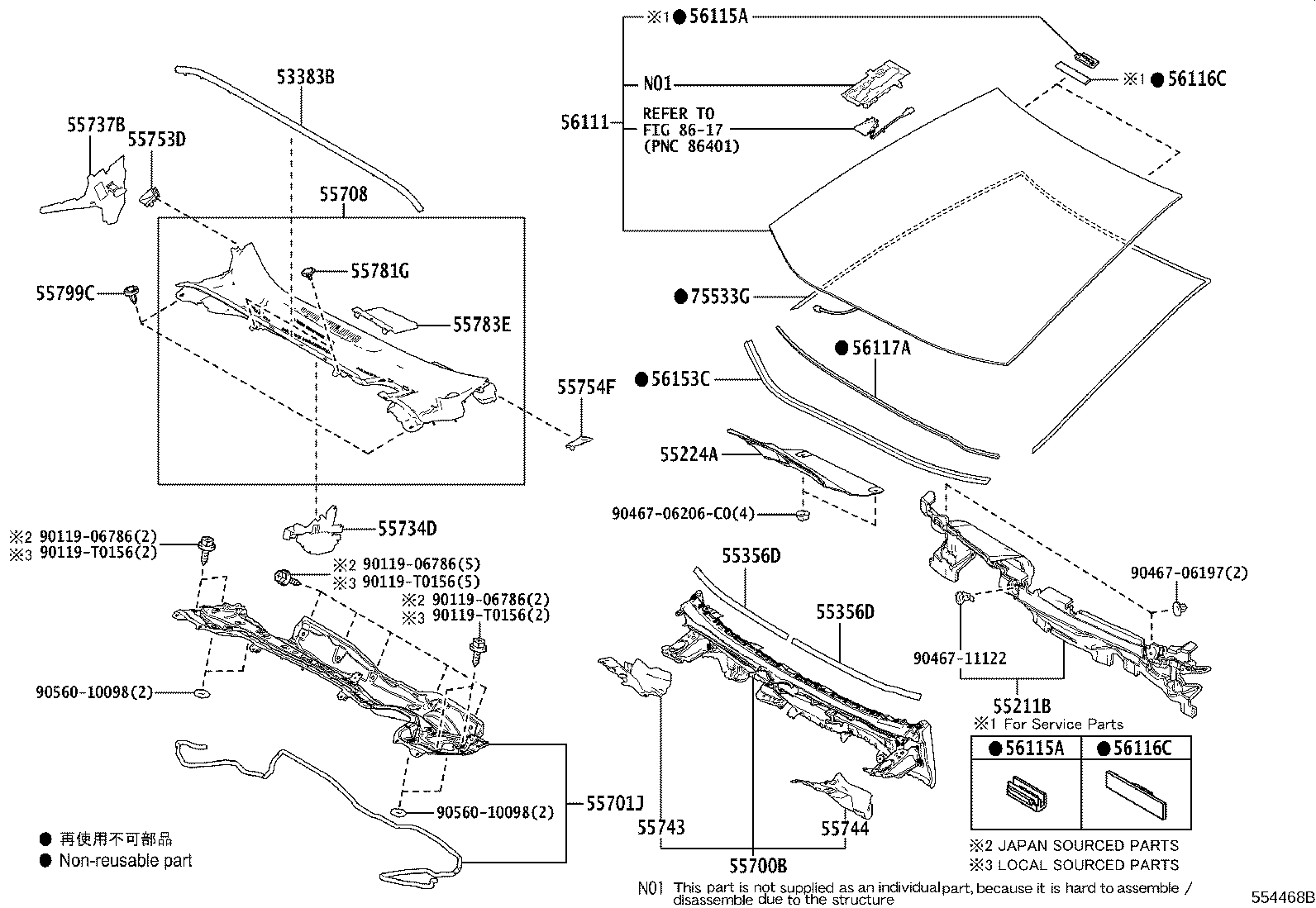

Click highlighted areas on diagram

diagram 47278B 53383B 55211B 55224A 55356D 55356D 55700B 55701J 55708 55734D 55737B 55743 55744 55753D 55754F 55781G 55783E 55799C 56111 56115A 56115A 56116C 56116C 56117A 56153C 75533G 8617 9011906786 9011906786 9011906786 90119T0156 90119T0156 90119T0156 9046706197 9046706206C0 9046711122 9056010098 9056010098
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-02280

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
53383-02280

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55211B - SILENCER, FRONT PANEL
55211-02300

ZRE210,ZWE211..CVT..PHL

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-02530

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
55356-02530

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-02530

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
55356-02530

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
55700B - COWL ASSY
55700-02680

ZRE210,ZWE211..CVT..PHL

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-02610

ZRE210,ZWE211..CVT..PHL

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-02870

ZRE210,ZWE211..CVT..PHL

 1
55734D - PLATE, WATER GUARD
55734-02430

ZRE210,ZWE211..CVT..PHL

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-02270

ZRE210,ZWE211..CVT..PHL

 1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-02200

ZRE210,ZWE211..CVT..PHL

 1
55744 - PANEL, COWL TOP OUTSIDE CORNER, LH
55744-02170

ZRE210,ZWE211..CVT..PHL

 1
55753D - SHIELD, COWL WATER EXTRACT, RH
55753-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
55753-02190

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55754F - SHIELD, COWL WATER EXTRACT, LH
55754-02200

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
55754-02200

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07224

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
90467-07224

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
55783E - LOUVER, COWL TOP VENTILATOR, CENTER
55783-02330

ZRE210,ZWE211..CVT..PHL

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
90467-09242

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56111 - GLASS, WINDSHIELD
56101-0Z905

ZRE210,ZWE211..V..PHL

TOYOTA SAFETY SENSE-WITH

 1
56101-0Z901

ZRE210..G..PHL

 1
56101-0Z902

ZRE210,ZWE211..V..PHL

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56115-30100

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56115-30100

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-02310

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

L=1298

 1
56117-02310

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

L=1298

 1
56117-02310

ZRE210,ZWE211..V..PHL

L=1298,TOYOTA SAFETY SENSE-WITH

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-12010

ZRE210,ZWE211..PHL

 1
56153-12030

ZRE210,ZWE211..CVT..PHL

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-02220

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
75533-02220

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
Common parts
90119-06786
90119-T0156
90467-06197
90467-06206C0
90467-11122
90560-10098
Linked diagrams
8617
