ZRE210L-GEXGKM (2019)
Toyota Corolla/Altis

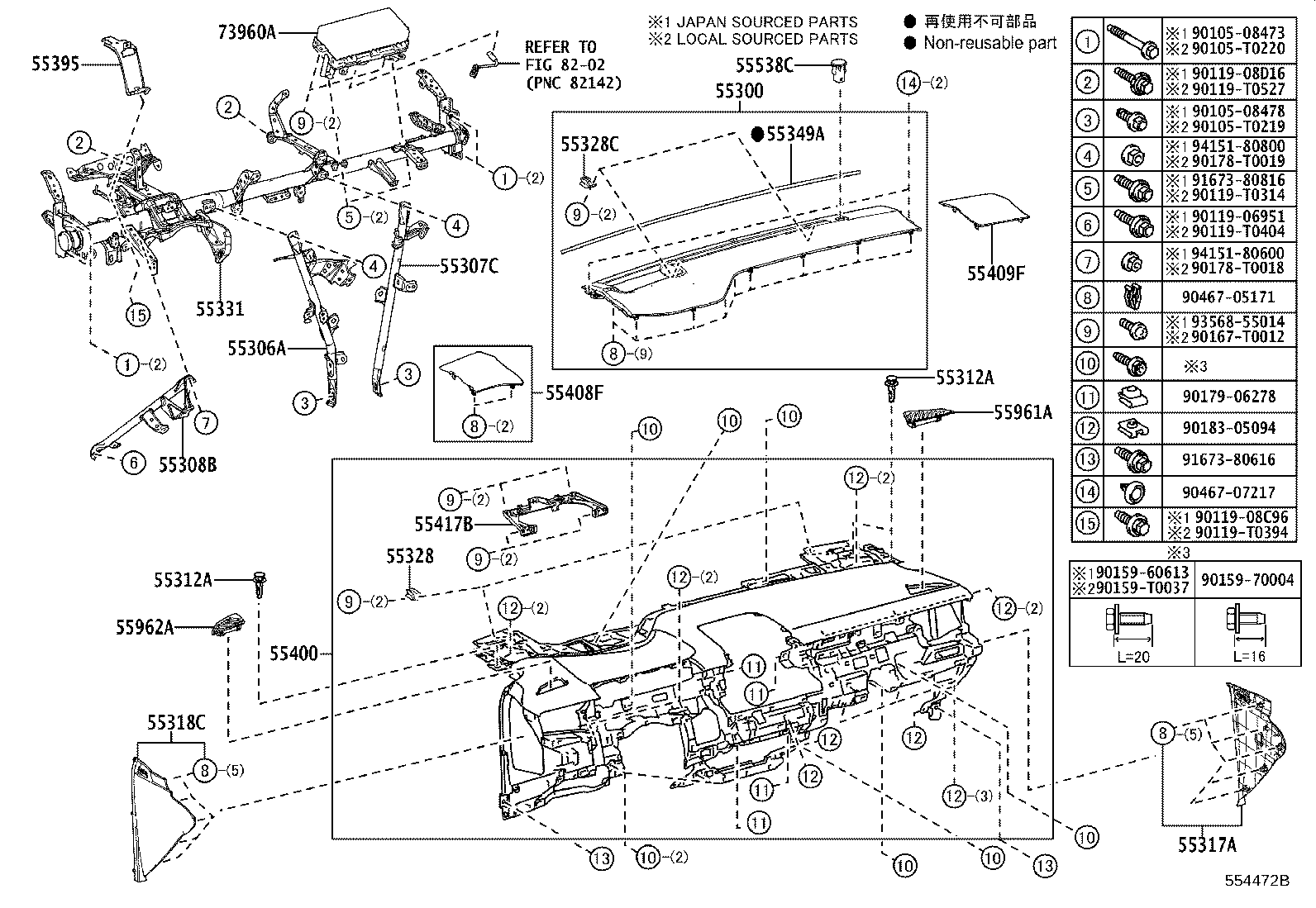

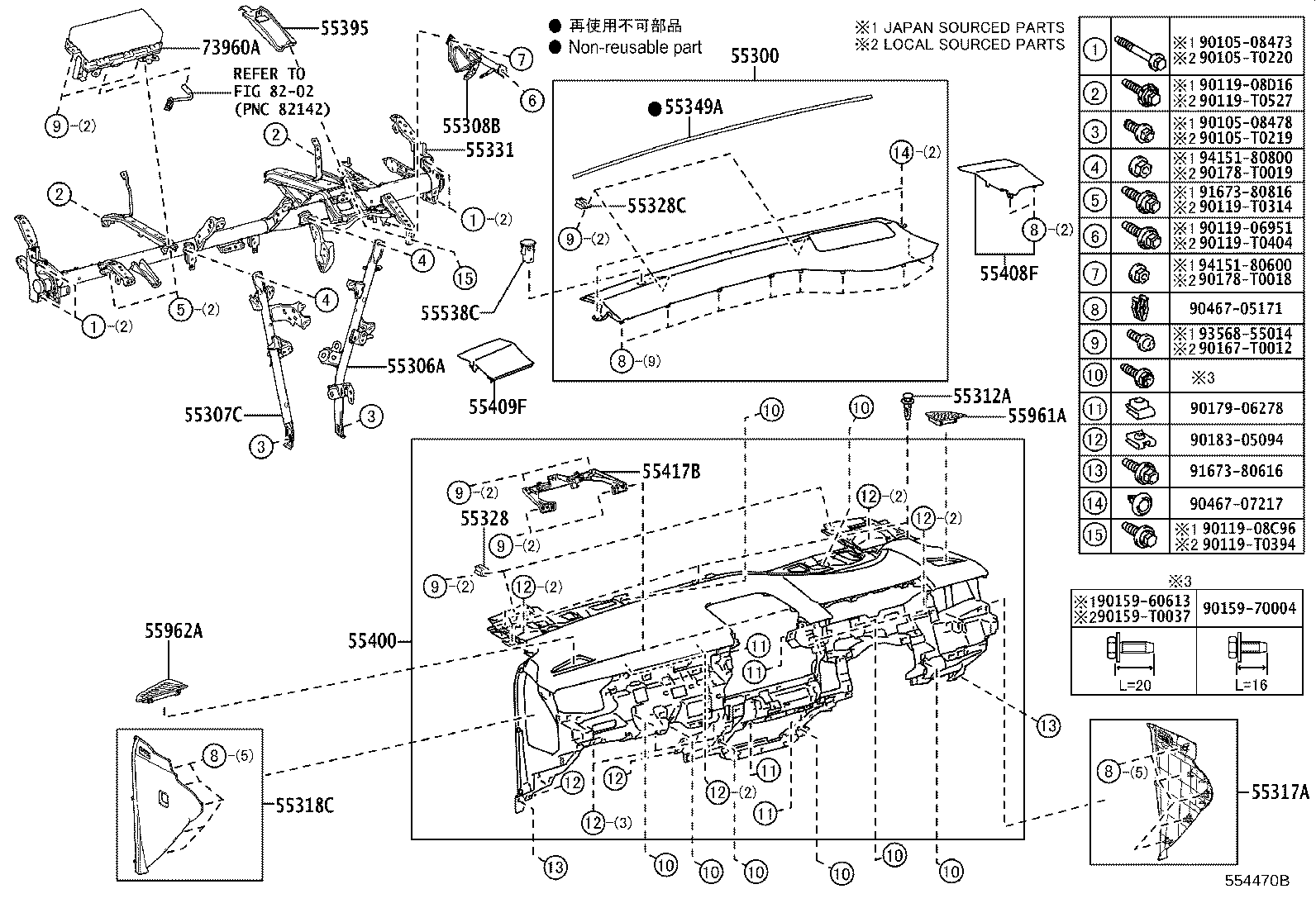

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02140C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55300-02140C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55300-02140C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02700 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02550 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02200 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) (J) |
3 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
3 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
3 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-02360C0 |
ZWE211..MA;ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55318-02360C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55318-02360C0 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-02730C0 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55317-02730C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55317-02730C0 |
ZWE211..MA;ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 55328-60090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-12420 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 55328-12420 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02C40 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02260 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 55349-02260 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02090 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02350C1 |
ZRE210..V LAOS SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..V CAMBODIA SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..V MYANMAR SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..E..PHL LAOS SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..E..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210,ZWE211..V..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..G..PHL CAMBODIA SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..D..PHL SOFT BLACK,TRIM1# |
1 | ||
| 55400-02350C1 |
ZRE210,ZWE211..V..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..G..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..G..PHL MYANMAR SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02120C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55472-02120C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55472-02120C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02100C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55473-02100C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55473-02100C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55417B - RETAINER, RADIO TUNER FINISH | ||||
| 55417-02070 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55417-02070 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-12110C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-02280C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55962-02280C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55962-02280C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-02320C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55961-02320C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55961-02320C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02410 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 73960-02410 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90105-T0220 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90119-T0314 | ||||
| 90119-T0394 | ||||
| 90119-T0404 | ||||
| 90119-T0527 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-07217 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

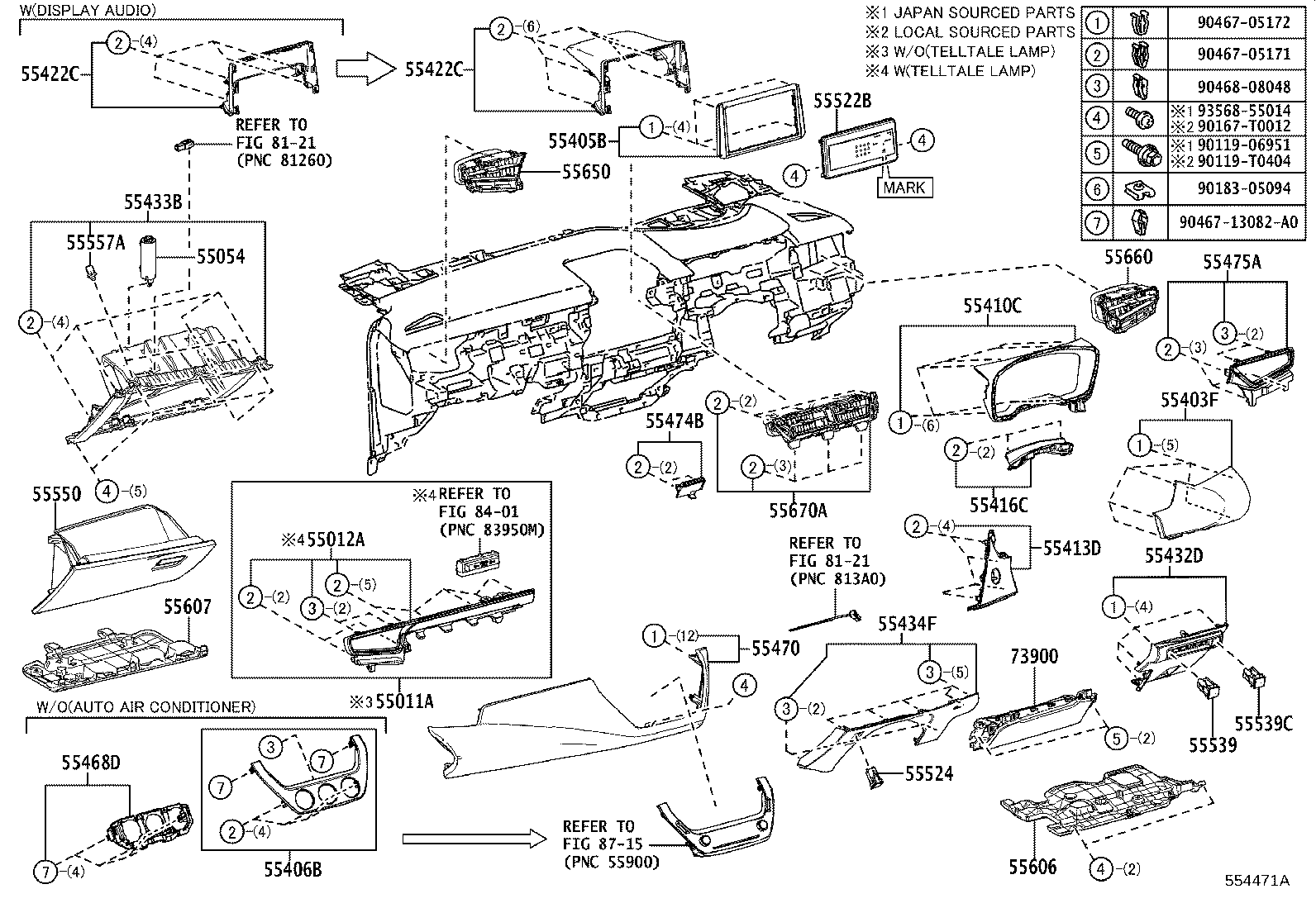

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02370C1 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55011-02380C1 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55011-02370C1 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZRE211..E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 55054-47010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02690A0 |
ZRE210..E..PHL FROMAGE,TRIM0# |
1 | ||
| 55403-02690C0 |
ZRE210..E..PHL BLACK,TRIM2# |
1 | ||
| 55403-02690B0 |
ZRE210..D..PHL LT.GRAY,TRIM1# |
1 | ||
| 55403-02690A0 |
ZRE210,ZWE211..CVT..PHL FROMAGE,TRIM0# |
1 | ||
| 55403-02690C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02F70B0 |
ZRE210..V LAOS SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210..V MYANMAR SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210..E..PHL LAOS SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55405-02J00B0 |
ZWE211..MA;ZRE210..E..PHL SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210..V CAMBODIA SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55405-02G90 |
ZRE210..D..PHL |
1 | ||
| 55405-02J00B0 |
ZRE210,ZWE211..V..PHL SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210..G..PHL CAMBODIA SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210,ZWE211..V..PHL SILVER,TRIM0#,2# |
1 | ||
| 55405-02J00B0 |
ZRE21#..CVT..(E,G)..(MA,PHL) SILVER,TRIM0#,2# |
1 | ||
| 55405-02F70B0 |
ZRE210..G..PHL MYANMAR SPEC,SILVER,TRIM0#,2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02690 |
MZEA1#,ZRE21#..LHD..CVT..(D,N) |
1 | ||
| 55406-02680 |
ZRE210..D..PHL |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02680 |
ZRE210..D..PHL |
1 | ||
| 55410-02690B0 |
ZRE210..E..PHL SILVER,TRIM0#,2# |
1 | ||
| 55410-02690B0 |
ZRE210,ZWE211..CVT..PHL SILVER,TRIM0#,2# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02700B0 |
ZRE210..D..PHL LT.GRAY,TRIM1# |
1 | ||
| 55413-02700C0 |
ZRE210..E..PHL BLACK,TRIM2# |
1 | ||
| 55413-02700A0 |
ZRE210..E..PHL FROMAGE,TRIM0# |
1 | ||
| 55413-02710A0 |
ZRE210,ZWE211..V..PHL FROMAGE,TRIM0# |
1 | ||
| 55413-02750B0 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E) LT.GRAY,TRIM1# |
1 | ||
| 55413-02700C0 |
ZRE210..G..PHL BLACK,TRIM2# |
1 | ||
| 55413-02700A0 |
ZRE210..G..PHL FROMAGE,TRIM0# |
1 | ||
| 55413-02710C0 |
ZRE210,ZWE211..V..PHL BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02410 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 55416-02410 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-02780 |
ZRE210..V MYANMAR SPEC |
1 | ||
| 55422-02780 |
ZRE210..V LAOS SPEC |
1 | ||
| 55422-02780 |
ZRE210..G..PHL CAMBODIA SPEC |
1 | ||
| 55422-02780 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55422-02780 |
ZRE210..V CAMBODIA SPEC |
1 | ||
| 55422-02790 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55422-02790 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) |
1 | ||
| 55422-02780 |
ZRE210..E..PHL LAOS SPEC |
1 | ||
| 55422-02780 |
ZRE210..G..PHL MYANMAR SPEC |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-02780 |
ZRE210..V MYANMAR SPEC |
1 | ||
| 55422-02780 |
ZRE210..V LAOS SPEC |
1 | ||
| 55422-02780 |
ZRE210..G..PHL CAMBODIA SPEC |
1 | ||
| 55422-02780 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55422-02780 |
ZRE210..V CAMBODIA SPEC |
1 | ||
| 55422-02790 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55422-02790 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) |
1 | ||
| 55422-02780 |
ZRE210..E..PHL LAOS SPEC |
1 | ||
| 55422-02780 |
ZRE210..G..PHL MYANMAR SPEC |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-02880C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55432-02880C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55432-02880C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02600C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55433-02600C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55433-02600C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02600C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55434-02600C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55434-02600C0 |
ZRE210..G..PHL BLACK,TRIM0#,2# |
1 | ||
| 55434-02460C0 |
ZRE210,ZWE211..V..PHL BLACK,TRIM0#,2# |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02450 |
ZRE210..D..PHL |
1 | ||
| 55468-02440 |
MZEA1#,ZRE21#..LHD..CVT..(D,N) |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02740A0 |
ZRE210..E..PHL FROMAGE,TRIM0# |
1 | ||
| 55470-02740C0 |
ZRE210..E..PHL BLACK,TRIM2# |
1 | ||
| 55470-02730B0 |
ZRE210..D..PHL LT.GRAY,TRIM1# |
1 | ||
| 55470-02770B0 |
MZEA1#,ZRE21#,ZWE211..LHD..CVT..D LT.GRAY,TRIM1# |
1 | ||
| 55470-02740A0 |
ZRE210,ZWE211..CVT..PHL FROMAGE,TRIM0# |
1 | ||
| 55470-02740C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02170B0 |
ZRE210..E..PHL SILVER,TRIM0#,2# |
1 | ||
| 55474-02180B0 |
ZRE210..D..PHL SILVER,TRIM1# |
1 | ||
| 55474-02170B0 |
ZRE210,ZWE211..CVT..PHL SILVER,TRIM0#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02160C1 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55475-02160C1 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55475-02160C1 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-0K010 |
ZRE210..V CAMBODIA SPEC,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..G..PHL AUDIO-*DA(8INCH) & 6SPEAKER,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..V MYANMAR SPEC,MARK=55522-0K010 |
1 | ||
| 55522-52020 |
ZRE210,ZWE211..V..PHL MARK=55522-52020 |
1 | ||
| 55522-0K010 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..V LAOS SPEC,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..E..PHL LAOS SPEC,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210,ZWE211..V..PHL MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..G..PHL MYANMAR SPEC,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE210..G..PHL CAMBODIA SPEC,MARK=55522-0K010 |
1 | ||
| 55522-52020 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) MARK=55522-52020 |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-02020C0 |
ZRE210..V LAOS SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210..V CAMBODIA SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210..V MYANMAR SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55524-02020C0 |
ZRE210..E..PHL LAOS SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE21#..CVT..(E,G)..(MA,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210..G..PHL CAMBODIA SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZWE211..MA;ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210..G..PHL MYANMAR SPEC,BLACK,TRIM0#,2# |
1 | ||
| 55524-02020C0 |
ZRE210,ZWE211..V..PHL BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06130 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 55539-06130 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 55539-06130 |
ZRE21#..(E,G)..(MA,SGP);ZRE210,ZWE211..(N,V)..(GEN,PHL) TOYOTA SAFETY SENSE-WITH |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02560C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55550-02560C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55550-02560C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 55557-52030 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02330 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02340 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02880 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55650-02890 |
ZWE211..MA;ZRE210..E..PHL |
1 | ||
| 55650-02890 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(E,G,N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02560 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(E,G,N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 55660-02550 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55660-02560 |
ZWE211..MA;ZRE210..E..PHL |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02870 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 55670-02880 |
ZWE211..MA;ZRE210..E..PHL |
1 | ||
| 55670-02880 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(E,G,N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02250C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 73900-02250C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 73900-02250C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-T0012 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1908- )PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02140C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55300-02140C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55300-02140C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02700 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02550 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02200 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) (J) |
3 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
3 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
3 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-0K040 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
3 | ||
| 52161-16010 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) (J) |
3 | ||
| 52161-16010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
3 | ||
| 52161-0K040 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
3 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-02360C0 |
ZWE211..MA;ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55318-02360C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55318-02360C0 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-02730C0 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55317-02730C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55317-02730C0 |
ZWE211..MA;ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 55328-60090 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-12420 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 55328-12420 |
MZEA1#,ZRE210..N;ZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW);ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TAIW,TH) |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02C40 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02260 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 55349-02260 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02090 |
ZRE210,ZWE211..CVT..PHL |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02350C1 |
ZRE210..V LAOS SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..V CAMBODIA SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..V MYANMAR SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..E..PHL LAOS SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..E..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210,ZWE211..V..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..G..PHL CAMBODIA SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..D..PHL SOFT BLACK,TRIM1# |
1 | ||
| 55400-02350C1 |
ZRE210,ZWE211..V..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02340C1 |
ZRE210..G..PHL SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02350C1 |
ZRE210..G..PHL MYANMAR SPEC,SOFT BLACK,TRIM0#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02120C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55472-02120C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55472-02120C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02100C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55473-02100C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55473-02100C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55417B - RETAINER, RADIO TUNER FINISH | ||||
| 55417-02070 |
ZRE210,ZWE211..V..PHL |
1 | ||
| 55417-02070 |
ZWE211..SGP;ZRE21#..CVT..(E,G)..(IDN,MA,PHL,SGP) |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-12110C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55962-02280C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55962-02280C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55962-02280C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55961-02320C0 |
ZRE210..D..PHL BLACK,TRIM1# |
1 | ||
| 55961-02320C0 |
ZRE210..E..PHL BLACK,TRIM0#,2# |
1 | ||
| 55961-02320C0 |
ZRE210,ZWE211..CVT..PHL BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02410 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 73960-02410 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90105-T0220 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90119-T0314 | ||||
| 90119-T0394 | ||||
| 90119-T0404 | ||||
| 90119-T0527 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-07217 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
