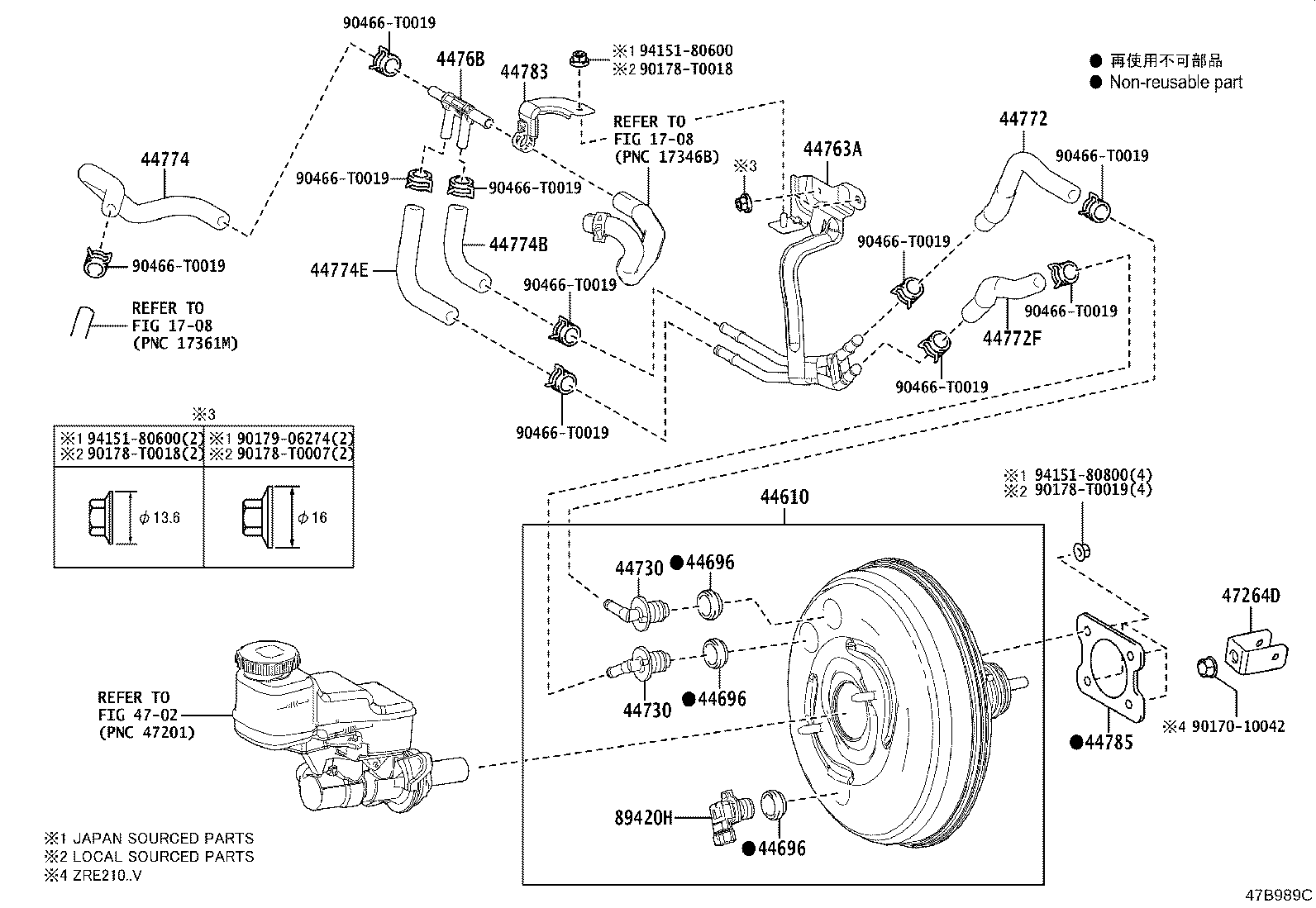

Toyota Corolla/altis ZRE210 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-02G50	ZRE210..V	08/2019 - 12/2999	1
44610-02G60	ZRE210..G..PHL	08/2019 - 12/2999	1
44696 - GROMMET, CHECK VALVE
90480-24015	ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH)	08/2019 - 12/2999	3
44696 - GROMMET, CHECK VALVE
90480-24015	ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH)	08/2019 - 12/2999	3
44696 - GROMMET, CHECK VALVE
90480-24015	ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH)	08/2019 - 12/2999	3
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010	ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH)	08/2019 - 12/2999	2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010	ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH)	08/2019 - 12/2999	2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02320	ZRE210..LHD..CVT	04/2019 - 12/2999	1
4476B - EJECTOR, BRAKE BOOSTER VACUUM
4476B-48010	ZRE211..RHD..(E,G);ZRE210..CVT..(GCC,GEN,PHL,TH)	04/2019 - 12/2999	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02240	ZRE210..CVT..PHL	08/2019 - 12/2999	1
44772F - HOSE, CHECK VALVE TO CHECK VALVE
44772-02250	ZRE210..CVT..PHL	08/2019 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A60	ZRE210..LHD..CVT	04/2019 - 12/2999	1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-12A70	ZRE210..LHD..CVT	04/2019 - 12/2999	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-12A80	ZRE210..LHD..CVT	04/2019 - 12/2999	1
44783 - CLAMP, VACUUM HOSE
44783-12060	ZRE210..LHD..CVT	04/2019 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-12040	ZRE211..D,E,G;MZEA12,ZRE210..CVT	04/2019 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02130	ZRE210..CVT..PHL	08/2019 - 12/2999	1
89420H - SENSOR ASSY, VACUUM
89421-52020	ZRE211..D,E,G;ZRE210..CVT..(GCC,GEN,PHL,TH)	04/2019 - 12/2999	1
Common parts
90170-10042
90178-T0007
90178-T0018
90178-T0019
90179-06274
90466-T0019
94151-80600
94151-80800
Linked diagrams
1708
4702

ZRE210L-GEXGKM (2019)

(1908- )ZRE210..CVT..PHL
