Toyota Corolla/altis ZRE210 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-02L90	MZEA11,ZRE210,ZWE211..D..GCC PANASONIC,ID=510326,AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86145 - CONNECTOR, ANTENNA MALE
86145-52010	MZEA1#,ZWE211..GCC,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,G,N)..(GCC,PHL,SGP)	04/2019 - 12/2999	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-33060	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86190-12061	ZRE210..V MYANMAR SPEC	09/2020 - 01/2021	1
86190-12061	ZRE210..V CAMBODIA SPEC	09/2020 - 01/2021	1
86190-12060	ZRE210..V LAOS SPEC	08/2019 - 08/2020	1
86190-12061	ZRE210..V LAOS SPEC	09/2020 - 01/2021	1
86211 - BRACKET, RADIO, NO.1
86211-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86211-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86211-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86211-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86211-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86211-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86211-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86211-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86212-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86212-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86212-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86212-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-02570	ZRE210..V LAOS SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V CAMBODIA SPEC	08/2019 - 01/2021	1
86212-02570	ZRE210..V MYANMAR SPEC	08/2019 - 01/2021	1
86212-02590	MZEA11,ZRE210,ZWE211..D..GCC AUDIO-CD & *BT & USB & 4SPEAKER	04/2019 - 08/2021	1
86212-02600	MZEA1#,ZRE21#,ZWE211..GCC,TAIW	04/2019 - 12/2999	1
Common parts
90153-50015
91673-80616
Linked diagrams
5501
8603

ZRE210L-GEXDKV (2019)

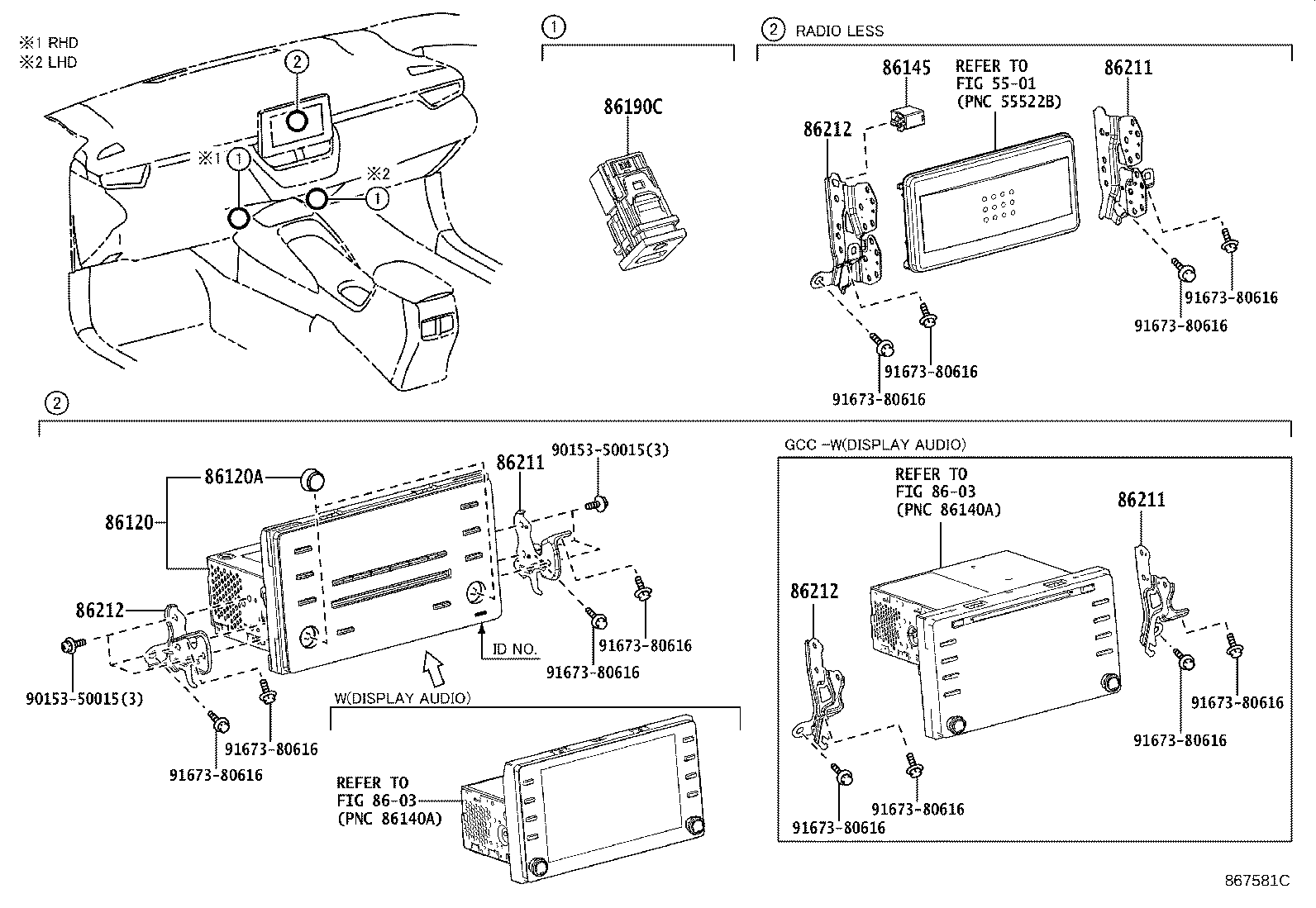

ILLUST NO. 1 OF 2(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

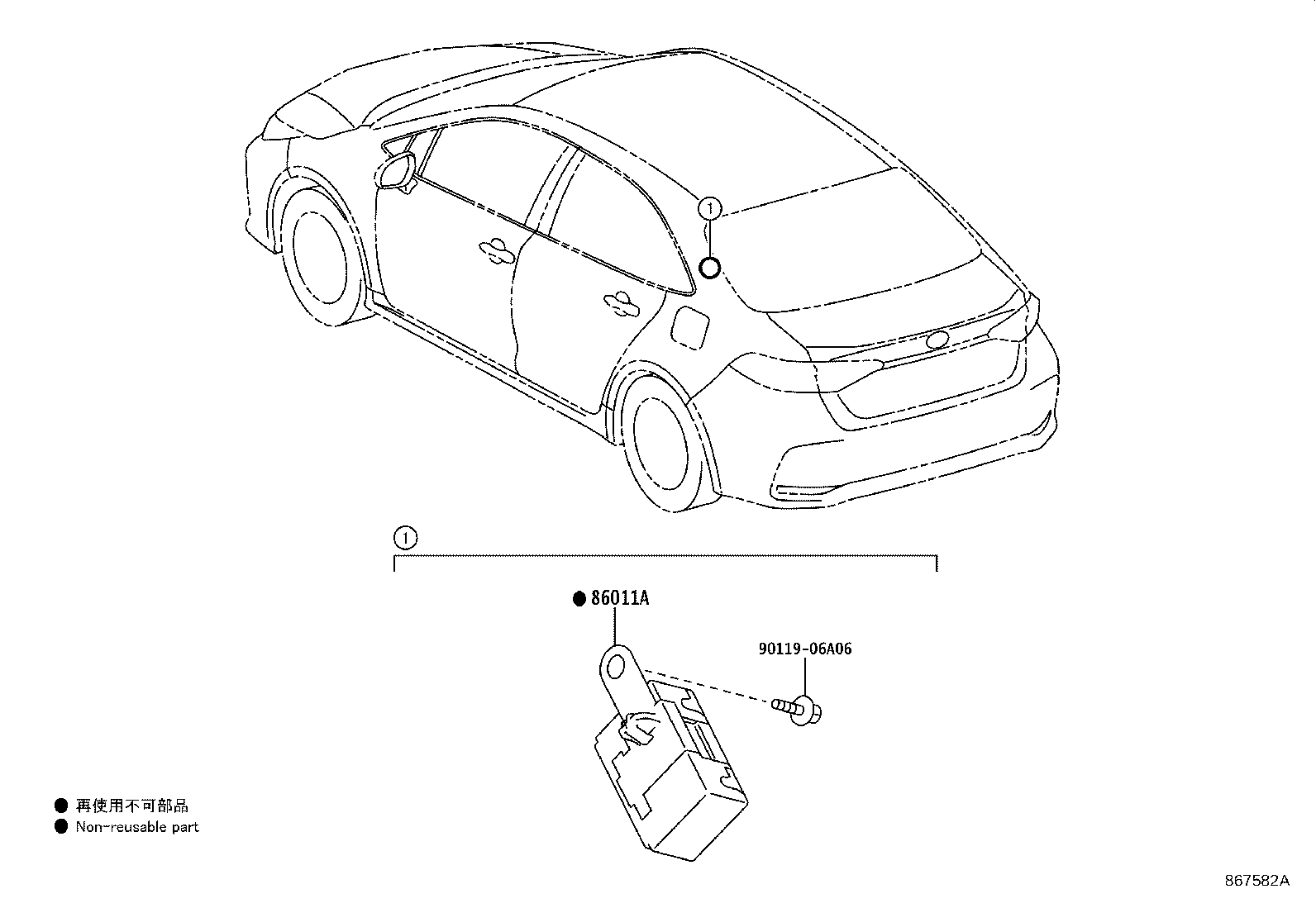

ILLUST NO. 2 OF 2(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Part Price Details

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04204	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90119-06A06
