ZRE210L-GEXDKV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

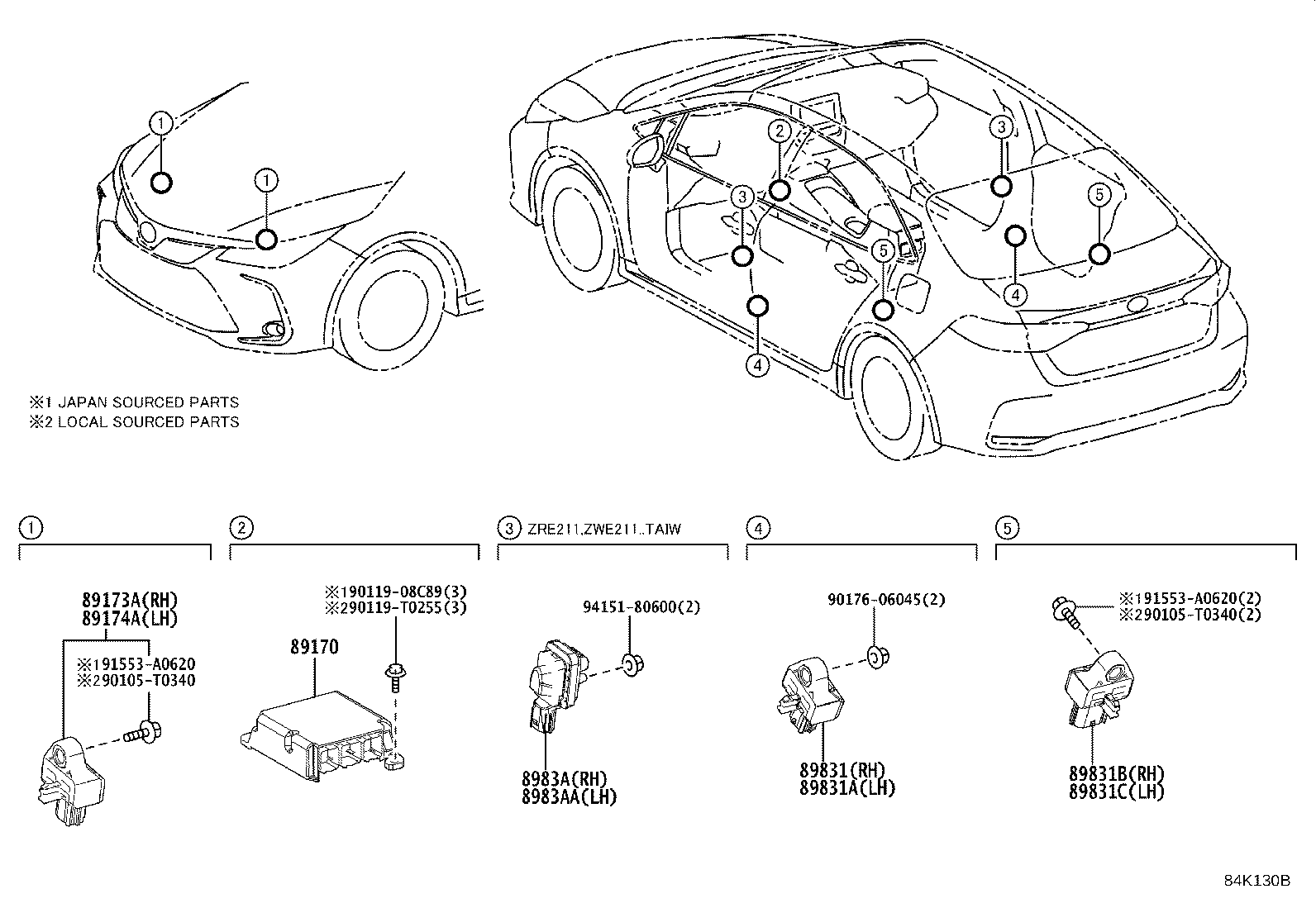

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89831 89831A 89831B 89831C 8983A 8983AA 90105T0340 90105T0340 9011908C89 90119T0255 9017606045 91553A0620 91553A0620 9415180600
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-02M50

MZEA1#,ZRE210..GCC

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49495

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49495

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
89831 - SENSOR, SIDE AIR BAG, RH, NO.1
89831-47050

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
89831A - SENSOR, SIDE AIR BAG, LH, NO.1
89831-47050

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
Common parts
90105-T0340
90119-08C89
90119-T0255
90176-06045
91553-A0620
94151-80600
