ZRE210L-GEXDKV (2019)
Toyota Corolla/Altis
Production
Apr 2019
-
Sep 9999
Engine
1ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

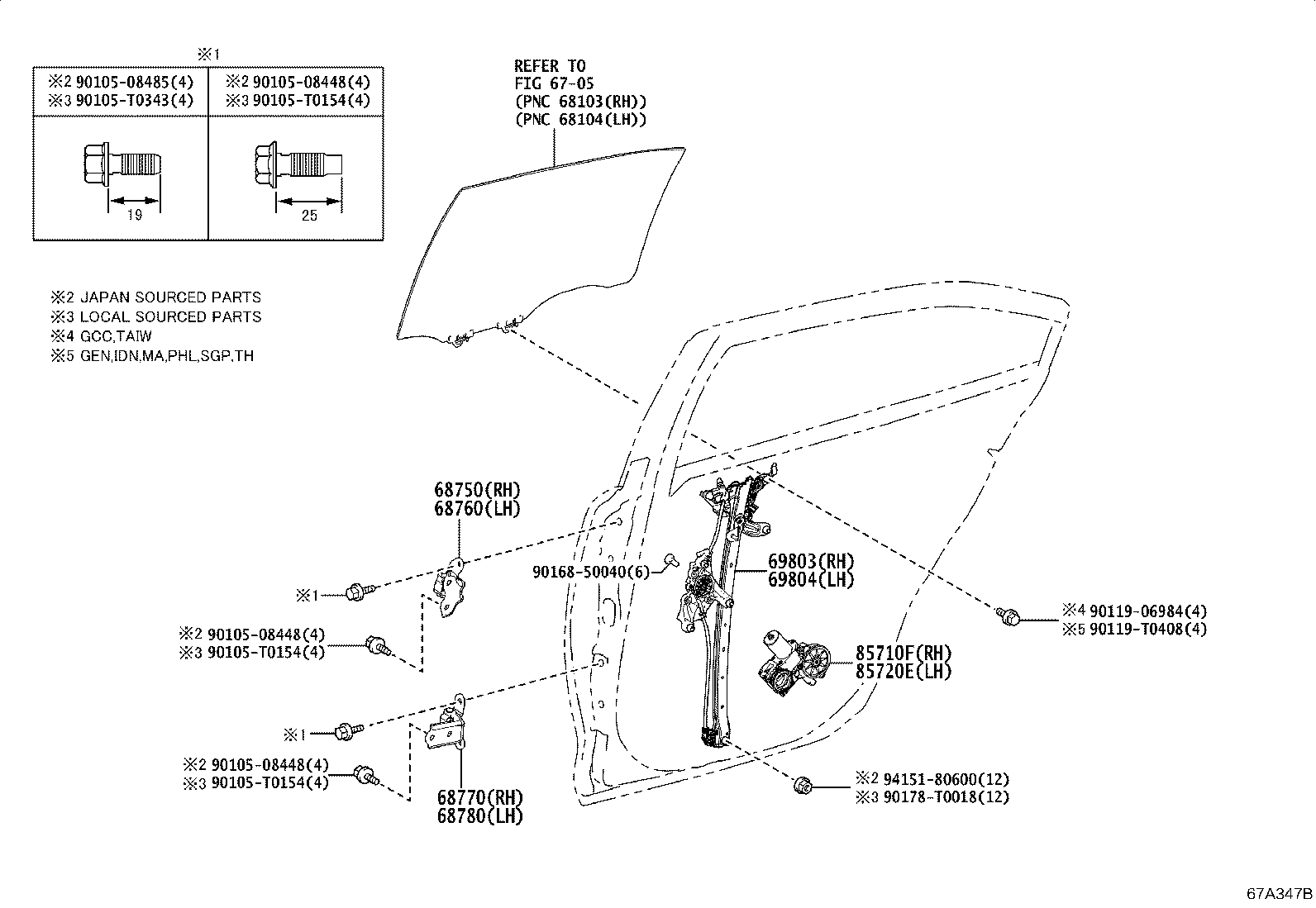

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-0D030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W/O(CCC MARK) |
1 | ||
| 68750-20122 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W(CCC MARK) |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-0D030 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W/O(CCC MARK) |
1 | ||
| 68760-20122 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W(CCC MARK) |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-02100 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W/O(CCC MARK) |
1 | ||
| 68770-33050 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W(CCC MARK) |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-33050 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W(CCC MARK) |
1 | ||
| 68780-02100 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW W/O(CCC MARK) |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-02400 |
MZEA12,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 69803-02401 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-02400 |
MZEA12,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 69804-02401 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-02700 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-02750 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90105-T0154 | ||||
| 90105-T0343 | ||||
| 90119-06984 | ||||
| 90119-T0408 | ||||
| 90168-50040 | ||||
| 90178-T0018 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 6705 | ||||
