ZRE210L-GEXDKV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

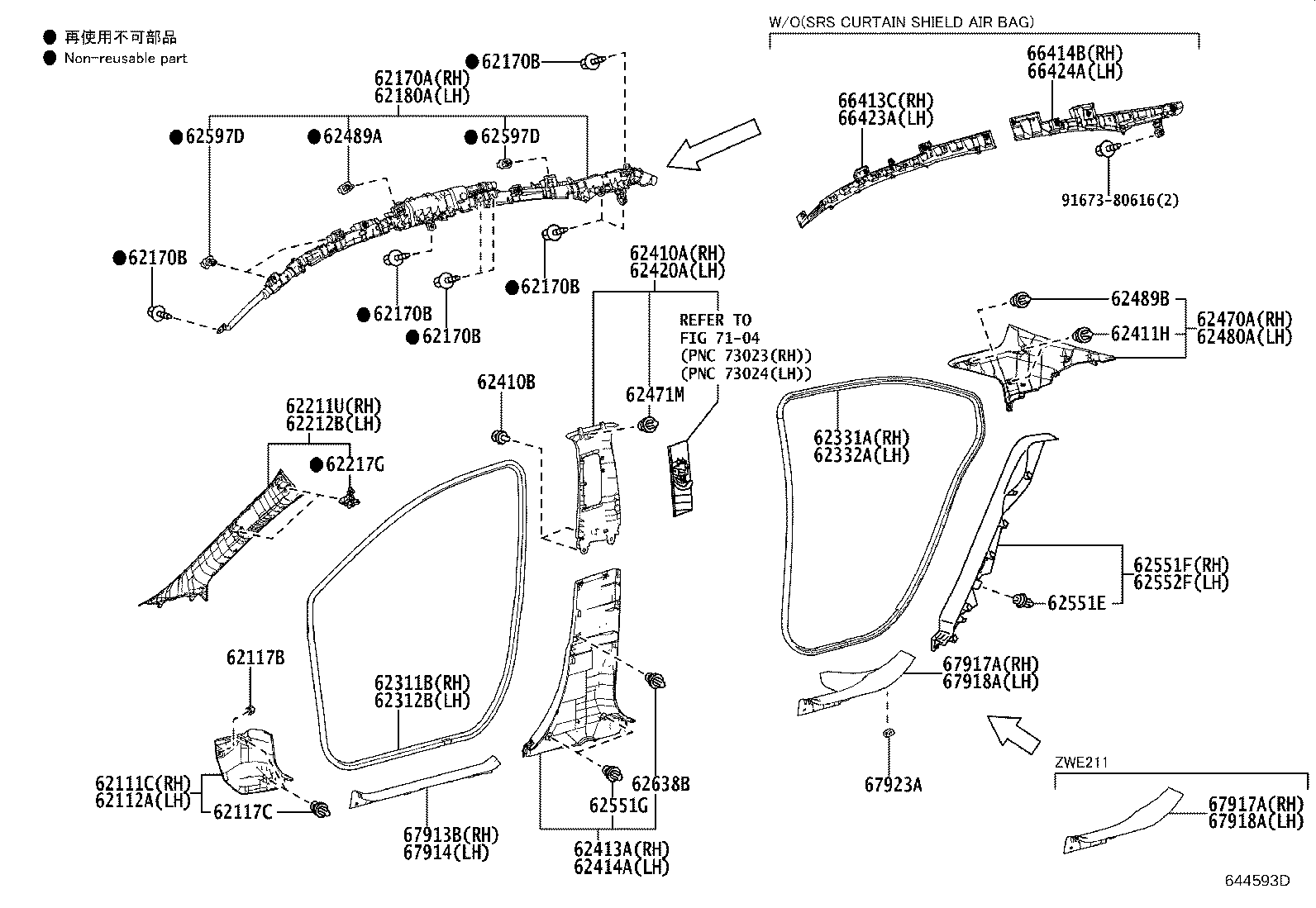

Click highlighted areas on diagram

diagram 62111C 62112A 62117B 62117C 62170A 62170B 62170B 62170B 62170B 62170B 62180A 62211U 62212B 62217G 62311B 62312B 62331A 62332A 62410A 62410B 62411H 62413A 62414A 62420A 62470A 62471M 62480A 62489A 62489B 62551E 62551F 62551G 62552F 62597D 62597D 62638B 66413C 66414B 66423A 66424A 67913B 67914 67917A 67917A 67918A 67918A 67923A 7104 9167380616
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-02440C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-02440C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-10167

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 4
62211U - GARNISH ASSY, FRONT PILLAR, RH
62210-02450A0

MZEA1#,ZRE210,ZWE211..GCC

FROMAGE,TRIM0#,1#

 1
62212B - GARNISH ASSY, FRONT PILLAR, LH
62220-02450A0

MZEA1#,ZRE210,ZWE211..GCC

FROMAGE,TRIM0#,1#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-42050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 4
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-02360

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-02370

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-02400

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-02400

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
62410A - GARNISH ASSY, CENTER PILLAR, RH
62410-02360C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62410B - CLIP
90467-10216

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 4
62411H - CLIP
90467-10161

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 4
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-02390C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-02390C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62420A - GARNISH ASSY, CENTER PILLER, LH
62420-02360C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-02690A0

MZEA1#,ZRE210,ZWE211..GCC

FROMAGE,TRIM0#,1#

 1
62471M - CLIP
90467-10167

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-02690A0

MZEA1#,ZRE210,ZWE211..GCC

FROMAGE,TRIM0#,1#

 1
62489B - CLIP, ROOF SIDE INNER GARNISH
90467-10161

MZEA1#,ZRE210,ZWE211..GCC

 2
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
62217-13010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-02750C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62551G - CLIP
90467-09236

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 4
62552F - GARNISH, REAR SEAT SIDE, LH
62552-02830C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
62638B - CLIP
90467-10161

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
66413C - SPACER, SIDE RAIL, FRONT RH
66413-02270

MZEA1#,ZRE210,ZWE211..GCC

 1
66414B - SPACER, SIDE RAIL, REAR RH
66414-02340

MZEA1#,ZRE210,ZWE211..GCC

 1
66423A - SPACER, SIDE RAIL, FRONT LH
66423-02270

MZEA1#,ZRE210,ZWE211..GCC

 1
66424A - SPACER, SIDE RAIL, REAR LH
66424-02310

MZEA1#,ZRE210,ZWE211..GCC

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-02430C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-02430C0

MZEA1#,ZRE210,ZWE211..GCC

BLACK,TRIM0#,1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-02500C0

MZEA1#,ZRE210..GCC

BLACK,TRIM0#,1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-02500C0

MZEA1#,ZRE210..GCC

BLACK,TRIM0#,1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-02520C0

MZEA1#,ZRE210..GCC

BLACK,TRIM0#,1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-02520C0

MZEA1#,ZRE210..GCC

BLACK,TRIM0#,1#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-20090

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
Common parts
91673-80616
Linked diagrams
7104
