ZRE210L-GEXDKV (2019)
Toyota Corolla/Altis
Production
Apr 2019
-
Sep 9999
Engine
1ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

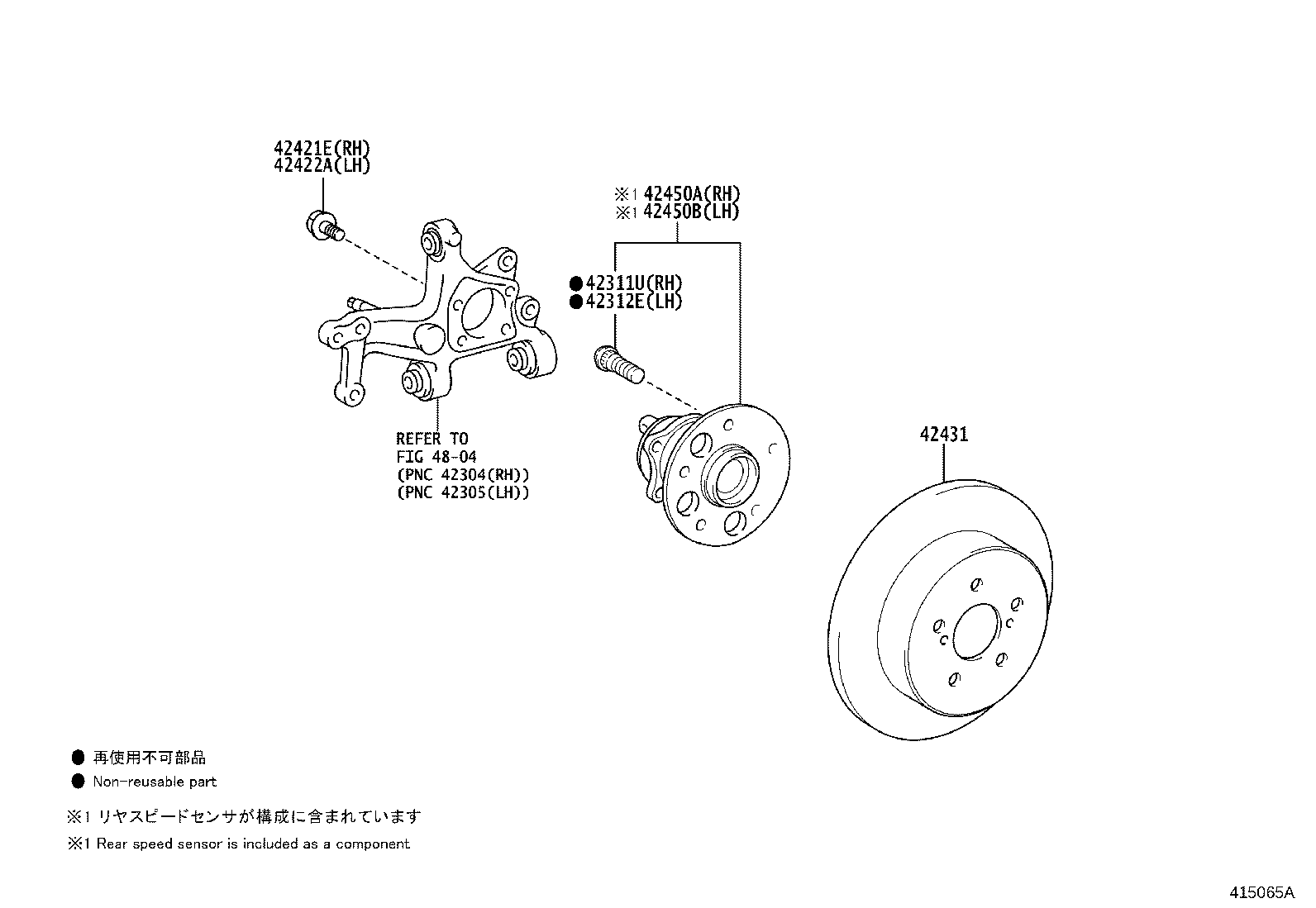

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-02110 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-02320 |
MZEA1#,ZRE21#,ZWE211..GCC,TAIW |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
