ZRE210L-GEFEKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

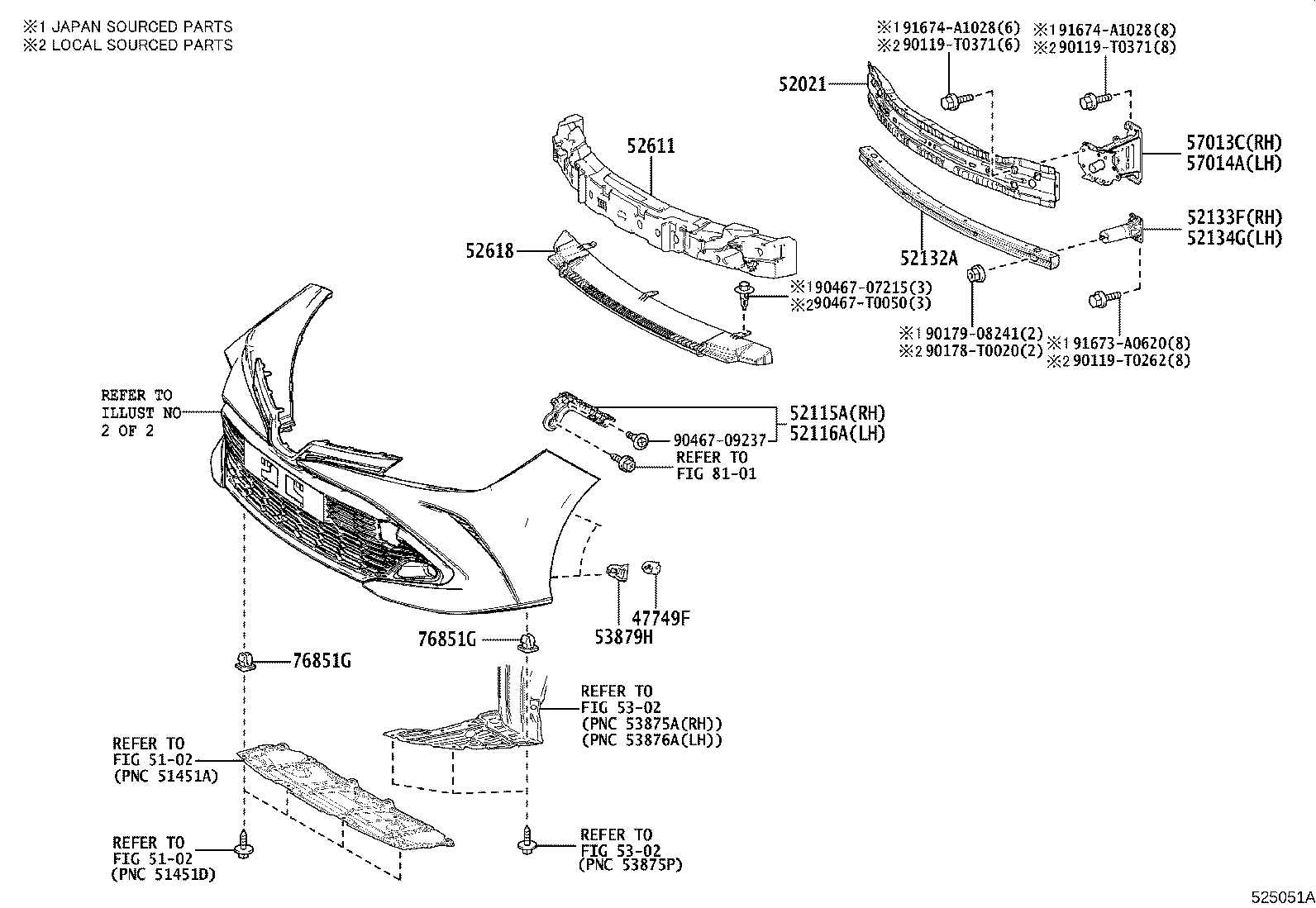

ILLUST NO. 1 OF 2(2004- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Click highlighted areas on diagram

GR SPORT

diagram 47749F 5102 5102 52021 52115A 52116A 52132A 52133F 52134G 52611 52618 5302 5302 53879H 57013C 57014A 76851G 76851G 8101 90119T0262 90119T0371 90119T0371 90178T0020 9017908241 9046707215 9046709237 90467T0050 91673A0620 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 4
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02320

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02510

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02500

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02560

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 4
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02210

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02210

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
76851G - GROMMET, SCREW, NO.1
90189-06237

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(J)

 4
90189-T0024

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(L)

 4
76851G - GROMMET, SCREW, NO.1
90189-06237

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(J)

 4
90189-T0024

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(L)

 4
Common parts
90119-T0262
90119-T0371
90178-T0020
90179-08241
90467-07215
90467-09237
90467-T0050
91673-A0620
91674-A1028
Linked diagrams
5102
5302
8101

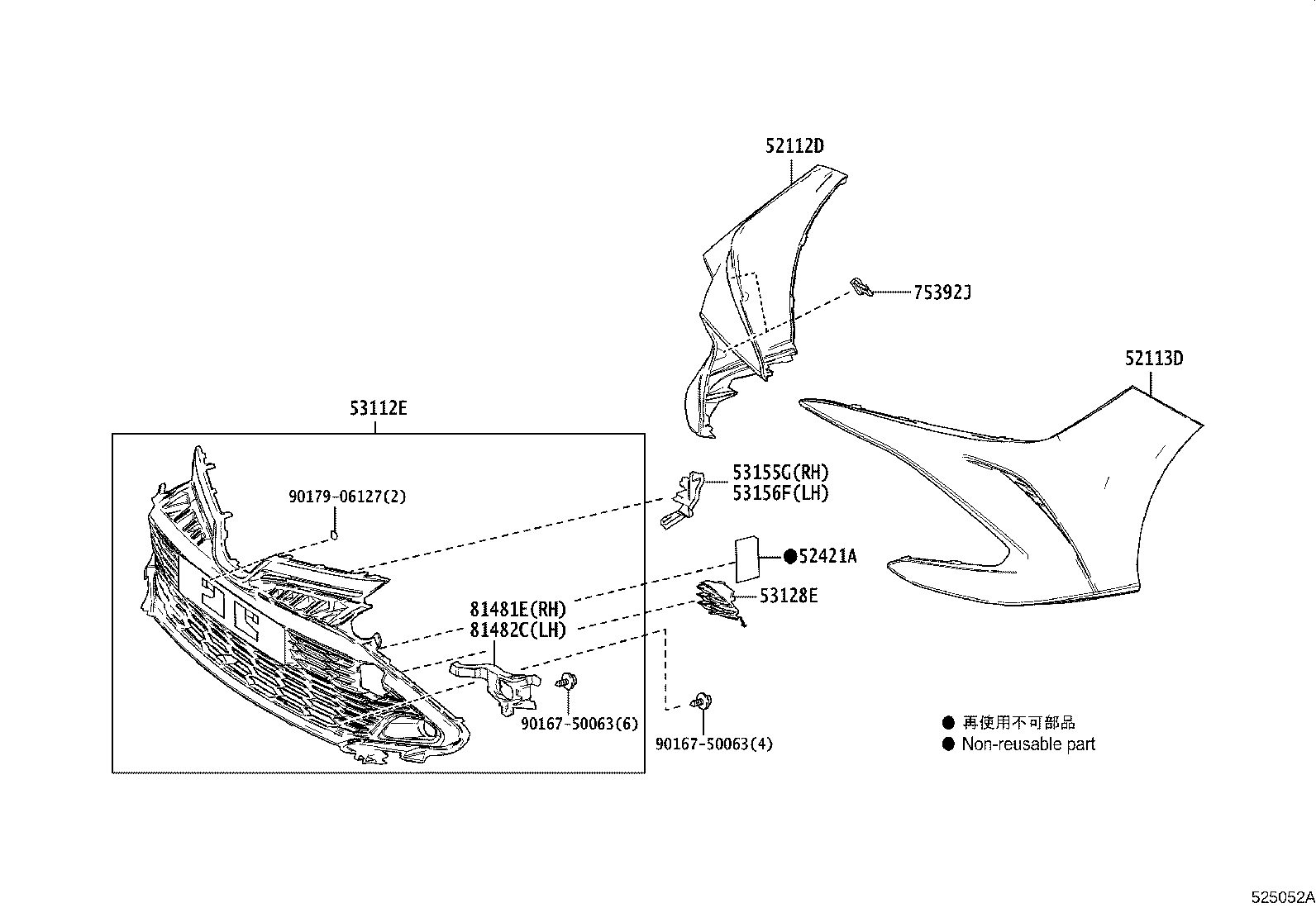

ILLUST NO. 2 OF 2(2004- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

Click highlighted areas on diagram

GR SPORT

diagram 52112D 52113D 52421A 53112E 53128E 53155G 53156F 75392J 81481E 81482C 9016750063 9016750063 9017906127
Part # Description Qty Price
52421A - PAD, FRONT BUMPER
52421-02110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02B80

ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
53128E - GRILLE, RADIATOR, LOWER SIDE LH
53128-02250

ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
Common parts
90167-50063
90179-06127
