ZRE210L-GEFEKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )6F

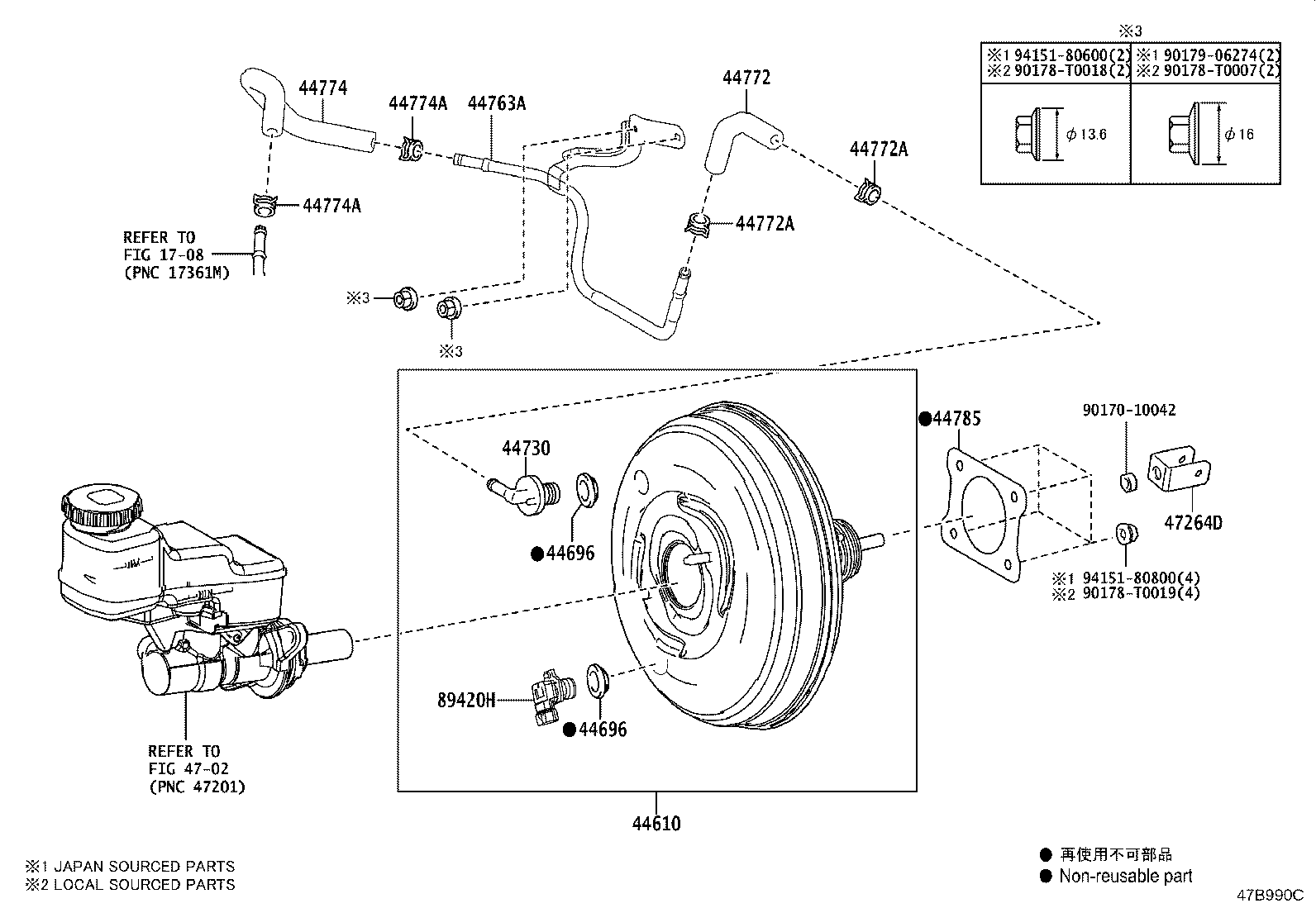

Click highlighted areas on diagram

diagram 1708 44610 44696 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 47264D 89420H 9017010042 90178T0007 90178T0018 90178T0019 9017906274 9415180600 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-02G70

ZRE210..6F

 1
44610-02G60

ZRE210..G..PHL

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ZRE210..6F

 2
44696 - GROMMET, CHECK VALVE
90480-24015

ZRE210..6F

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

ZRE210..6F

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-02330

ZRE210..6F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02260

ZRE210..6F

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-T0019

ZRE210..6F

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-T0019

ZRE210..6F

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12A30

ZRE210..6F

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

ZRE210..6F

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90466-T0019

ZRE210..6F

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ZRE210..6F

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-02090

ZRE210..6F

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

ZRE210..6F

 1
Common parts
90170-10042
90178-T0007
90178-T0018
90178-T0019
90179-06274
94151-80600
94151-80800
Linked diagrams
1708
4702
