ZRE210L-GEFDKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

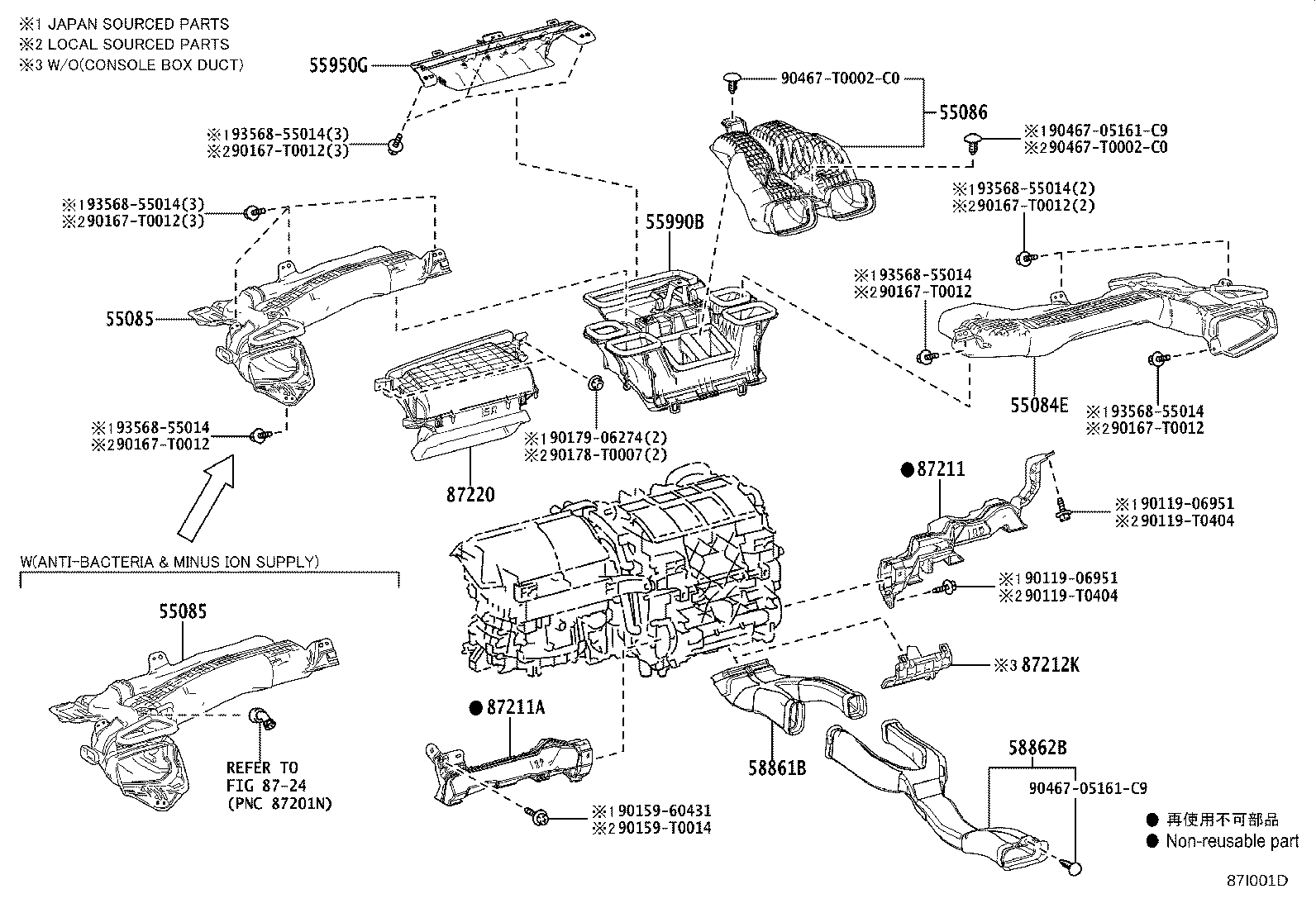

ILLUST NO. 2 OF 3(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55085 55086 55950G 55990B 58861B 58862B 87211 87211A 87212K 87220 8724 9011906951 9011906951 90119T0404 90119T0404 9015960431 90159T0014 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90178T0007 9017906274 9046705161C9 9046705161C9 90467T0002C0 90467T0002C0 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02660

ZRE210..6F

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02220

ZRE210..6F

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02220

ZRE210..6F

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-02630

ZRE210..6F

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02500

ZRE210..6F

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02330

ZRE210..6F

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-02030

ZRE210..E..PHL

LAOS SPEC

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-02050

ZRE210..E..PHL

LAOS SPEC

 1
87211 - DUCT, AIR, NO.1
87211-02630

ZRE210..6F

 1
87211A - DUCT, AIR, NO.2
87211-02640

ZRE210..6F

 1
87212K - DUCT, AIR, REAR NO.6
87114-F4090

ZRE210..6F

 1
87114-F4090

ZRE210..E..PHL

LAOS SPEC

 1
87220 - DUCT ASSY, AIR
87220-02390

ZRE210,ZWE211..PHL

 1
87220-02391

ZRE210..6F

 1
Common parts
90119-06951
90119-T0404
90159-60431
90159-T0014
90167-T0012
90178-T0007
90179-06274
90467-05161C9
90467-T0002C0
93568-55014
Linked diagrams
8724

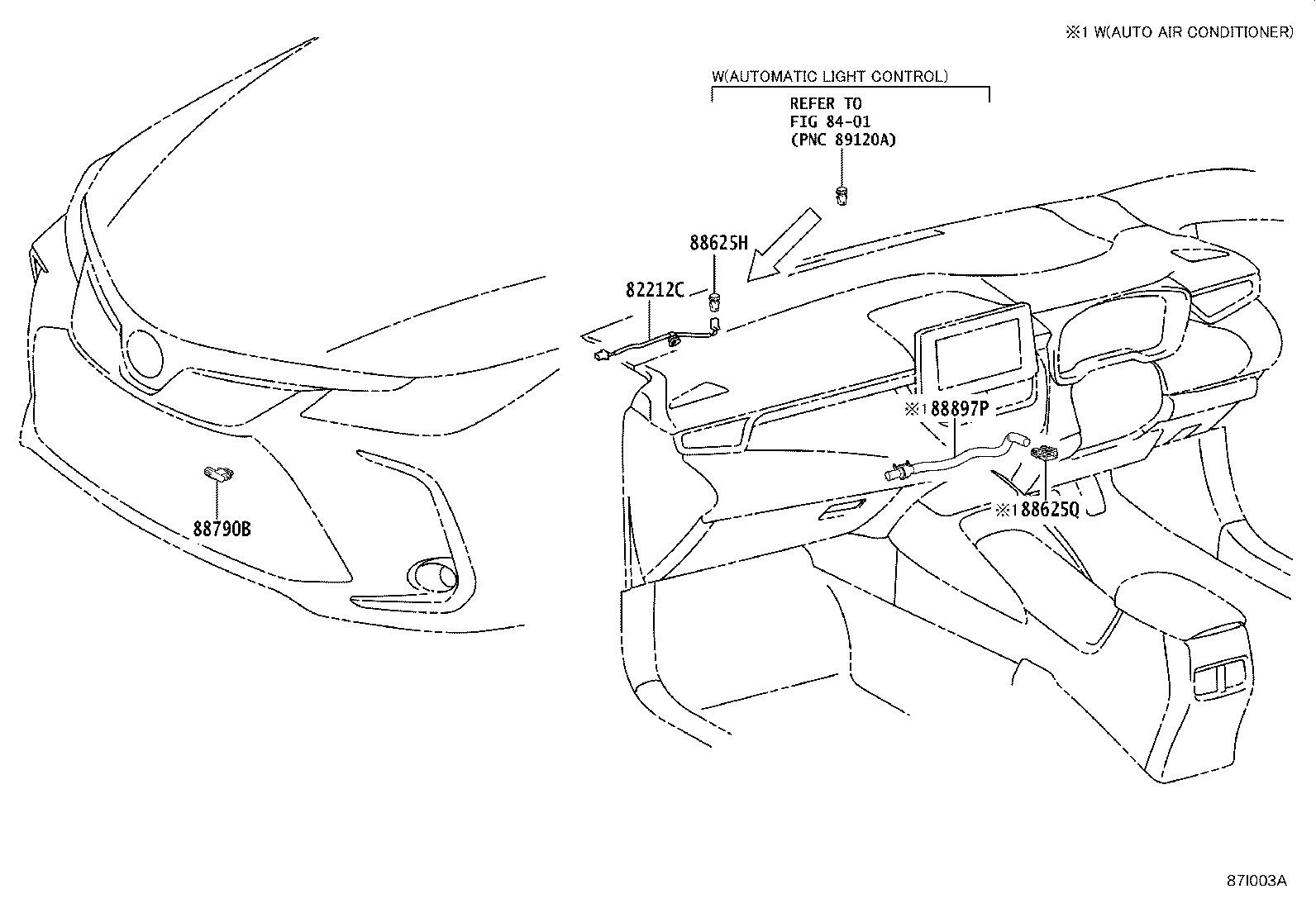

ILLUST NO. 3 OF 3(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

SENSOR

diagram 82212C 8401 88625H 88625Q 88790B 88897P
Part # Description Qty Price
82212C - HARNESS, AIR CONDITIONER NO.1
82212-02610

ZRE210..E..PHL

 1
82212-02610

ZRE210..G..PHL

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

ZWE211..GCC;ZRE210..G..(PHL,TH)

 1
88625-52130

ZRE210,ZWE211..E..(PHL,TH)

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZWE211..MA;ZRE210,ZWE211..E..(PHL,TH)

 1
88790B - THERMISTOR ASSY
88790-28100

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
88897P - ASPIRATOR
88505-02240

ZRE210..E..PHL

 1
Linked diagrams
8401
