ZRE210L-GEFDKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

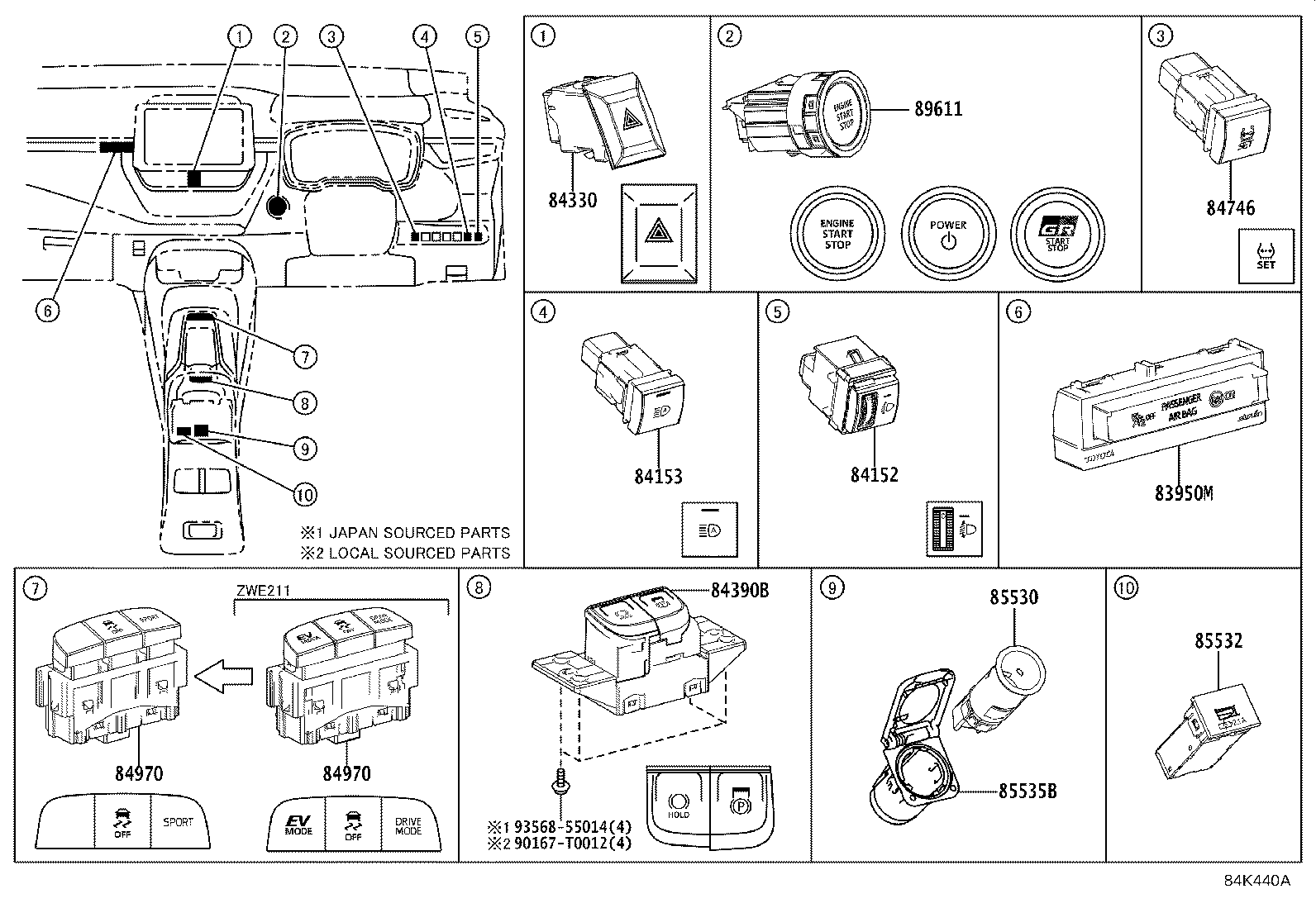

ILLUST NO. 5 OF 9(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 83950M 84152 84153 84330 84390B 84746 84970 84970 85530 85532 85535B 89611 90167T0012 9356855014
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-02150

ZRE210..6F;ZWE211..MA

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02410

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
84970 - SWITCH ASSY, COMBINATION
84970-02450

ZRE210..6F

 1
84970 - SWITCH ASSY, COMBINATION
84970-02450

ZRE210..6F

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
85535-F4010

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 1
Common parts
90167-T0012
93568-55014

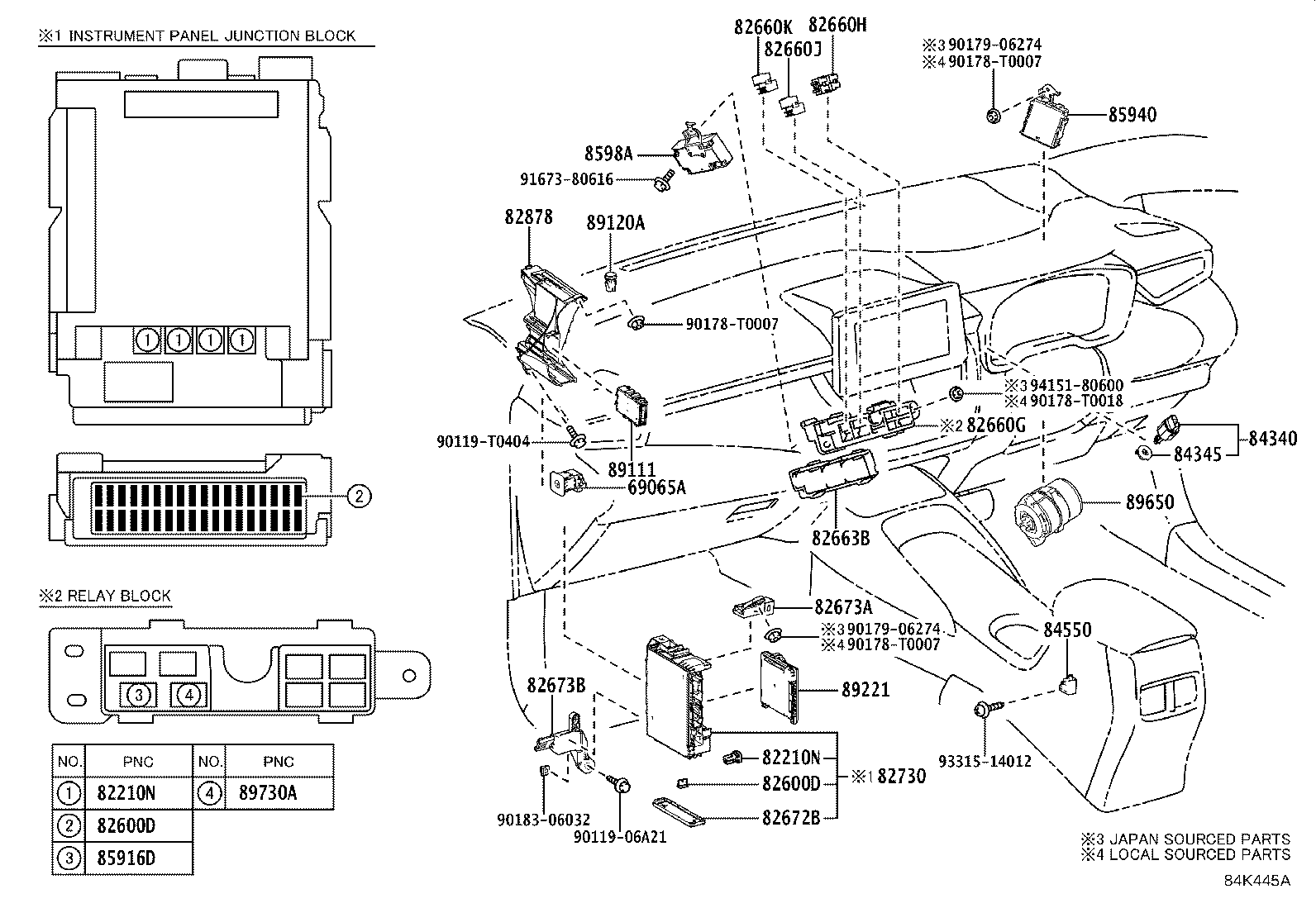

ILLUST NO. 4 OF 9(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

COWL

diagram 69065A 82210N 82210N 82600D 82600D 82660G 82660H 82660J 82660K 82663B 82672B 82673A 82673B 82730 82878 84340 84345 84550 85916D 85940 8598A 89111 89120A 89221 89650 89730A 9011906A21 90119T0404 90178T0007 90178T0007 90178T0007 90178T0018 9017906274 9017906274 9018306032 9167380616 9331514012 9415180600
Part # Description Qty Price
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

30A,TERM.:FEMALE,PNK

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

30A,TERM.:FEMALE,PNK

 1
82600D - INSTRUMENT PANEL FUSE
90982-09019

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

5A,MINI FUSE,TAN

 1
90982-09020

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

7.5A,MINI FUSE,BROWN

 1
90982-09022

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

15A,MINI FUSE,BLUE

 1
90982-09023

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

20A,MINI FUSE,YELLOW

 1
90982-09021

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

10A,MINI FUSE,RED

 1
82600D - INSTRUMENT PANEL FUSE
90982-09019

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

5A,MINI FUSE,TAN

 1
90982-09020

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

7.5A,MINI FUSE,BROWN

 1
90982-09022

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

15A,MINI FUSE,BLUE

 1
90982-09023

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

20A,MINI FUSE,YELLOW

 1
90982-09021

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

10A,MINI FUSE,RED

 1
82660G - BLOCK ASSY, RELAY
82660-12460

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82660H - BLOCK ASSY, RELAY
82660-08020

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82660J - BLOCK ASSY, RELAY
82660-0C110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82660K - BLOCK ASSY, RELAY
82660-52010

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82663B - COVER, RELAY BLOCK, LOWER, NO.3
82663-12150

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82672B - COVER, JUNCTION BLOCK
82672-02150

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
82673A - BRACKET, JUNCTION BLOCK
82673-02280

ZRE210..6F

 1
82673B - BRACKET, JUNCTION BLOCK
82673-02290

ZRE210..6F

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-0Z160

ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
84340 - SWITCH ASSY, STOP LAMP
84340-09380

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02040

ZRE210..6F

(L)

 1
84550-33010

ZRE210..G..PHL

(J)

 1
84550-33010

ZRE210..6F

(J)

 1
84550-02040

ZRE210..G..PHL

(L)

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12230

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
89111 - COMPUTER, NETWORK GATEWAY
89111-02080

ZRE210..6F

 1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89220-0Z640

ZRE210..6F

 1
89220-0Z650

ZRE210..G..PHL

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-12M30

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

JTEKT/DENSO

 1
89650-12K80

MZEA12,ZRE21#,ZWE211

JTEKT/DENSO

 1
89730A - RELAY(FOR SECURITY WARNING)
90987-02027

ZRE210,ZWE211..(D,E)..(PHL,TH)

(J)

 1
90987-T2001

ZRE210,ZWE211..(D,E)..(PHL,TH)

(L)

 1
Common parts
90119-06A21
90119-T0404
90178-T0007
90178-T0018
90179-06274
90183-06032
91673-80616
93315-14012
94151-80600
