ZRE210L-GEFDKM (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

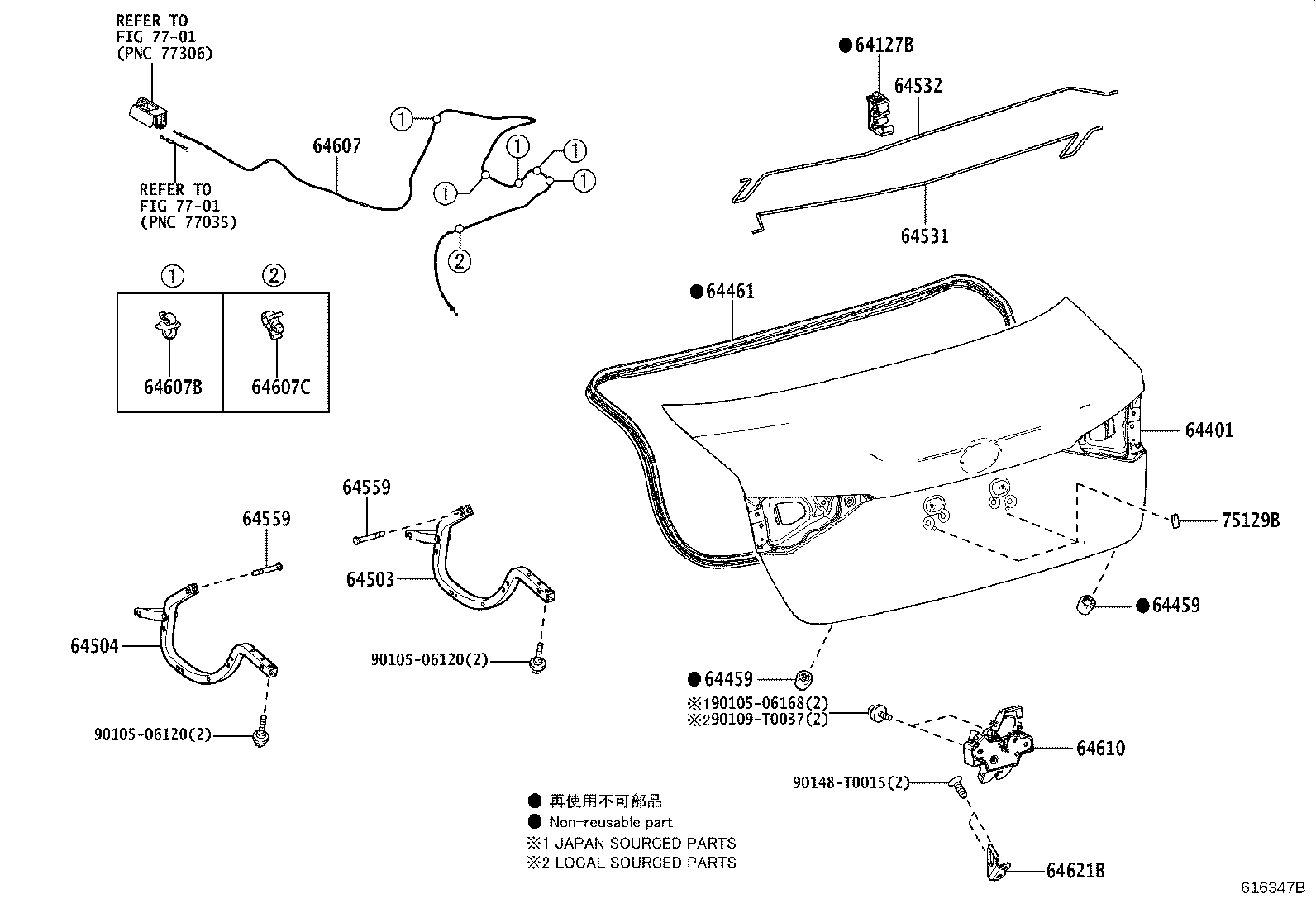

diagram 64127B 64401 64459 64459 64461 64503 64504 64531 64532 64559 64559 64607 64607B 64607C 64610 64621B 75129B 7701 7701 9010506120 9010506120 9010506168 90109T0037 90148T0015
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33071

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-02F40

ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64401-02F50

ZRE210..G..PHL

CAMBODIA SPEC

 1
64401-02F50

ZRE210..G..PHL

MYANMAR SPEC

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-02310

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-02230

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-02230

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-02590

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-02590

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-02510

ZRE210..6F

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-02080

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-06080

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-21010

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
Common parts
90105-06120
90105-06168
90109-T0037
90148-T0015
Linked diagrams
7701
