ZRE173R-GEXGKE (2016)

Toyota Corolla/Altis

Production Nov 2016 - Mar 2017
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703-)IND ; (1709- )VN

Click highlighted areas on diagram

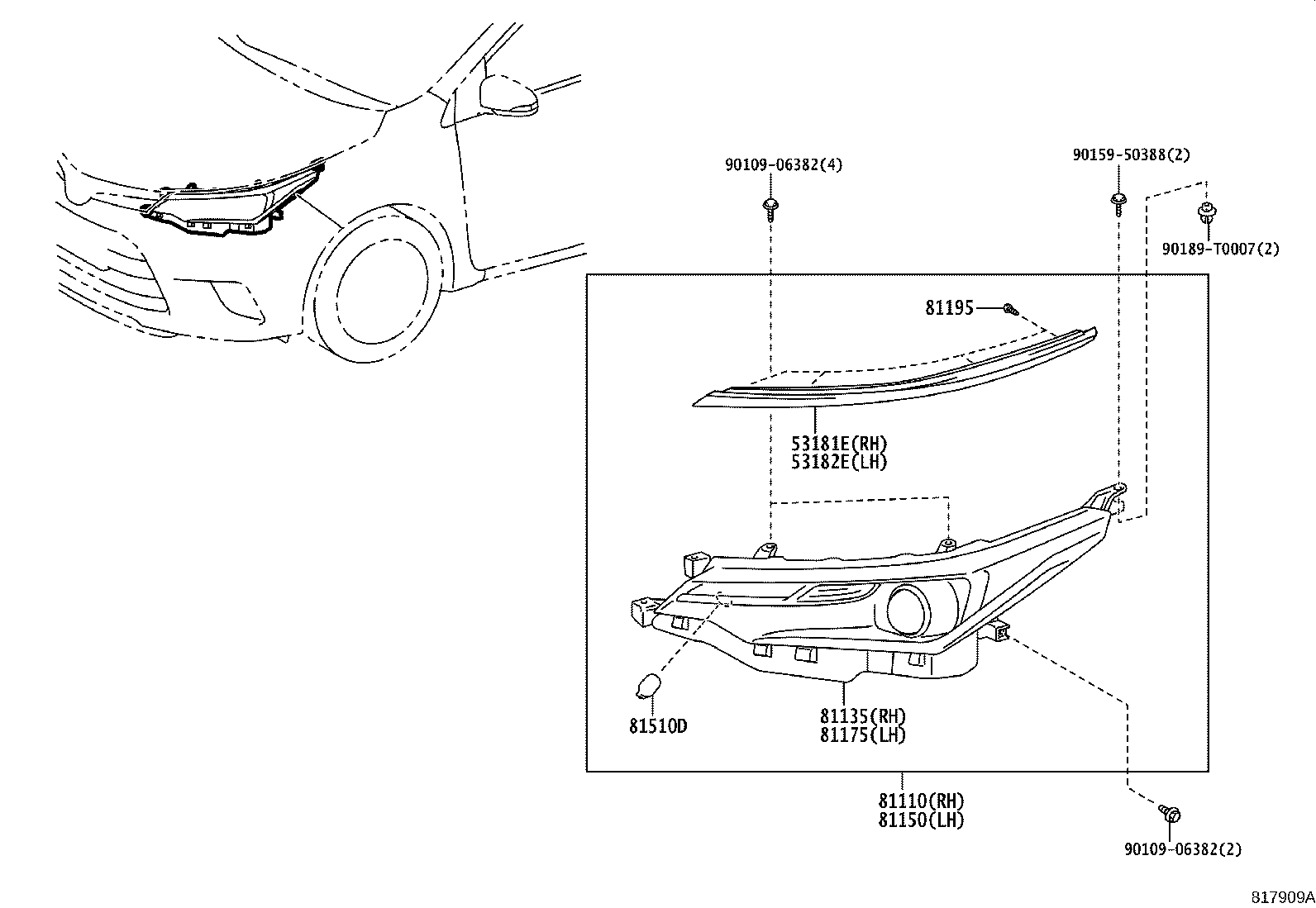

LED HEADLAMP

diagram 53181E 53182E 81110 81135 81150 81175 81195 81510D 9010906382 9010906382 9015950388 90189T0007
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
53182E - COVER, HEADLAMP, LH
53182-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
Common parts
90109-06382
90159-50388
90189-T0007

(1611- )ARL,GEN,IDN,MA,PHL,SGP,TH ; (1703-)IND ; (1709- )VN

Click highlighted areas on diagram

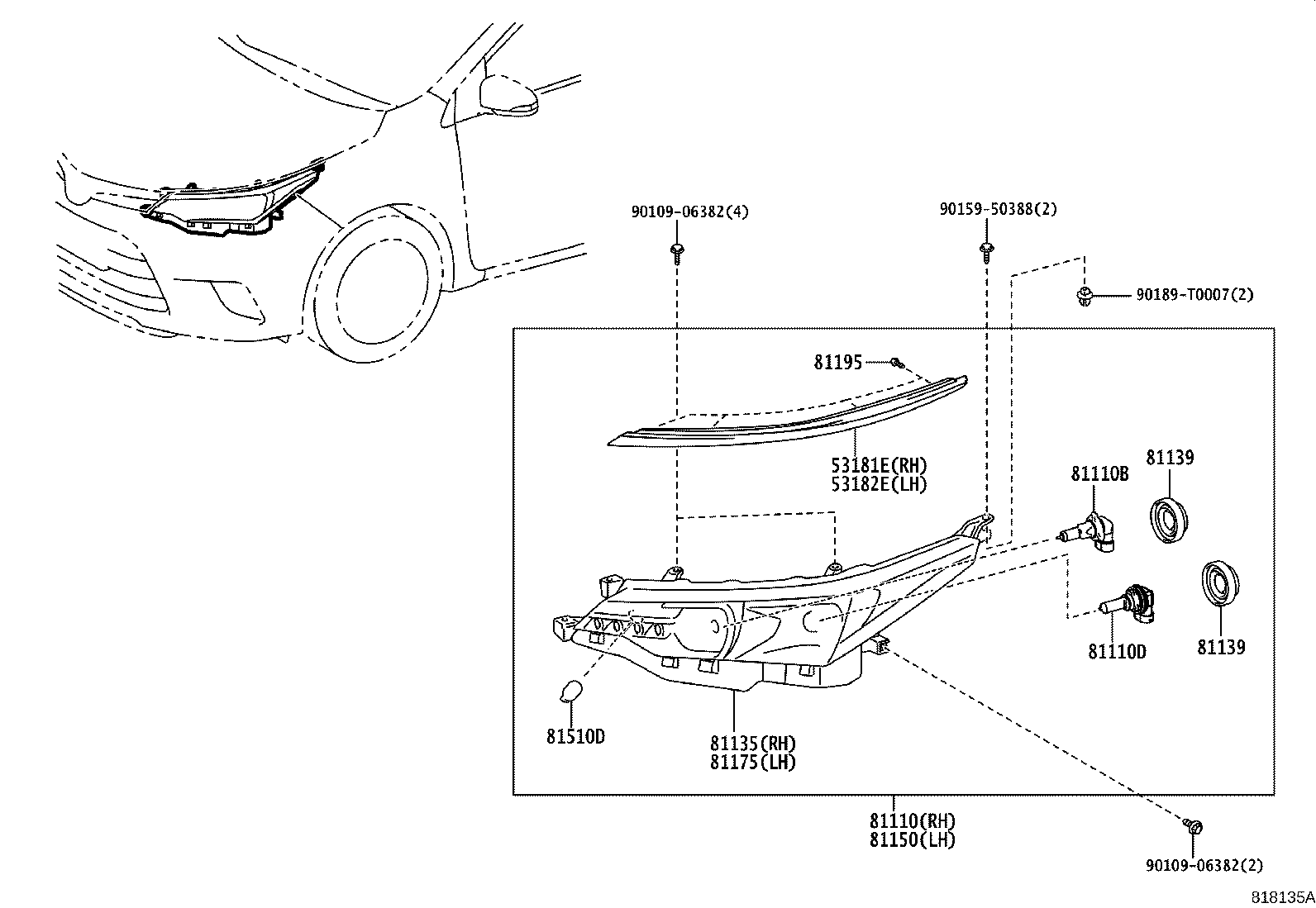

HALOGEN HEADLAMP

diagram 53181E 53182E 81110 81110B 81110D 81135 81139 81139 81150 81175 81195 81510D 9010906382 9010906382 9015950388 90189T0007
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
53182E - COVER, HEADLAMP, LH
53182-02070

ZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ZRE172..ARL..(D,N);NZE170,ZRE171..GEN,PHL,PKN,TH;NDE170,ZRE172,173..RHD..(18E,18G,20G,G,J)

12V 55W,HALOGEN

 2
Common parts
90109-06382
90159-50388
90189-T0007
