ZRE173R-GEXGKE (2013)
Toyota Corolla/Altis

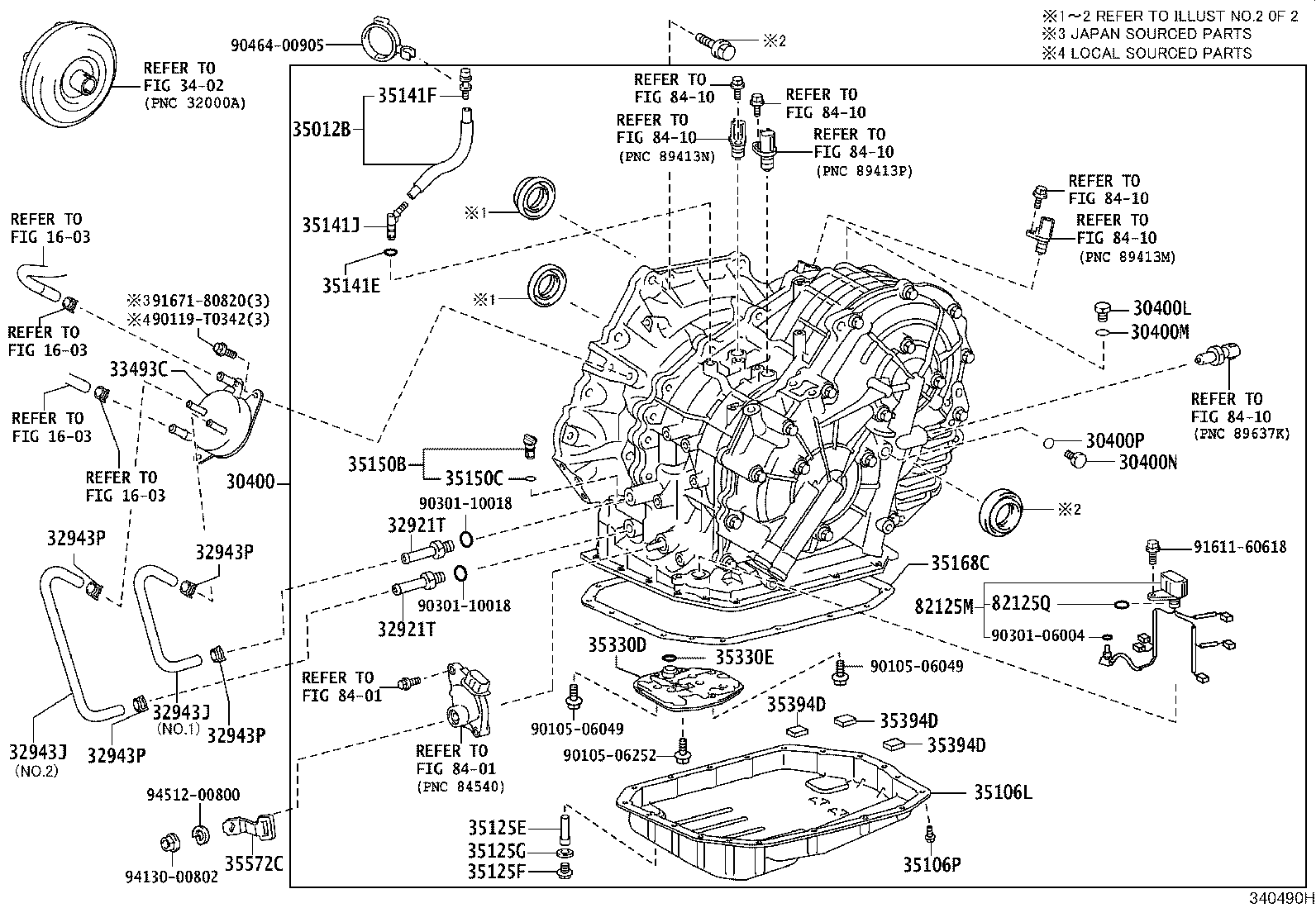

ILLUST NO. 1 OF 2(1312- )20G,20V
K111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 32921T - CONNECTOR, TUBE | ||||
| 90404-13010 |
ZRE173..MA,PHL |
2 | ||
| 90404-13004 |
ZRE173..CVT |
2 | ||
| 32921T - CONNECTOR, TUBE | ||||
| 90404-13010 |
ZRE173..MA,PHL |
2 | ||
| 90404-13004 |
ZRE173..CVT |
2 | ||
| 32943J - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-02460 |
ZRE173..MA,PHL NO.2:REFER ILLUST. |
1 | ||
| 32943-02450 |
ZRE173..MA,PHL NO.1:REFER ILLUST. |
1 | ||
| 32943J - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-02460 |
ZRE173..MA,PHL NO.2:REFER ILLUST. |
1 | ||
| 32943-02450 |
ZRE173..MA,PHL NO.1:REFER ILLUST. |
1 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-T0016 |
ZRE173..MA,PHL |
4 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-T0016 |
ZRE173..MA,PHL |
4 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-T0016 |
ZRE173..MA,PHL |
4 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-T0016 |
ZRE173..MA,PHL |
4 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-20031 |
ZRE173..CVT |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-44070 |
ZRE173..CVT |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE173..CVT |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90105-06252 | ||||
| 90119-T0342 | ||||
| 90301-06004 | ||||
| 90301-10018 | ||||
| 90464-00905 | ||||
| 91611-60618 | ||||
| 91671-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8401 | ||||
| 8410 | ||||

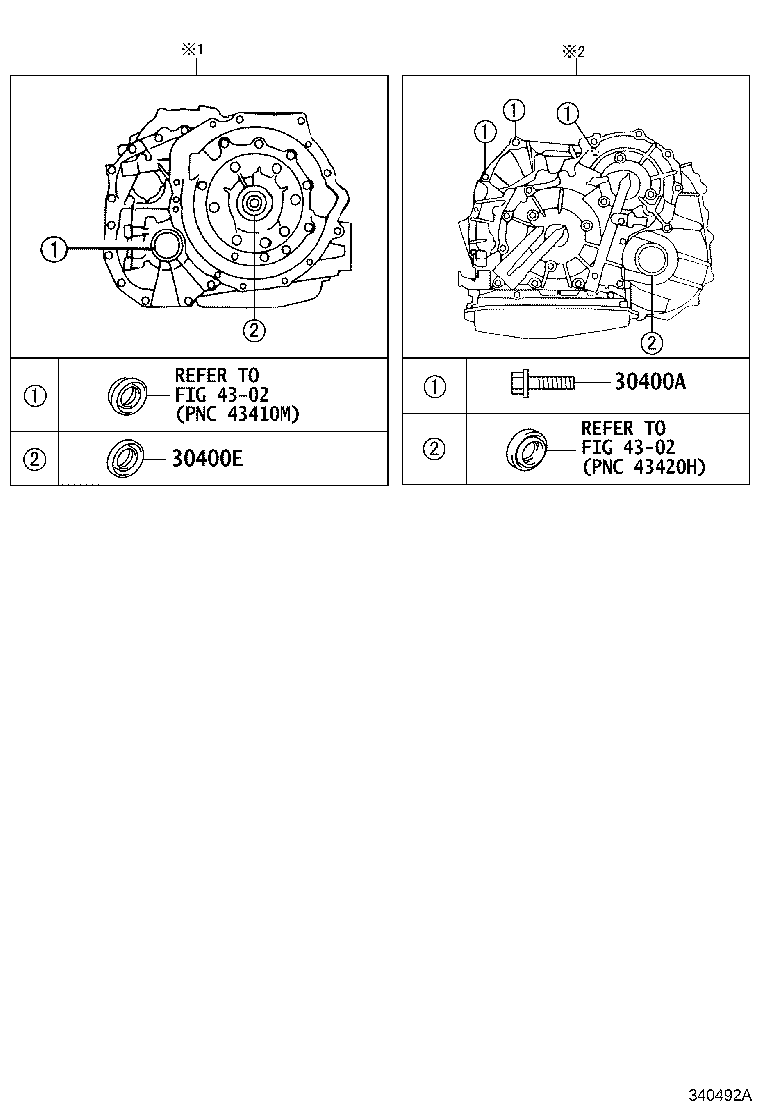

ILLUST NO. 2 OF 2(1312- )ZRE173..CVT
K111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 1 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-20031 |
ZRE173..CVT |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-44070 |
ZRE173..CVT |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE173..CVT |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| Common parts | ||||
| 90464-00905 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||
ILLUST NO. 2 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90250-10017 | ||||
| 90301-06004 | ||||
| 90301-06024 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91611-40614 | ||||
| 91611-B0616 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||
| 8410 | ||||
ILLUST NO. 3 OF 3(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80645 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4302 | ||||
