ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

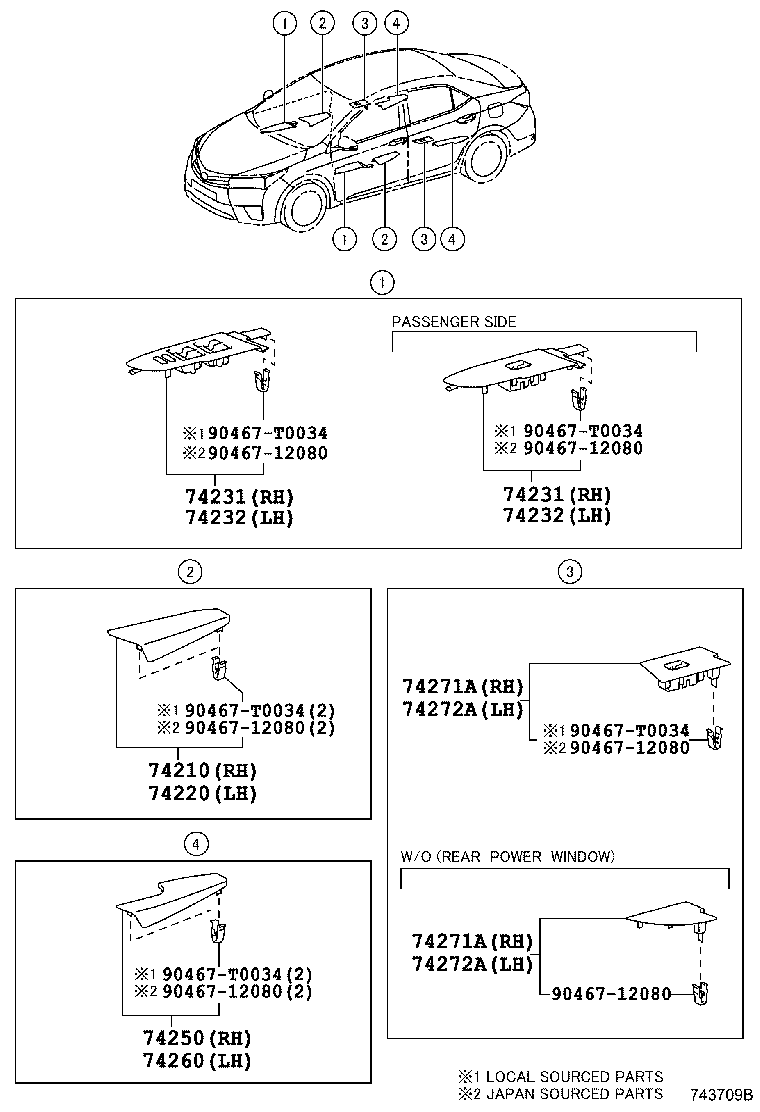

ILLUST NO. 1 OF 2(1310- )

Click highlighted areas on diagram

ARMREST

diagram 74210 74220 74231 74231 74232 74232 74250 74260 74271A 74271A 74272A 74272A 9046712080 9046712080 9046712080 9046712080 9046712080 9046712080 90467T0034 90467T0034 90467T0034 90467T0034 90467T0034
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-02340C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-02310C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
74250 - ARMREST ASSY, REAR RH
74250-02450C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
74260 - ARMREST ASSY, REAR LH
74260-02450C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
Common parts
90467-12080
90467-T0034

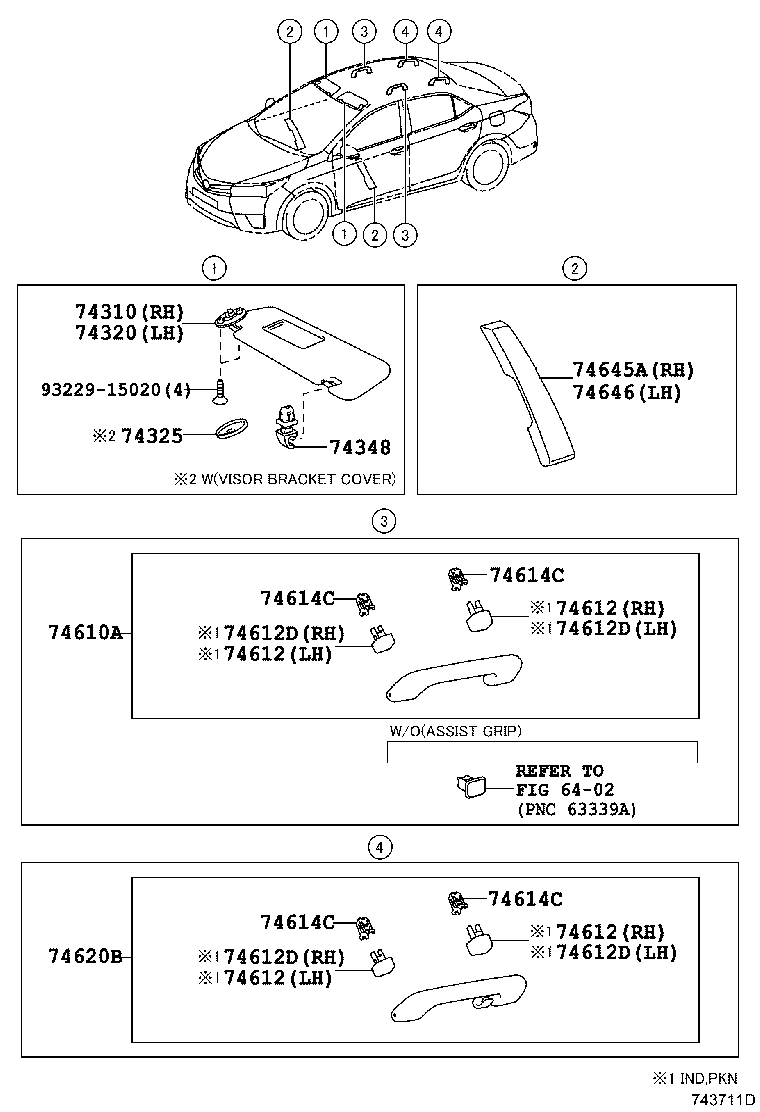

ILLUST NO. 2 OF 2(1310- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 6402 74310 74320 74325 74348 74610A 74612 74612 74612 74612 74612D 74612D 74612D 74612D 74614C 74614C 74614C 74614C 74620B 74645A 74646 9322915020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-02M11B0

ZRE172,173..CVT..VN

LT.GRAY,TRIM2#

 1
Common parts
93229-15020
Linked diagrams
6402
